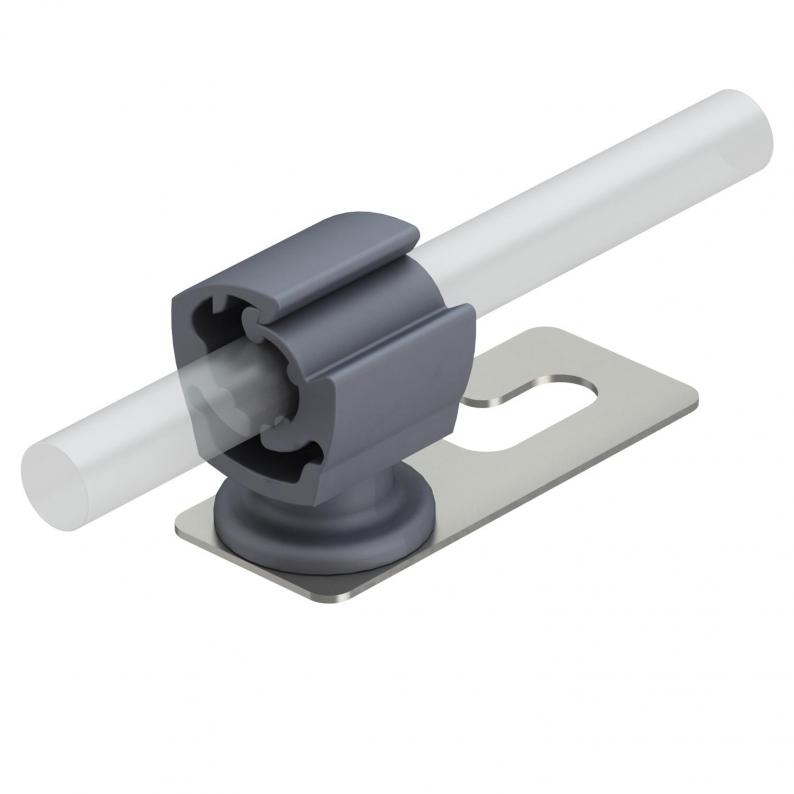

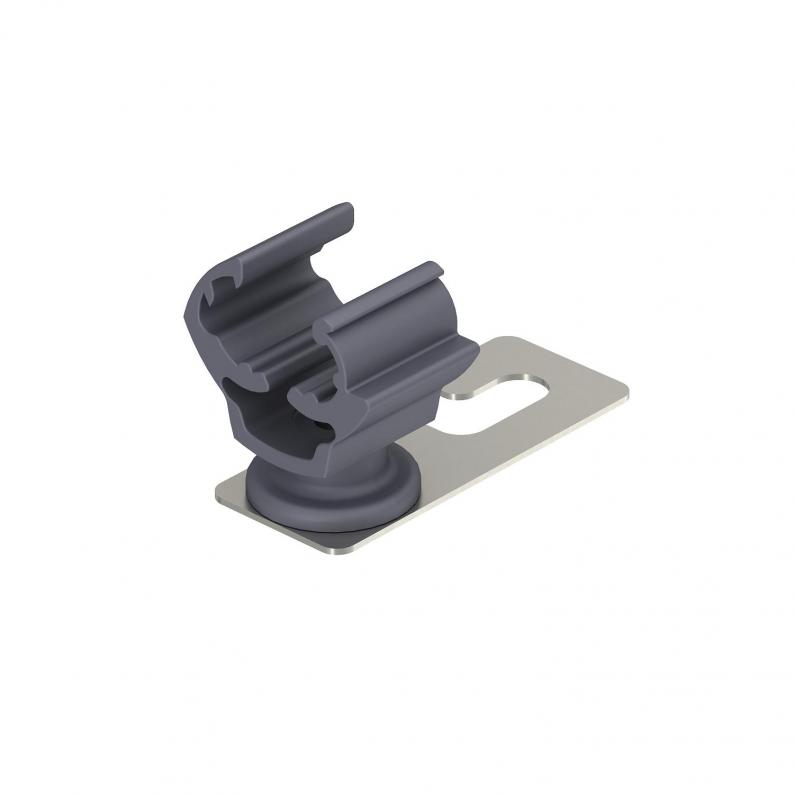

Roof conductor holder for tiled, slated and corrugated roofs, Rd 8−10

Type 159 K-VA

Item no. 5216818

EAN 4012195813255

Item no. / Type

5216818 / 159 K-VA

Smallest selling unit: 20 piece

piece

Description

• Bottom section stainless steel (V2A)
• Bottom section with Ø 8.5 mm slot
• Conductor holder of polyamide

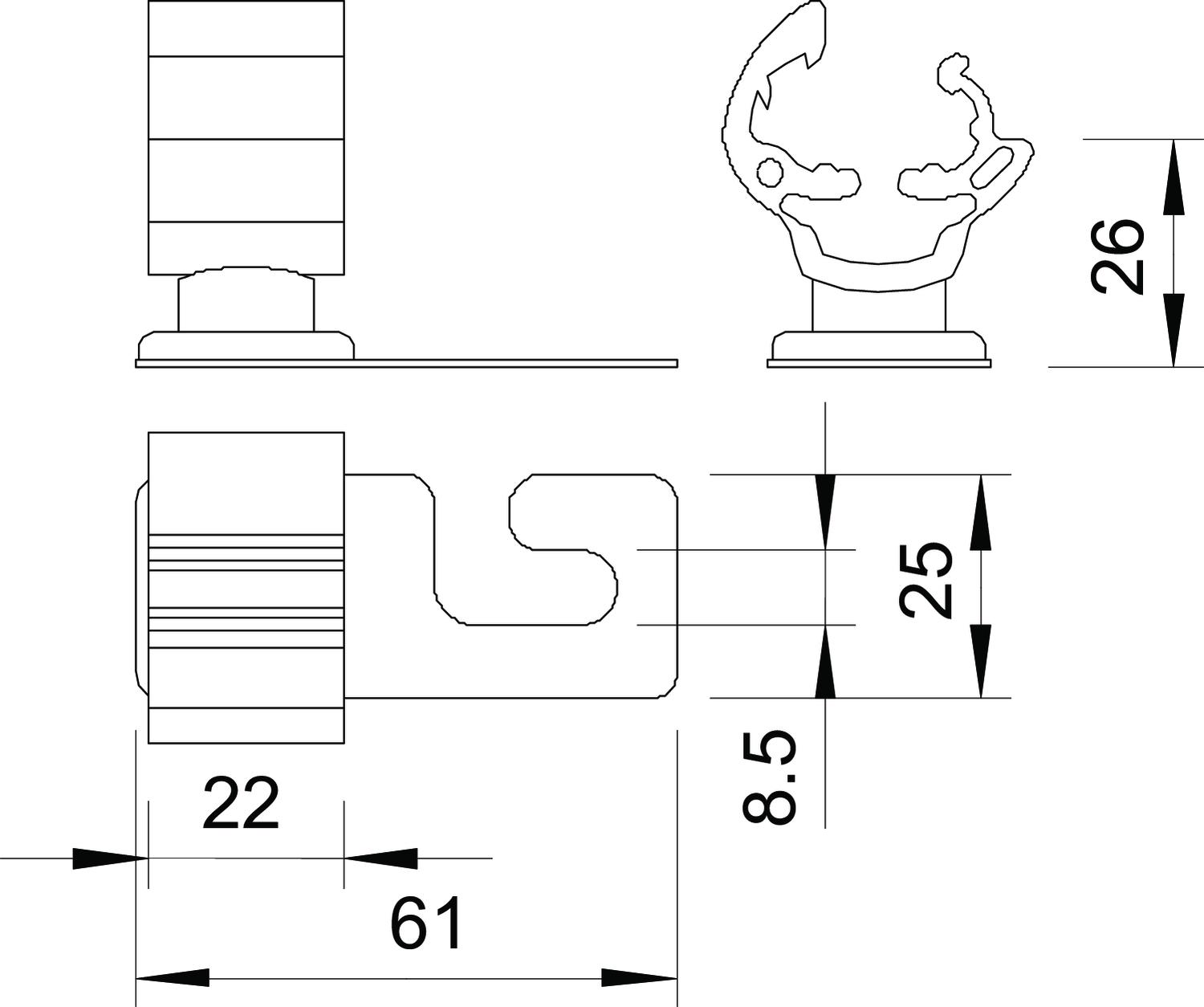

Mounting height	21 mm
Conductor diameter, min.	8
Conductor diameter, max.	10
Conductor fastening type	With clamp clip
Application	Corrugated roof
Mounting type	Screw-on
Fit	Rd 8-10 mm
Dimension	8-10mm
Material	Stainless steel 1.4301
CO2 Footprint (GWP) Cradle-to-Gate	0,1204 kg CO2e / 1 Piece
