Roof conductor holder for ridge tiles, 185−260 mm, Rd 8–10, A2
Type 132 K-VA
|Item no. 5202515
|EAN 4012195403036
Item no. / Type
5202515 / 132 K-VA
Mounting height
20 mm
Fit
Rd 8-10 mm
Smallest selling unit: 20 piece
20piece
piece
Description
132/..: Roof conductor holder for ridge tiles
• Adjustable width from 185-260 mm
• Bottom part made of non-rusting stainless steel (V2A)
or of copper
• Infinitely adjustable conductor holder
• Conductor holder of polyamide
• For round conductor Rd 8-10
• Fast installation using wing screw
• Adjustable width from 185-260 mm
• Bottom part made of non-rusting stainless steel (V2A)
or of copper
• Infinitely adjustable conductor holder
• Conductor holder of polyamide
• For round conductor Rd 8-10
• Fast installation using wing screw
Technical data

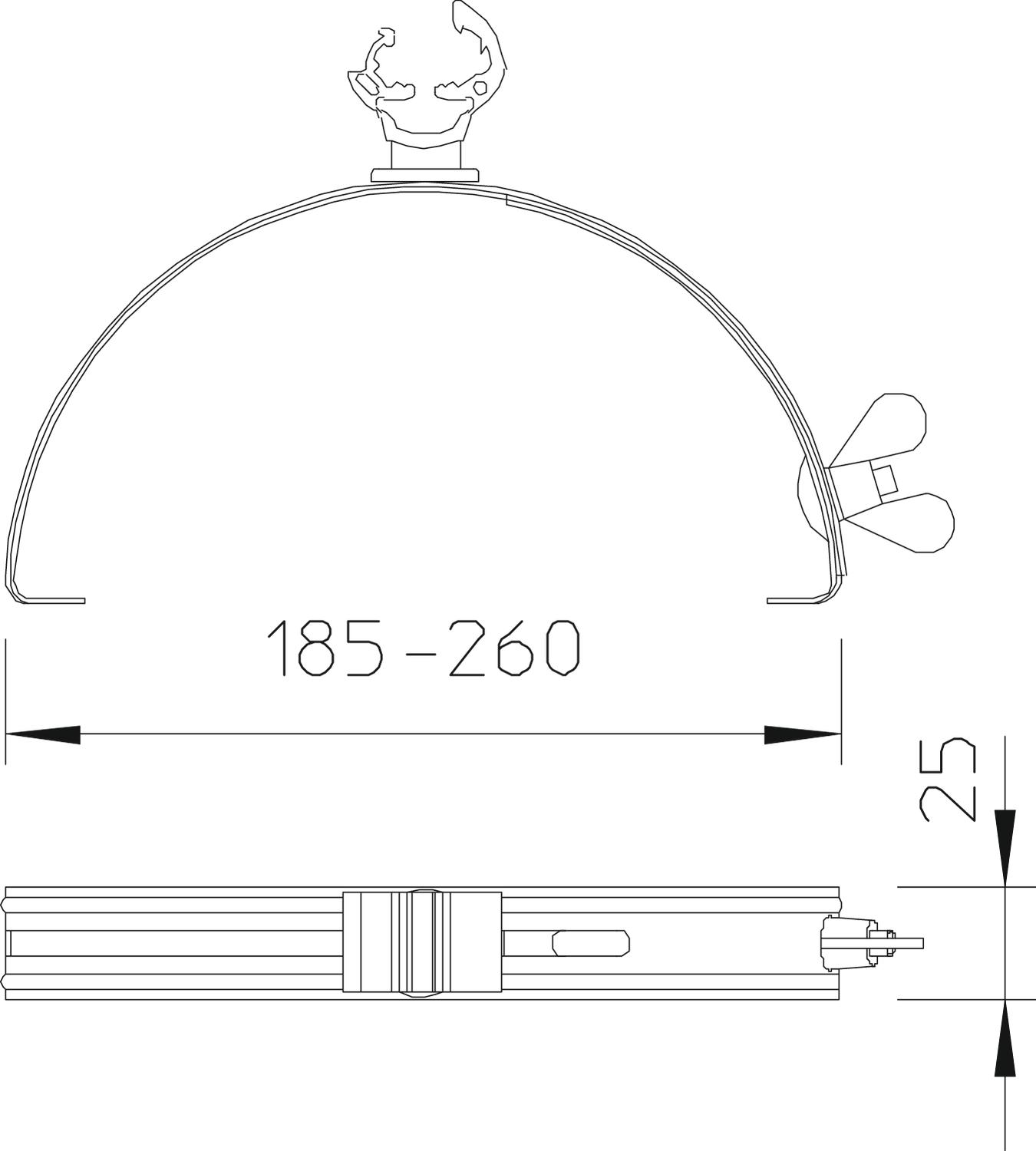

Dimensions
| Length | 25 mm |
|---|---|
| Height | 112 mm |
Technical data
| Mounting height | 20 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clamp clip |
| Application | Ridge |
| Mounting type | Tensionable |
| ROHS-conformant | yes |
| Fit | Rd 8-10 mm |
| Clamping range D, min. | 185 mm |
| Clamping range D, max. | 260 mm |
| Dimension | 8mm |
| Material | Stainless steel 1.4301 |
Environmental Data
0,5453 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5453 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,5453 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
