Reduction, single-sided, two-part 100 FS
Type GKSRL 100 150 FS
|Item no. 6480895
|EAN 4012195492177
Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description

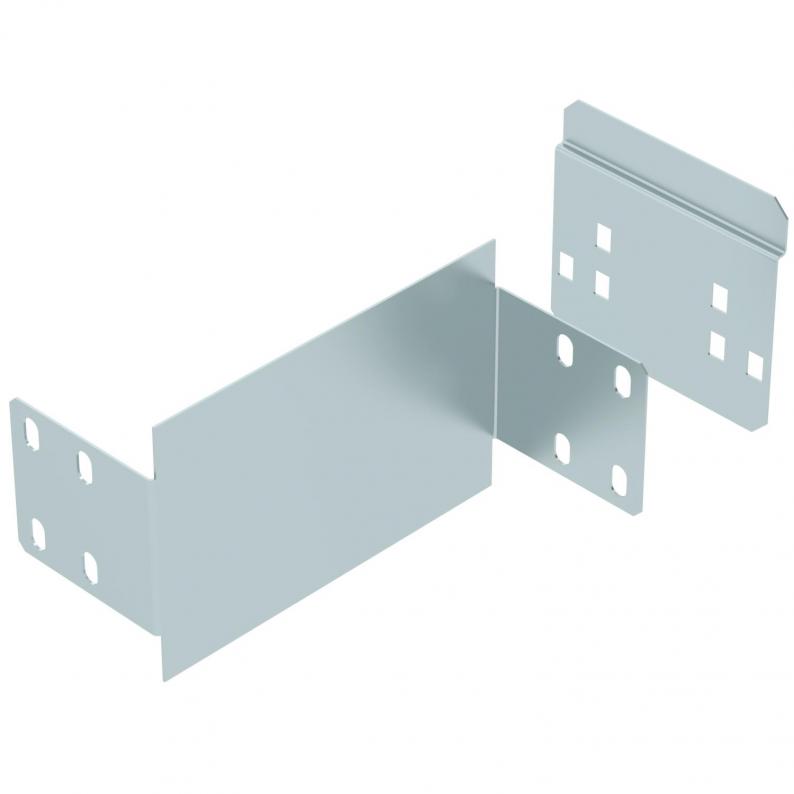

One-sided reducing bracket, 2-part for GKS... type cable trays with a side height of 100 mm.
Technical data

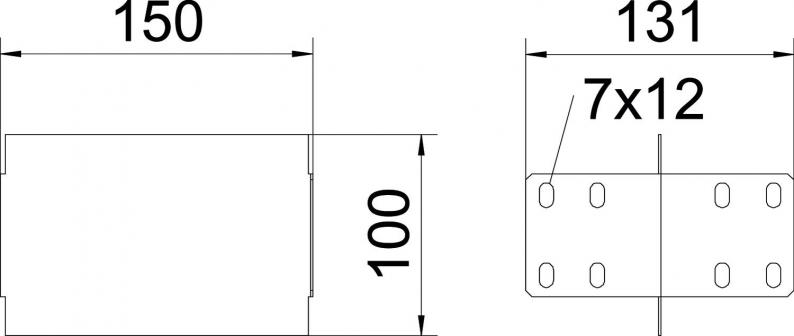

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension A | 100 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Dimension | 100x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Height
Item no.
GKSRL 100 150 FS
150
100
6480895
GKSRL 100 50 FS
50
100
6480897

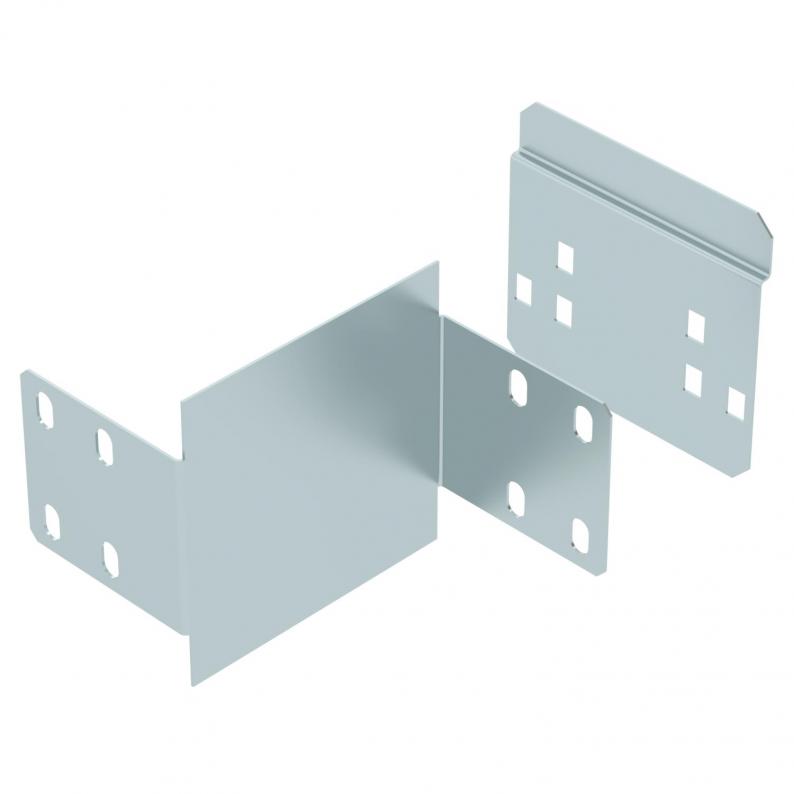

GKSRL 100 100 FS
100
100
6480899
GKSRL 100 200 FS
200
100
6480901
GKSRL 100 250 FS
250
100
6480903
GKSRL 100 300 FS
300
100
6480905
GKSRL 100 350 FS
350
100
6480907
GKSRL 100 400 FS
400
100
6480909
Width
GKSRL 100 150 FS
Item no.
6480895
Width
150
Height
100
GKSRL 100 50 FS
Item no.
6480897
Width
50
Height
100
GKSRL 100 100 FS
Item no.
6480899
Width
100
Height
100
GKSRL 100 200 FS
Item no.
6480901
Width
200
Height
100
GKSRL 100 250 FS
Item no.
6480903
Width
250
Height
100
GKSRL 100 300 FS
Item no.
6480905
Width
300
Height
100
GKSRL 100 350 FS
Item no.
6480907
Width
350
Height
100
GKSRL 100 400 FS
Item no.
6480909
Width
400
Height
100
