Reduction, central, two-part 100 FS
Type GKSRA 1 25 FS
|Item no. 6480861
|EAN 4012195491750
Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description

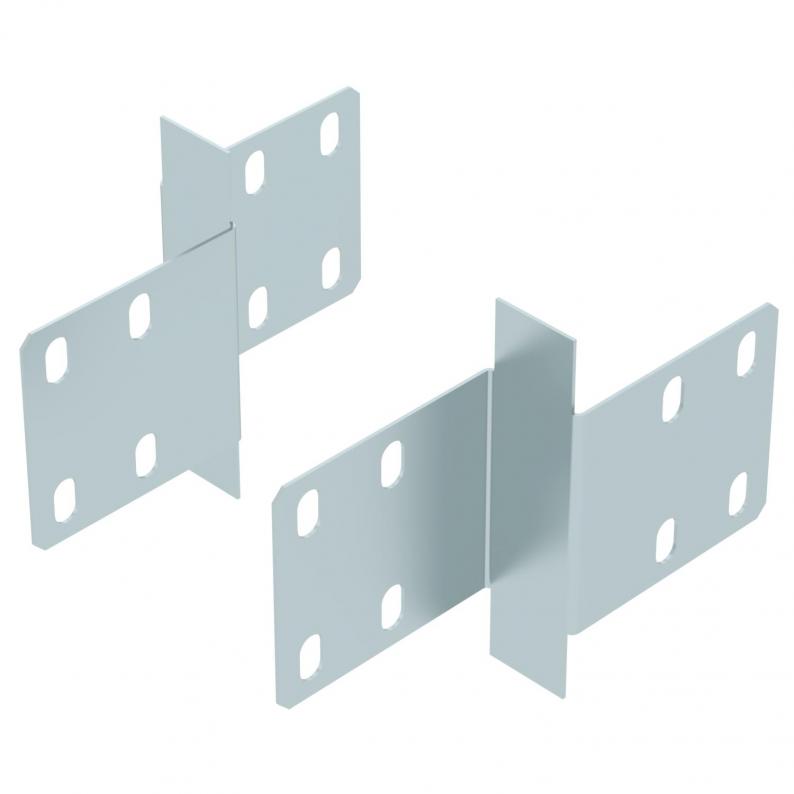

Central reducing bracket, 2-part for GKS... type cable trays with a side height of 100 mm.
Technical data

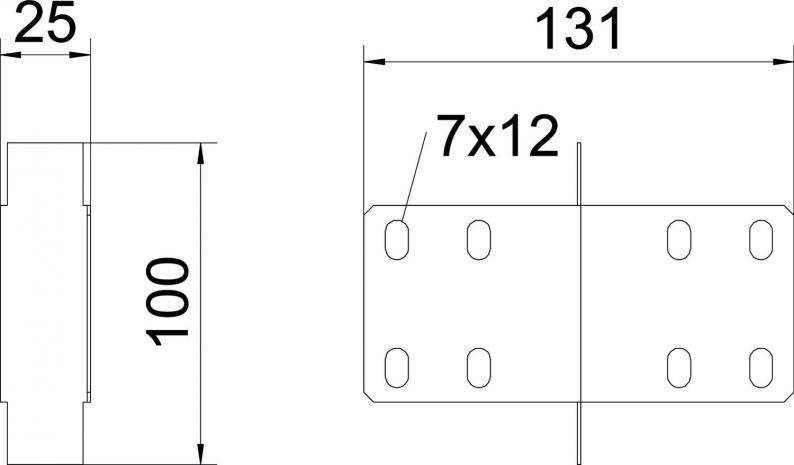

Dimensions
| Width | 25 mm |
|---|---|
| Height | 100 mm |
| Dimension A | 25 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Type | Reduction, symmetrical |
| Dimension | 100x25 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Height
Item no.
GKSRA 1 25 FS
25
100
6480861
GKSRA 1 50 FS
50
100
6480862
GKSRA 1 75 FS
75
100
6480863
GKSRA 1 100 FS
100
100
6480864
GKSRA 1 125 FS
125
100
6480865
GKSRA 1 150 FS
150
100
6480866
GKSRA 1 175 FS
175
100
6480867
GKSRA 1 200 FS
200
100
6480868
Width
GKSRA 1 25 FS
Item no.
6480861
Width
25
Height
100
GKSRA 1 50 FS
Item no.
6480862
Width
50
Height
100
GKSRA 1 75 FS
Item no.
6480863
Width
75
Height
100
GKSRA 1 100 FS
Item no.
6480864
Width
100
Height
100
GKSRA 1 125 FS
Item no.
6480865
Width
125
Height
100
GKSRA 1 150 FS
Item no.
6480866
Width
150
Height
100
GKSRA 1 175 FS
Item no.
6480867
Width
175
Height
100
GKSRA 1 200 FS
Item no.
6480868
Width
200
Height
100
