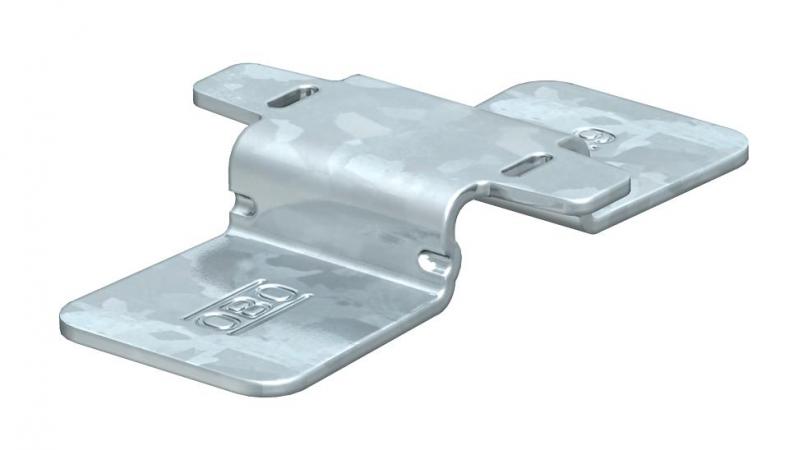

Quick connector
Type GRS 4.8 DD
|Item no. 6016561
|EAN 4012196517992
Item no. / Type
6016561 / GRS 4.8 DD
Surface
Strip galvanised zinc/aluminium, Double Dip
Material
Steel
Smallest selling unit: 50 piece
50piece
piece
Description
Quick connector for screwless straight connection of mesh cable trays without special tools, for mesh cable trays up to a width of 150 mm.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
When selecting the connector, please take the appropriate wire thickness of the mesh cable tray into account.
Technical data

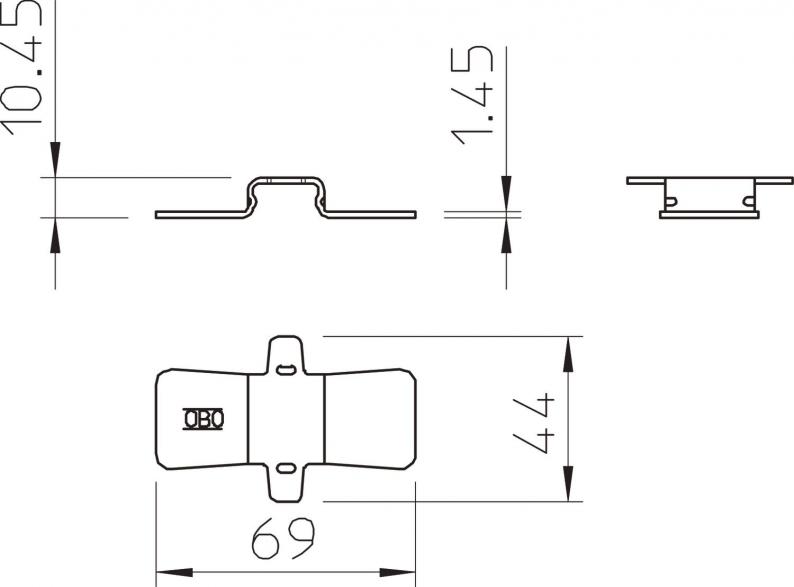

Dimensions
| Length | 69 mm |
|---|---|
| Width | 44 mm |
| Height | 11 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,45 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 69 x 44 |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Dimension | d 4,8mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1063 kg CO2e / 1 Piece |
