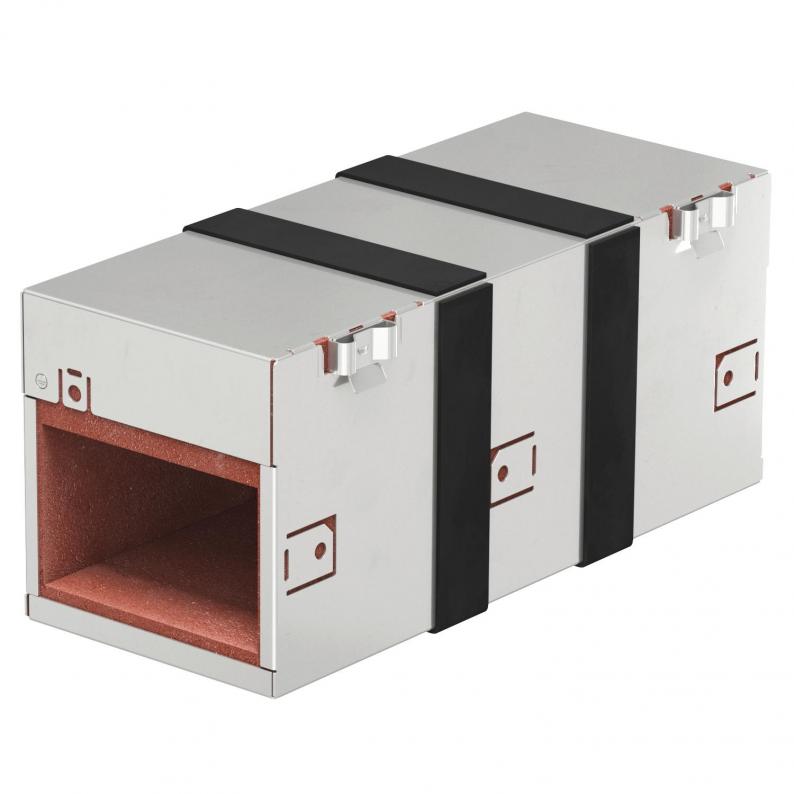

PYROPLUG® MagicBox, four-sided, interior height 60 mm

Type PMB 610-4 A2

Item no. 7204000

EAN 4012196811984

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Internal height

Internal width

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Accessories Variants

Description

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

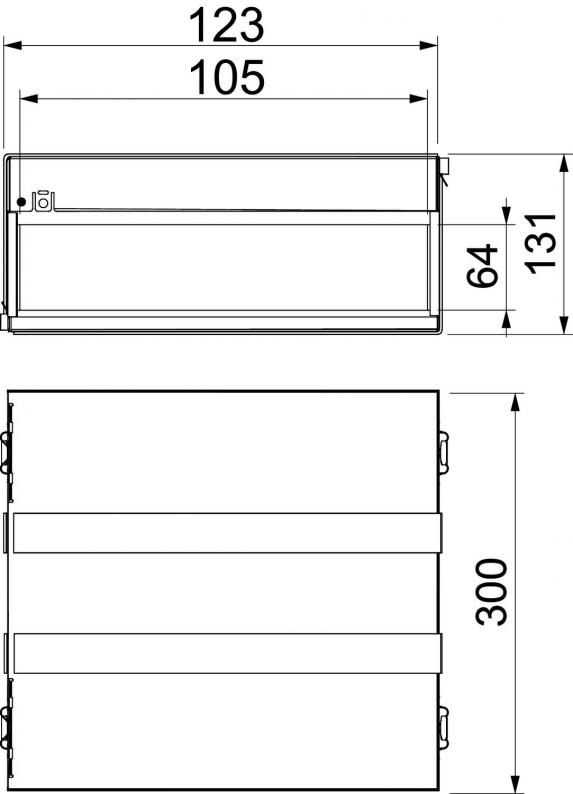

Dimensions

Length	300 mm
Width	123 mm
Height	131 mm
Dimension d	105 mm
Dimension d min.	123 mm
Internal height	64 mm
Internal width	105 mm

Technical data

Accessories required	yes
Fire protection version	Box body
Shape	Rectangular
Dimension	300x123x130
Surface	Bright, treated
Material	Stainless steel 1.4301
Colour	stainless steel

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (2)

Declarations (2)

Certificates (2)

Instructions and Aid (3)

Product images (2)

Tender specifications (2)

Accessories

System accessories

Item no. 7203800

2-component fire protection foam PYROSIT® NG

Type

FBS-S

Smallest selling unit: 1 piece

piece

Variants

Internal width

PMB 610-4 A2

Item no.

7204000

Internal height

Internal width

105

PMB 620-4 A2

Item no.

7204004

Internal height

Internal width

205

PMB 630-4 A2

Item no.

7204008

Internal height

Internal width

305

PMB 640-4 A2

Item no.

7204012

Internal height

Internal width

405

PMB 650-4 A2

Item no.

7204016

Internal height

Internal width

505

PMB 660-4 A2

Item no.

7204020

Internal height

Internal width

605
