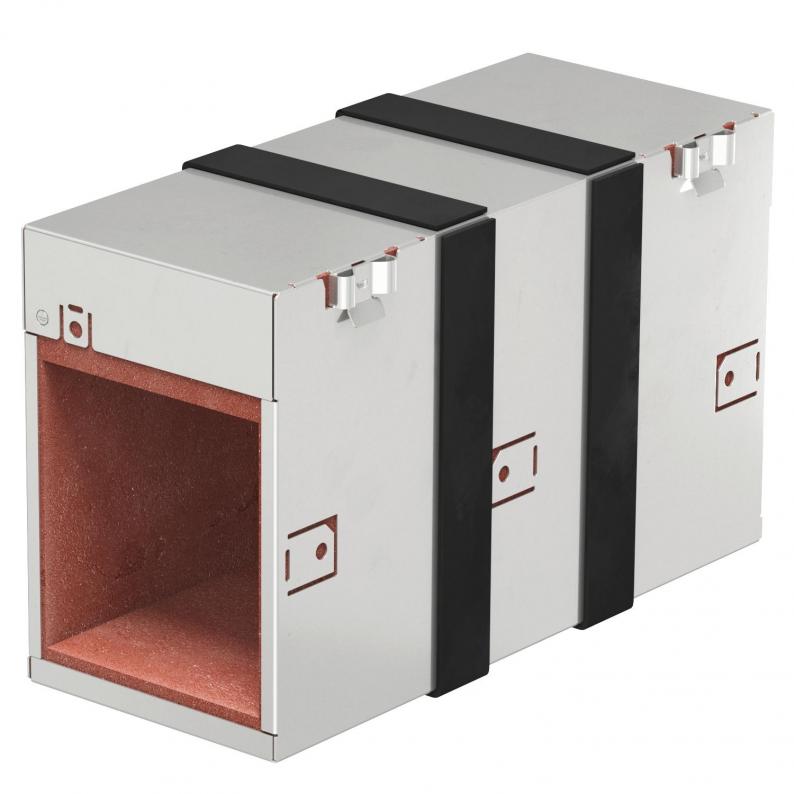

PYROPLUG® MagicBox, four-sided, interior height 110 mm

PYROPLUG® MagicBox, four-sided, interior height 110 mm

Type PMB 110-4 A2
|
Item no. 7204120
|
EAN 4012196811809
Show all variants
Item no. / Type
Internal height
Internal width

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

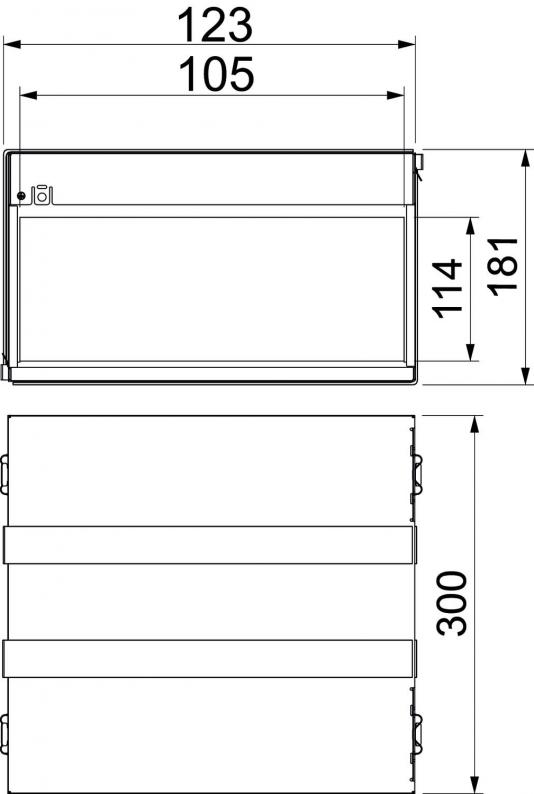

Dimensions

Length300 mm
Width123 mm
Height181 mm
Dimension d105 mm
Dimension d min.123 mm
Internal height114 mm
Internal width105 mm

Technical data

Accessories requiredyes
Fire protection versionBox body
ShapeRectangular
Dimension300x123x181
SurfaceBright, treated
MaterialStainless steel 1.4113
Colourstainless steel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)

Accessories

System accessories
Type
FBS-S

Smallest selling unit: 1 piece

piece

Variants

Internal width
PMB 110-4 A2
Item no.
7204120
Internal height
114
Internal width
105
PMB 120-4 A2
Item no.
7204124
Internal height
114
Internal width
205
PMB 130-4 A2
Item no.
7204128
Internal height
114
Internal width
305
PMB 140-4 A2
Item no.
7204132
Internal height
114
Internal width
405
PMB 150-4 A2
Item no.
7204136
Internal height
114
Internal width
505
PMB 160-4 A2
Item no.
7204140
Internal height
114
Internal width
605
