PYROCOMB® Intube pipe shell, Ø 60 mm
Type CTS 06150
|Item no. 7204290
|EAN 4012196810161
Item no. / Type
7204290 / CTS 06150
Smallest selling unit: 1 piece
1piece
piece
Description
Internally coated pipe shells with click lock. The inner space can be fitted with cables and electrical installation pipes completely. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.

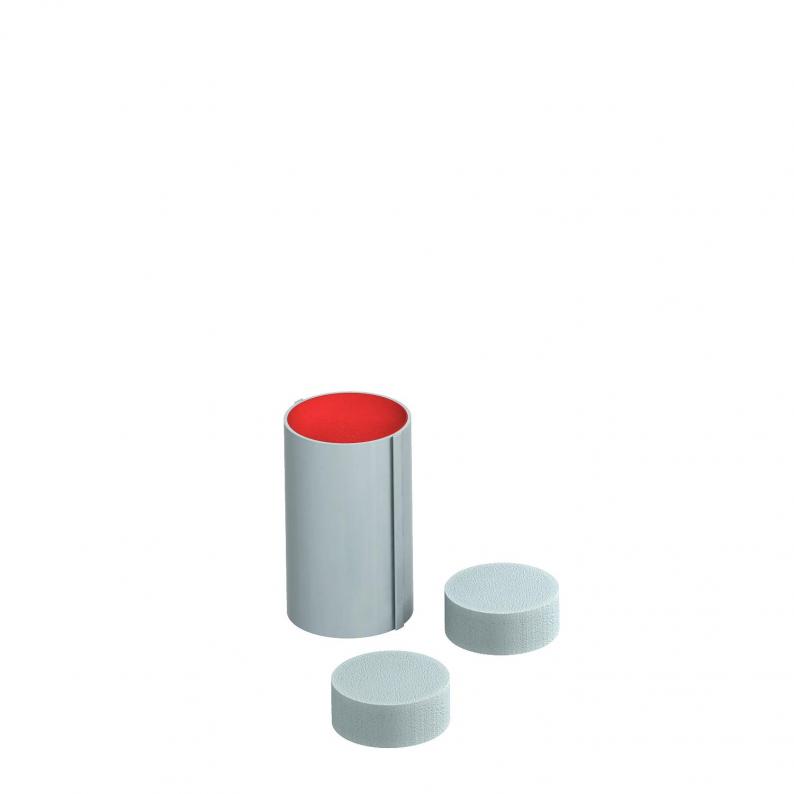

Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
Technical data

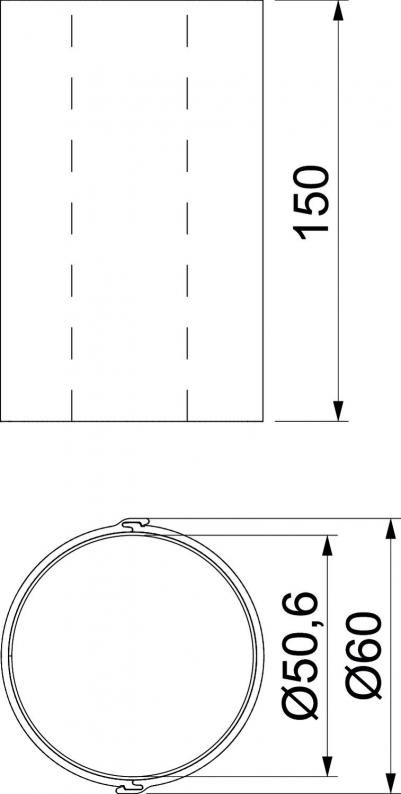

Dimensions
| Length | 150 mm |
|---|---|
| Dimension L | 150 mm |
| Dimension B | 60 mm |
| Dimension d min. | 50,6 mm |
Technical data
| Diameter | 60 mm |
|---|---|
| Accessories required | no |
| Fire protection version | Assembly insulation |
| Shape | Round |
| For opening, min. | 65 mm |
| Dimension | 51x150mm |
| Material | Polyvinylchloride |
| Colour | Grey |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7202310
Ablation coating PYROCOAT® in a cartridgeType
ASX-K
Smallest selling unit: 1 piece
1piece
piece
Variants
Type
Dimension L
Dimension d min.
For opening, min.
Item no.
CTS 06150
150
50,6
65
7204290
CTS 06150
Item no.
7204290
Dimension L
150
Dimension d min.
50,6
For opening, min.
65
