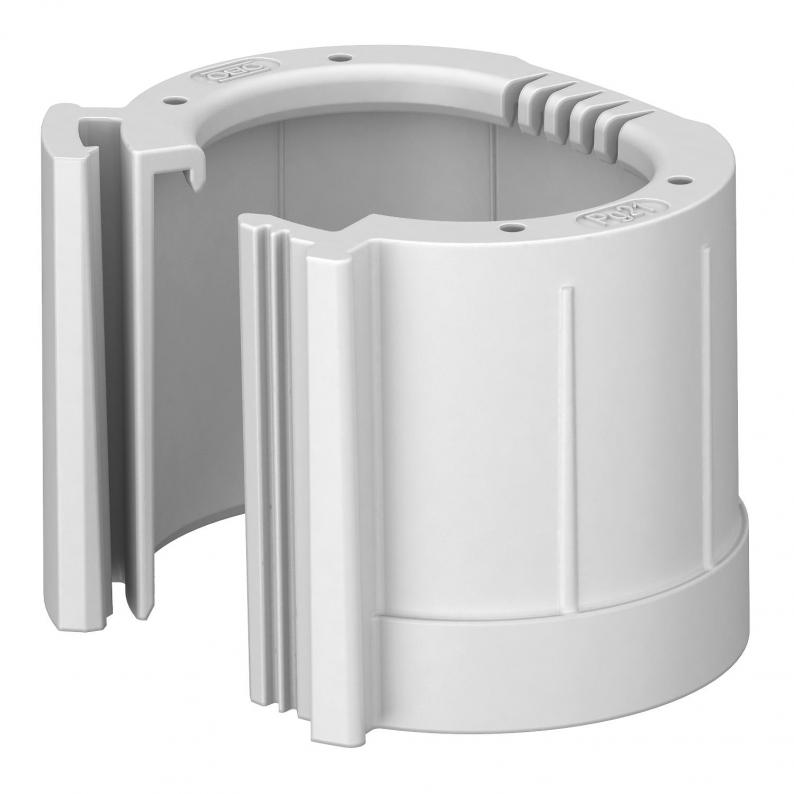

Pipe end cap, splittable, PG, light grey
Type 129 TB PG16
|Item no. 2044516
|EAN 4012196594122
Item no. / Type
Size
Smallest selling unit: 50 piece
50piece
piece
Description
Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
Technical data

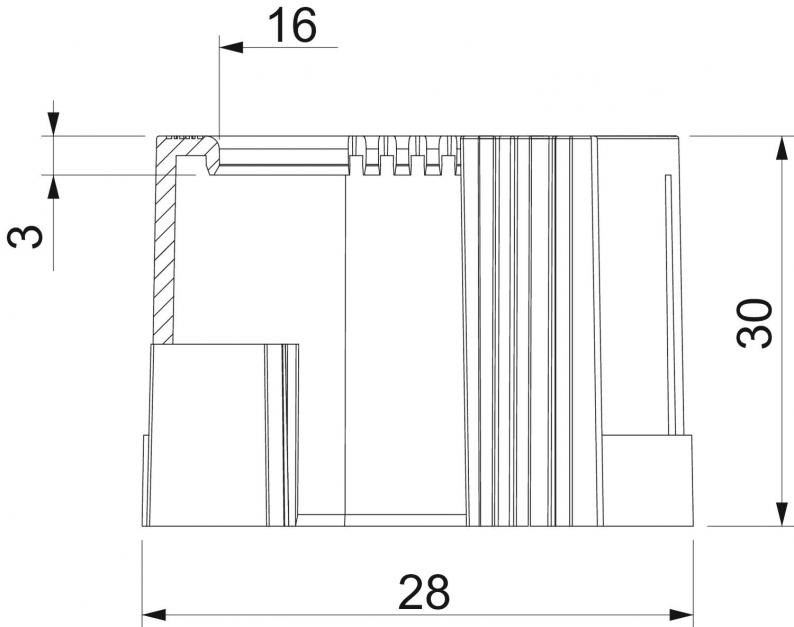

Dimensions
| Dimension D1 | 28 mm |
|---|---|
| Dimension D2 | 16 mm |
| Dimension L1 | 30 mm |
| Dimension L2 | 3 mm |
Technical data
| Size | PG16 |
|---|---|
| Polished surface | no |
| Brushed surface | no |
| for pipe diameter | 22,5 mm |
| Version for | Connector |
| ROHS-conformant | yes |
| Dimension | PG16 |
| Material | Polyethylene |
| Colour | Light grey; RAL 7035 |
| Product series | Metal pipes |
Environmental Data
0,0155 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0155 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0155 kg CO₂e |
| Determination date of CO2 value | 2025-09-26T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
