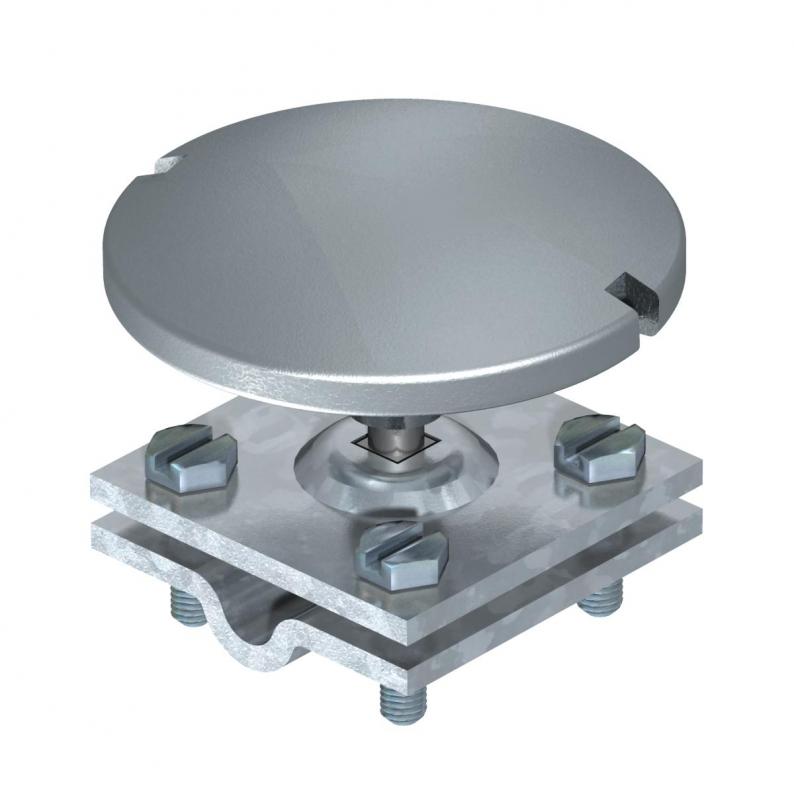

Mushroom-shaped air-termination with connectors
Type 128 SP
|Item no. 5450095
|EAN 4012196879694
Item no. / Type
5450095 / 128 SP
Smallest selling unit: 5 piece
5piece
piece
Description
• Mushroom-shaped air-termination made of brass
• With pre-mounted cross-piece and hexagonal bolts M8 x 25, made of hot galvanised steel
• For round conductor Rd 8–10 and flat conductor FL 30
• With pre-mounted cross-piece and hexagonal bolts M8 x 25, made of hot galvanised steel
• For round conductor Rd 8–10 and flat conductor FL 30
Technical data
Technical data
| Connection | Round conductor |
|---|---|
| Version for | Mushroom-shaped interceptor |
| Fit | Rd 8-10/ FL30 mm |
| Dimension | M8 |
| Material | Brass |
