Multifunctional connector FT

Multifunctional connector FT

Type LMFV 520 FT
|
Item no. 6487402
|
EAN 4012196513369
Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

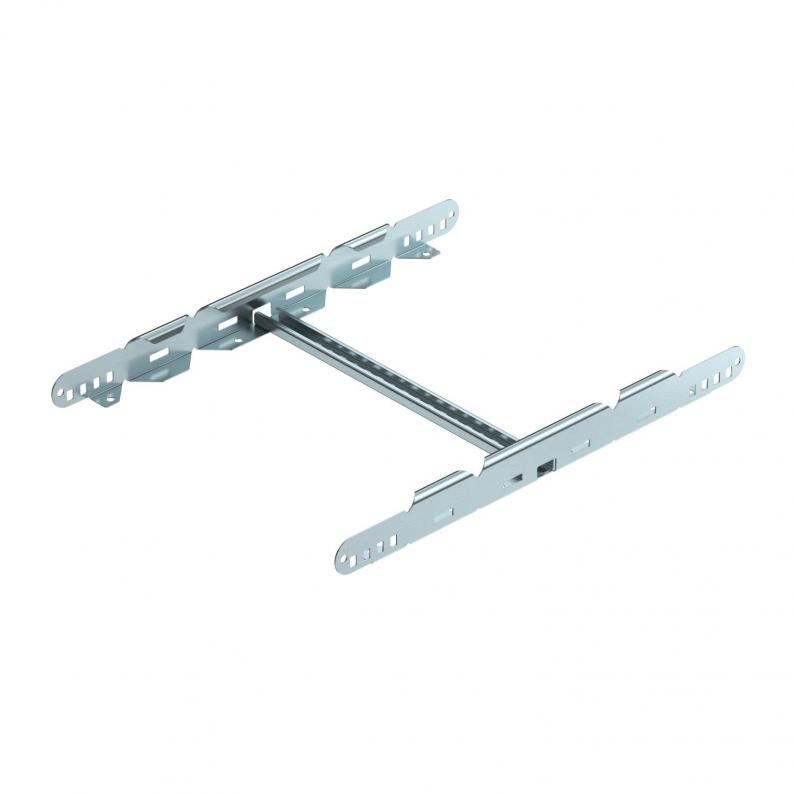

Multifunctional connector for joining cable ladders with a side height of 50 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

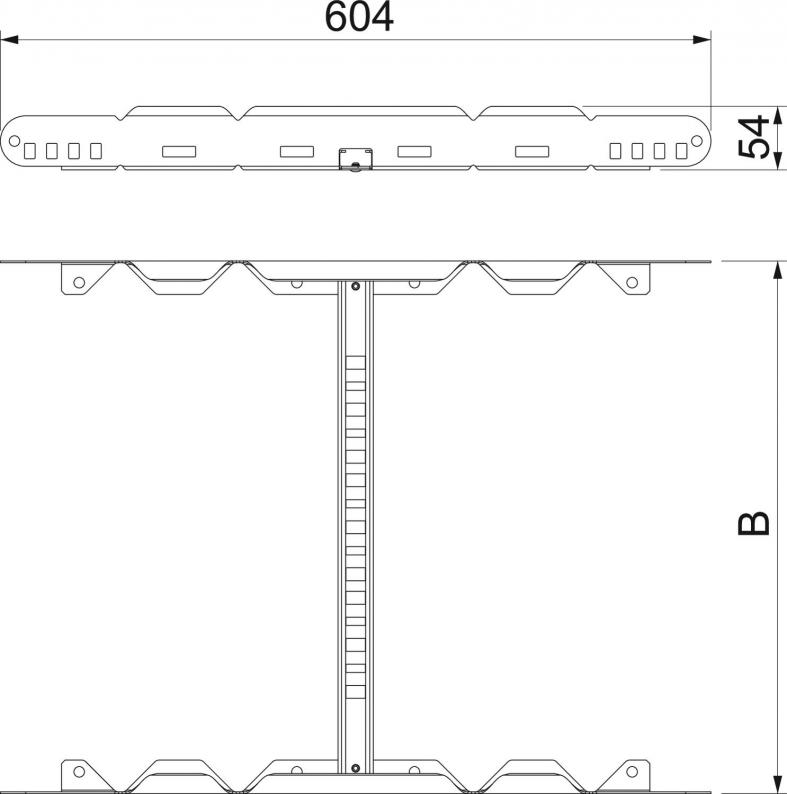

Dimensions

Length604 mm
Width200 mm
Height50 mm
Dimension B200 mm

Technical data

Plate thickness1,5 mm
Suitable for cable tray system height50 mm
Dimension50x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
Dimension B
LMFV 520 FT
Item no.
6487402
Width
200
Height
50
Plate thickness
1,5
Dimension B
200
Surface
Hot-dip galvanised
Material
Steel
LMFV 530 FT
Item no.
6487404
Width
300
Height
50
Plate thickness
1,5
Dimension B
300
Surface
Hot-dip galvanised
Material
Steel
LMFV 545 FT
Item no.
6487406
Width
450
Height
50
Plate thickness
1,5
Dimension B
450
Surface
Hot-dip galvanised
Material
Steel
LMFV 560 FT
Item no.
6487408
Width
600
Height
50
Plate thickness
1,5
Dimension B
600
Surface
Hot-dip galvanised
Material
Steel
