Multifunctional connector 100 FT

Multifunctional connector 100 FT

Type LMFV 120 FT
|
Item no. 6487452
|
EAN 4012196513659
Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

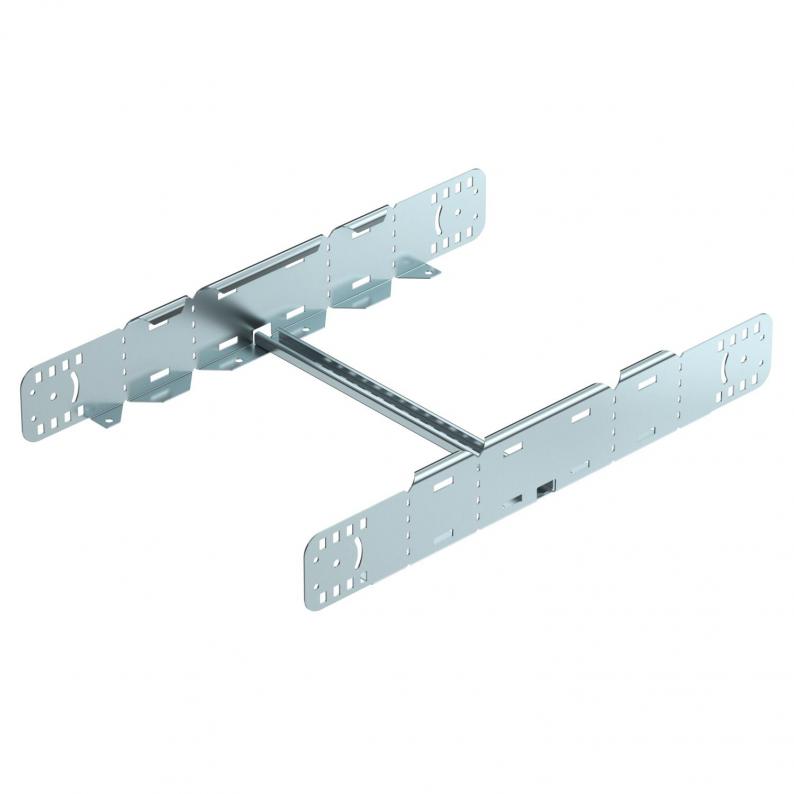

Multifunctional connector for joining cable ladders with a side height of 100 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

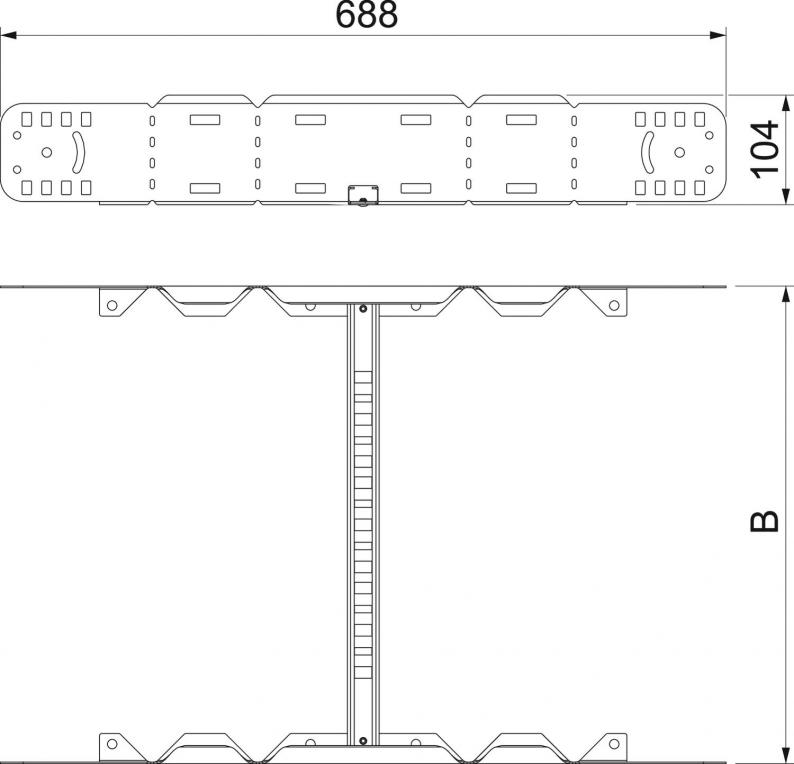

Dimensions

Length688 mm
Width200 mm
Height100 mm
Dimension B200 mm

Technical data

Plate thickness1,5 mm
Suitable for cable tray system height100 mm
Dimension100x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
Dimension B
LMFV 120 FT
Item no.
6487452
Width
200
Height
100
Plate thickness
1,5
Dimension B
200
Surface
Hot-dip galvanised
Material
Steel
LMFV 130 FT
Item no.
6487454
Width
300
Height
100
Plate thickness
1,5
Dimension B
300
Surface
Hot-dip galvanised
Material
Steel
LMFV 145 FT
Item no.
6487456
Width
450
Height
100
Plate thickness
1,5
Dimension B
450
Surface
Hot-dip galvanised
Material
Steel
LMFV 160 FT
Item no.
6487458
Width
600
Height
100
Plate thickness
1,5
Dimension B
600
Surface
Hot-dip galvanised
Material
Steel
