Mesh cable tray GR 105 G
Type GR 105 150 G
|Item no. 6002803
|EAN 4012196624553
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
m
Description

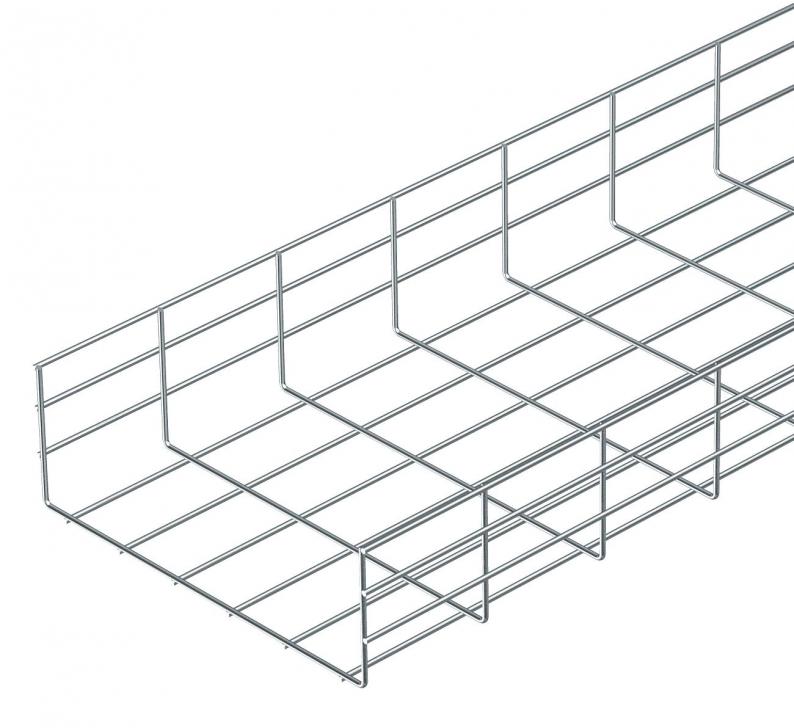

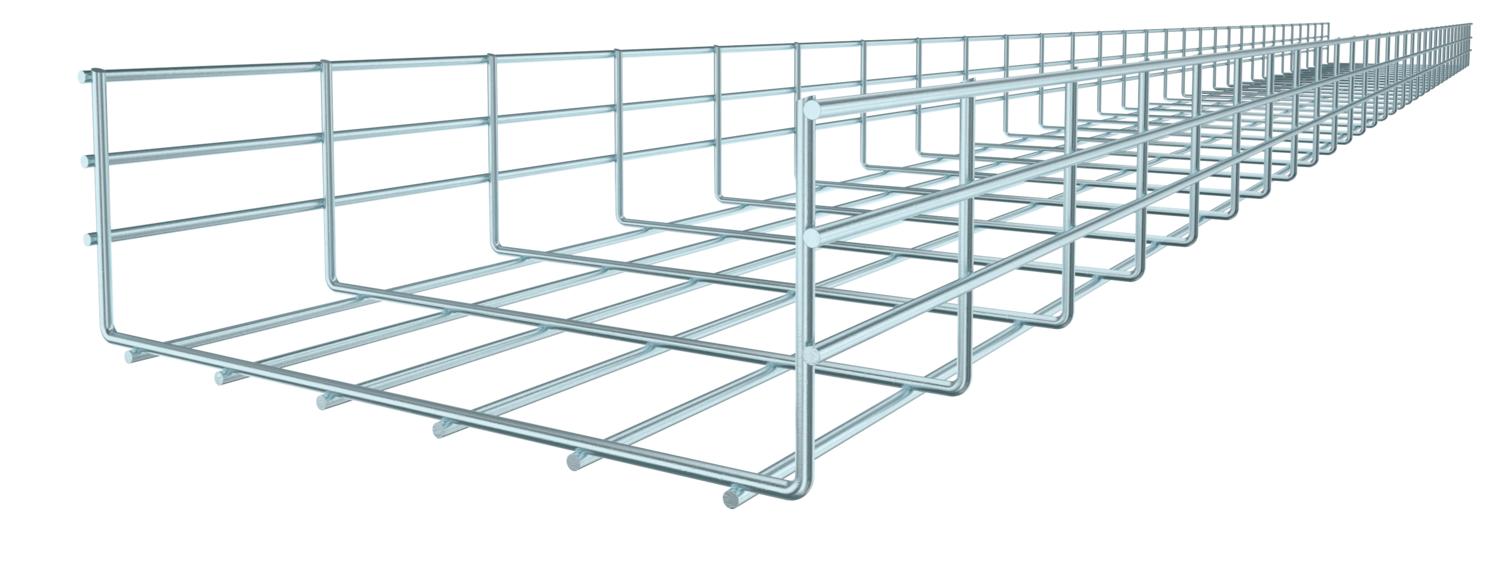

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid dimension is 50 x 100 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data

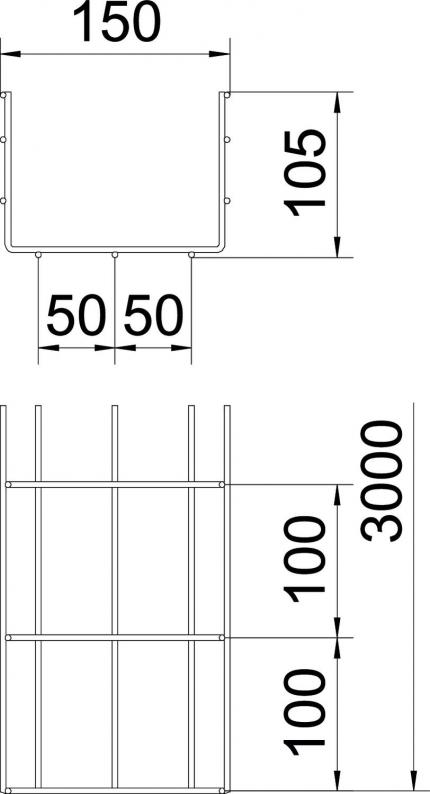

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 105 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 130 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 13000 mm² |
| Integrated partition | Without |
| Profile shape | U-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 105x150x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,15 kN/m |
|---|---|
| Support spacing 2.5 m | 0,15 kN/m |
| Support spacing 1.0 m | 0,55 kN/m |
| Support spacing 1.5 m | 0,35 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (1)
Certificates (1)
Instructions and Aid (3)
Product images (3)
Tender specifications (2)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
Item no.
GR 105 150 G
3000
150
105
no
130
3,9
6002803
GR 105 100 G
3000
100
105
no
82
3,9
6002838
GR 105 200 G
3000
200
105
no
175
4,8
6002846
GR 105 300 G
3000
300
105
no
268
4,8
6002854
GR 105 400 G
3000
400
105
no
363
4,8
6002927
GR 105 500 G
3000
500
105
no
459
4,8
6002935
GR 105 600 G
3000
600
105
no
554
4,8
6002943
Width
Usable cross-section
Wire diameter
GR 105 150 G
Item no.
6002803
Length
3000
Width
150
Height
105
Maintain electrical functions
no
Usable cross-section
130
Wire diameter
3,9
GR 105 100 G
Item no.
6002838
Length
3000
Width
100
Height
105
Maintain electrical functions
no
Usable cross-section
82
Wire diameter
3,9
GR 105 200 G
Item no.
6002846
Length
3000
Width
200
Height
105
Maintain electrical functions
no
Usable cross-section
175
Wire diameter
4,8
GR 105 300 G
Item no.
6002854
Length
3000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
4,8
GR 105 400 G
Item no.
6002927
Length
3000
Width
400
Height
105
Maintain electrical functions
no
Usable cross-section
363
Wire diameter
4,8
GR 105 500 G
Item no.
6002935
Length
3000
Width
500
Height
105
Maintain electrical functions
no
Usable cross-section
459
Wire diameter
4,8
GR 105 600 G
Item no.
6002943
Length
3000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
4,8
