Mesh cable tray GR 105 A2
Type GR 105 200 A2
|Item no. 6002749
|EAN 4012196344611
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Smallest selling unit: 3 m
3m
m
Description

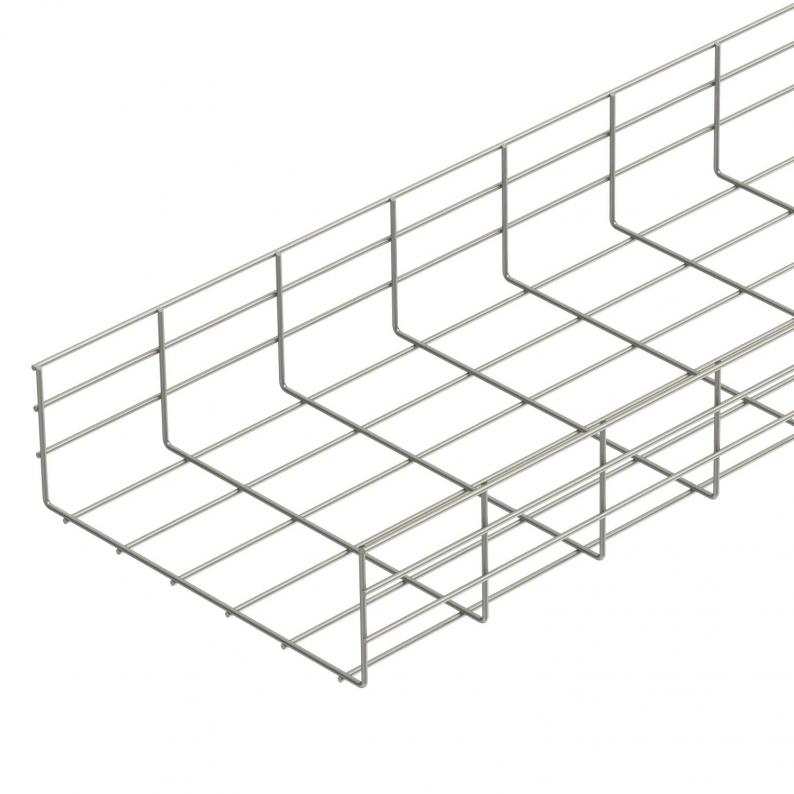

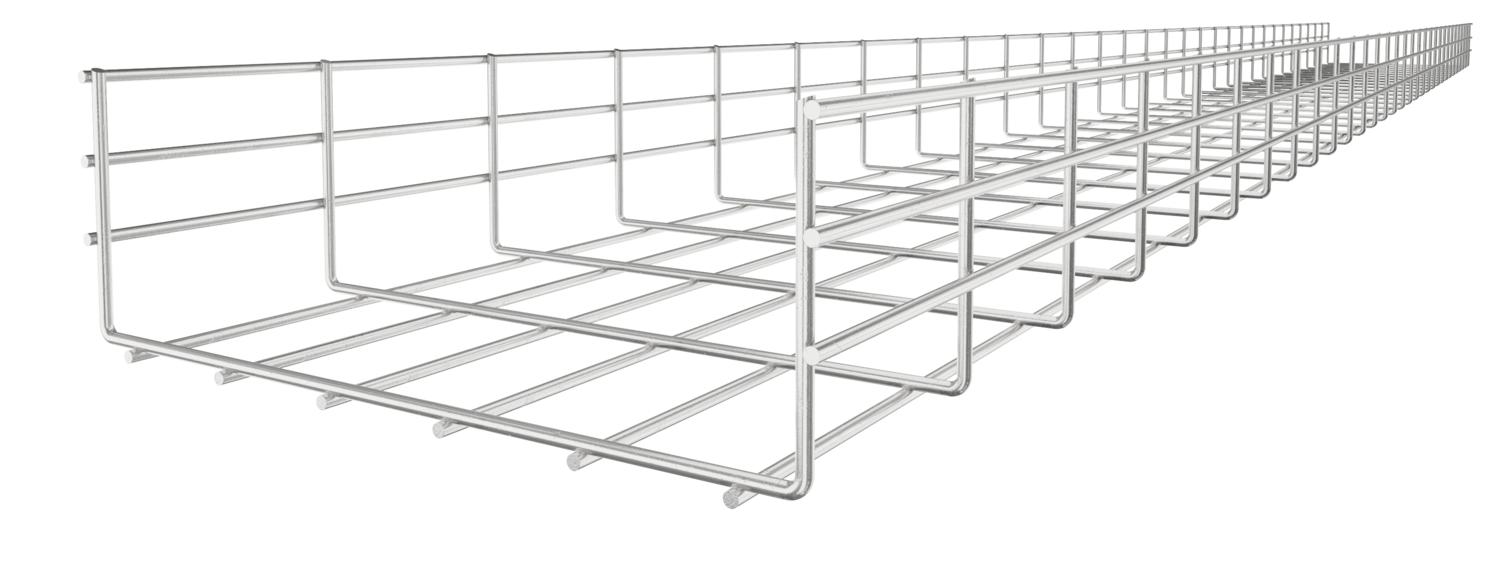

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid dimension is 50 x 100 mm.
Technical data

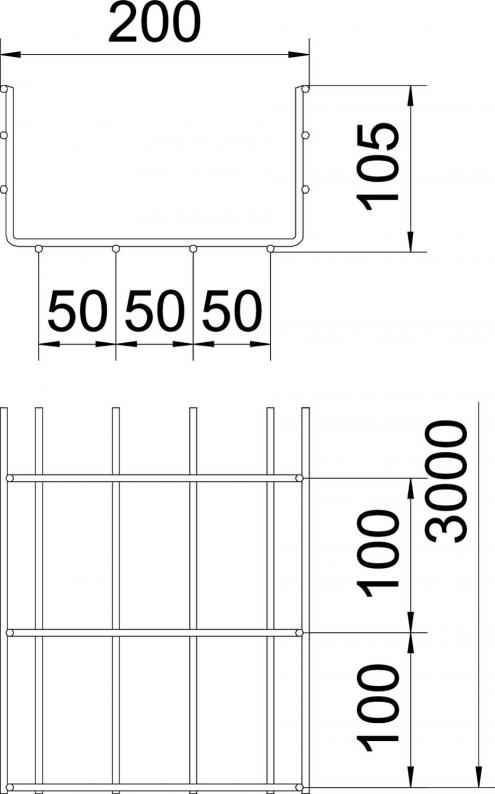

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 105 mm |
| Dimension B | 200 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Usable cross-section | 175 cm² |
| Usable cross-section | 17500 mm² |
| Wire diameter | 4,8 mm |
| Dimension | 105x200x3000 |
| Surface | Pickled |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,4 kN/m |
|---|---|
| Support spacing 2.5 m | 0,4 kN/m |
| Support spacing 1.0 m | 1 kN/m |
| Support spacing 1.5 m | 0,7 kN/m |

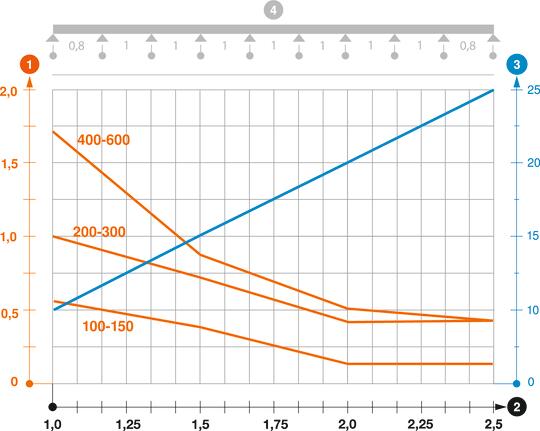

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (1)
Instructions and Aid (3)
Product images (3)
Tender specifications (2)
Variants
Type
Length
Width
Height
Usable cross-section
Wire diameter
Item no.
GR 105 200 A2
3000
200
105
175
4,8
6002749
GR 105 100 A2
3000
100
105
82
3,8
6002811
GR 105 150 A2
3000
150
105
130
3,8
6002815
GR 105 300 A2
3000
300
105
268
4,8
6002862
GR 105 400 A2
3000
400
105
363
4,8
6002870
GR 105 500 A2
3000
500
105
459
4,8
6002874
GR 105 600 A2
3000
600
105
554
4,8
6002878
Width
Usable cross-section
Wire diameter
GR 105 200 A2
Item no.
6002749
Length
3000
Width
200
Height
105
Usable cross-section
175
Wire diameter
4,8
GR 105 100 A2
Item no.
6002811
Length
3000
Width
100
Height
105
Usable cross-section
82
Wire diameter
3,8
GR 105 150 A2
Item no.
6002815
Length
3000
Width
150
Height
105
Usable cross-section
130
Wire diameter
3,8
GR 105 300 A2
Item no.
6002862
Length
3000
Width
300
Height
105
Usable cross-section
268
Wire diameter
4,8
GR 105 400 A2
Item no.
6002870
Length
3000
Width
400
Height
105
Usable cross-section
363
Wire diameter
4,8
GR 105 500 A2
Item no.
6002874
Length
3000
Width
500
Height
105
Usable cross-section
459
Wire diameter
4,8
GR 105 600 A2
Item no.
6002878
Length
3000
Width
600
Height
105
Usable cross-section
554
Wire diameter
4,8
