MD metal duct, 3-compartment, duct height 25 mm
Type MD 25025 1.6C3
|Item no. 7490371
|EAN 4012196618699
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

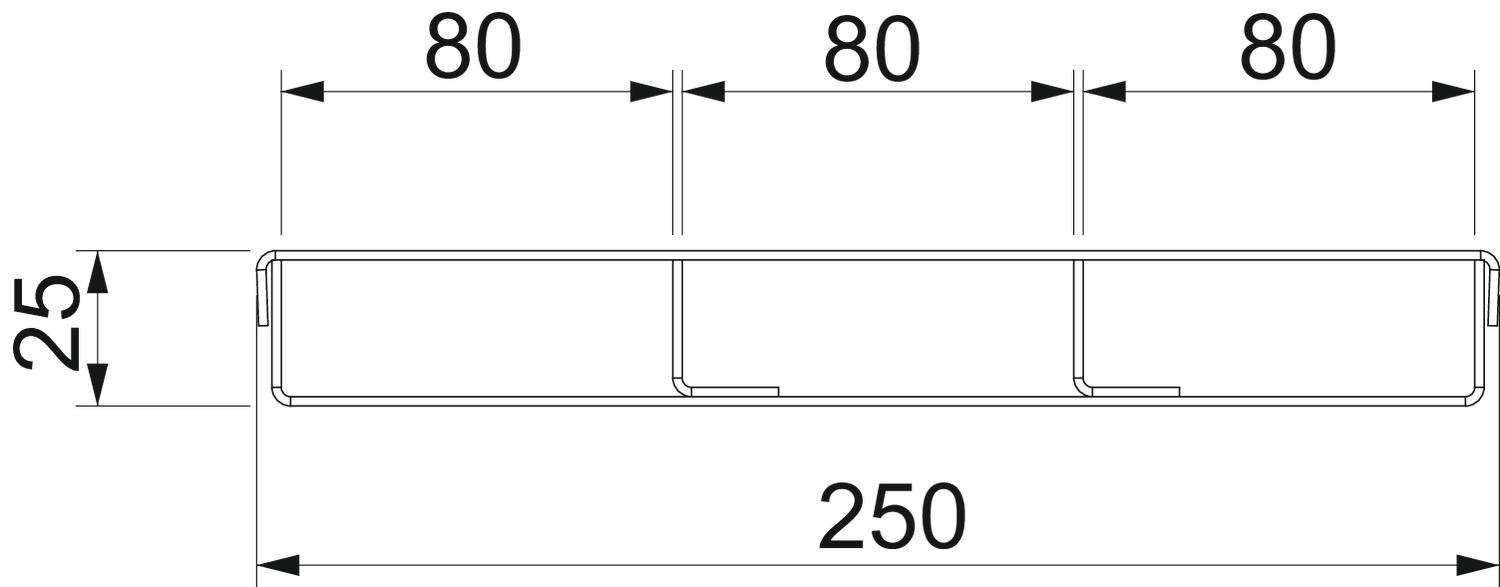

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 250 mm |
| Height | 25 mm |
| Dimension b | 80 mm |
| Dimension a | 80 mm |
| Dimension c | 80 mm |
| Dimension h | 25 mm |
Technical data
| Material thickness | 1,6 mm |
|---|---|
| Number of compartments | 3 St. |
| Trunking width, min. | 250 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 25 mm |
| Dimension | 2500x250x25 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Certificates (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 20025 1.6C3
2500
200
25
1,6
3
7490351
MD 25025 1.6C3
2500
250
25
1,6
3
7490371
MD 30025 1.6 C3
2500
300
25
1,6
3
7490381
Width
MD 20025 1.6C3
Item no.
7490351
Length
2500
Width
200
Height
25
Material thickness
1,6
Number of compartments
3
MD 25025 1.6C3
Item no.
7490371
Length
2500
Width
250
Height
25
Material thickness
1,6
Number of compartments
3
MD 30025 1.6 C3
Item no.
7490381
Length
2500
Width
300
Height
25
Material thickness
1,6
Number of compartments
3
