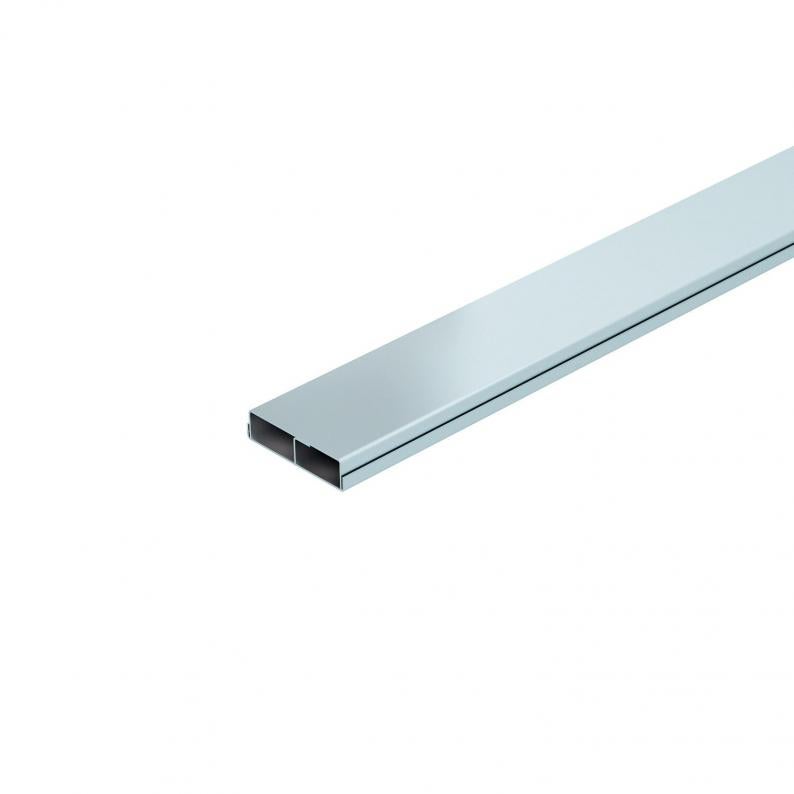

MD metal duct, 2-compartment, duct height 25 mm
Type MD 15025 1.6C2
|Item no. 7490334
|EAN 4012196618637
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

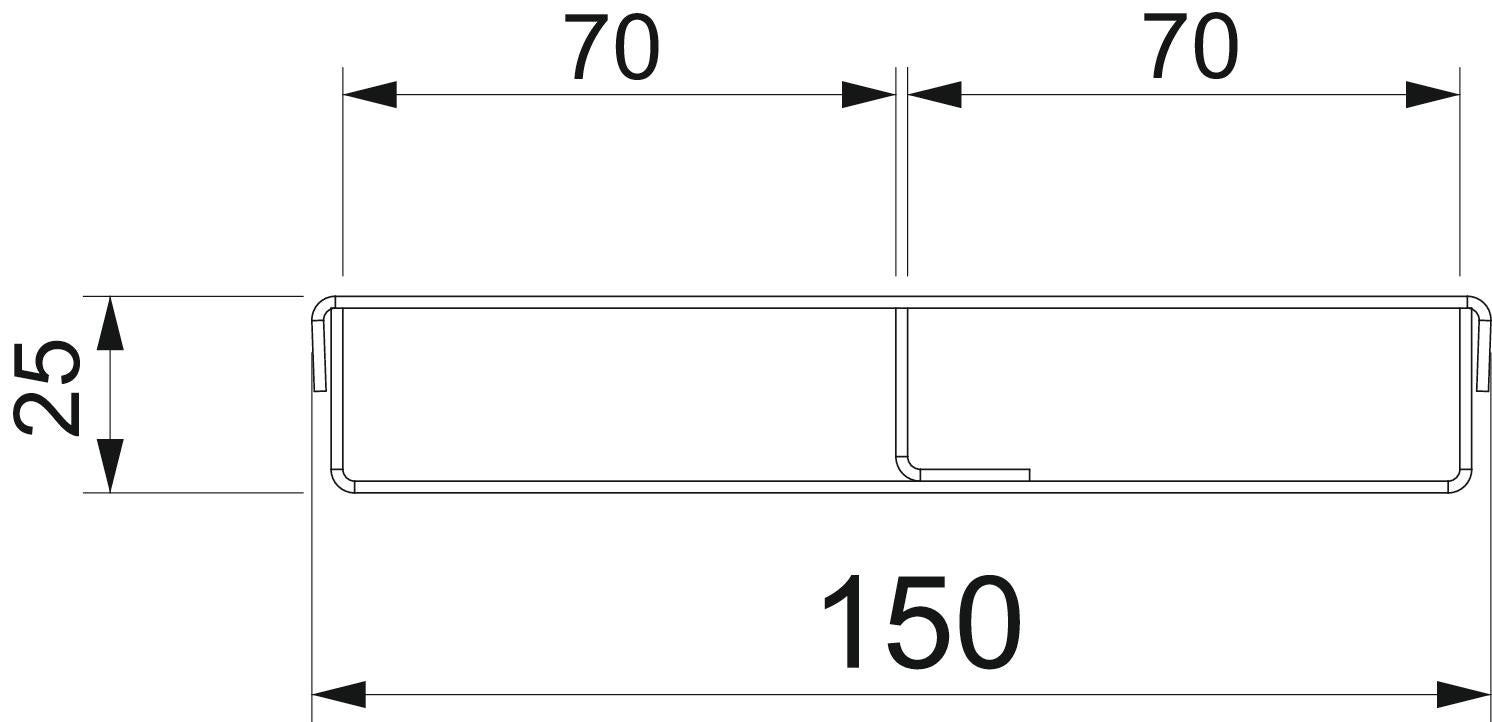

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 150 mm |
| Height | 25 mm |
| Dimension b | 70 mm |
| Dimension a | 70 mm |
| Dimension h | 25 mm |
Technical data
| Material thickness | 1,6 mm |
|---|---|
| Number of compartments | 2 St. |
| Trunking width, min. | 150 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 25 mm |
| Dimension | 2500x150x25 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Certificates (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 10025 1.6C2
2500
100
25
1,6
2
7490324
MD 15025 1.6C2
2500
150
25
1,6
2
7490334
MD 20025 1.6C2
2500
200
25
1,6
2
7490348
Width
MD 10025 1.6C2
Item no.
7490324
Length
2500
Width
100
Height
25
Material thickness
1,6
Number of compartments
2
MD 15025 1.6C2
Item no.
7490334
Length
2500
Width
150
Height
25
Material thickness
1,6
Number of compartments
2
MD 20025 1.6C2
Item no.
7490348
Length
2500
Width
200
Height
25
Material thickness
1,6
Number of compartments
2
