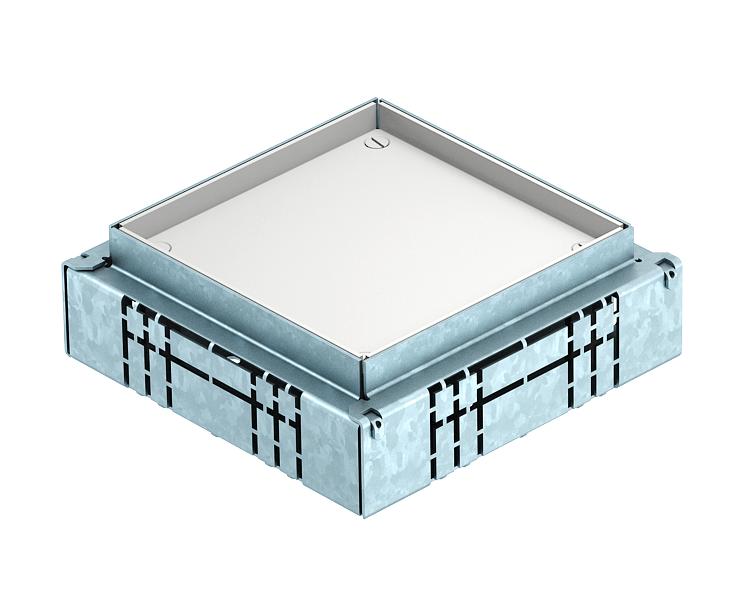

JBT underfloor connection socket for MD duct width 100
Type JBT 10038 10
|Item no. 7490101
|EAN 4012196511266
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description
Underfloor junction box for metal ducts in the heights 25 mm and 38 mm.
Technical data
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 50 mm |
| Trunking width, max. | 100 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Depth of floor covering recess | 10 mm |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 38 mm |
| Dimension | 172x172x60 |
| Surface | Strip galvanized |
| Material | Steel |

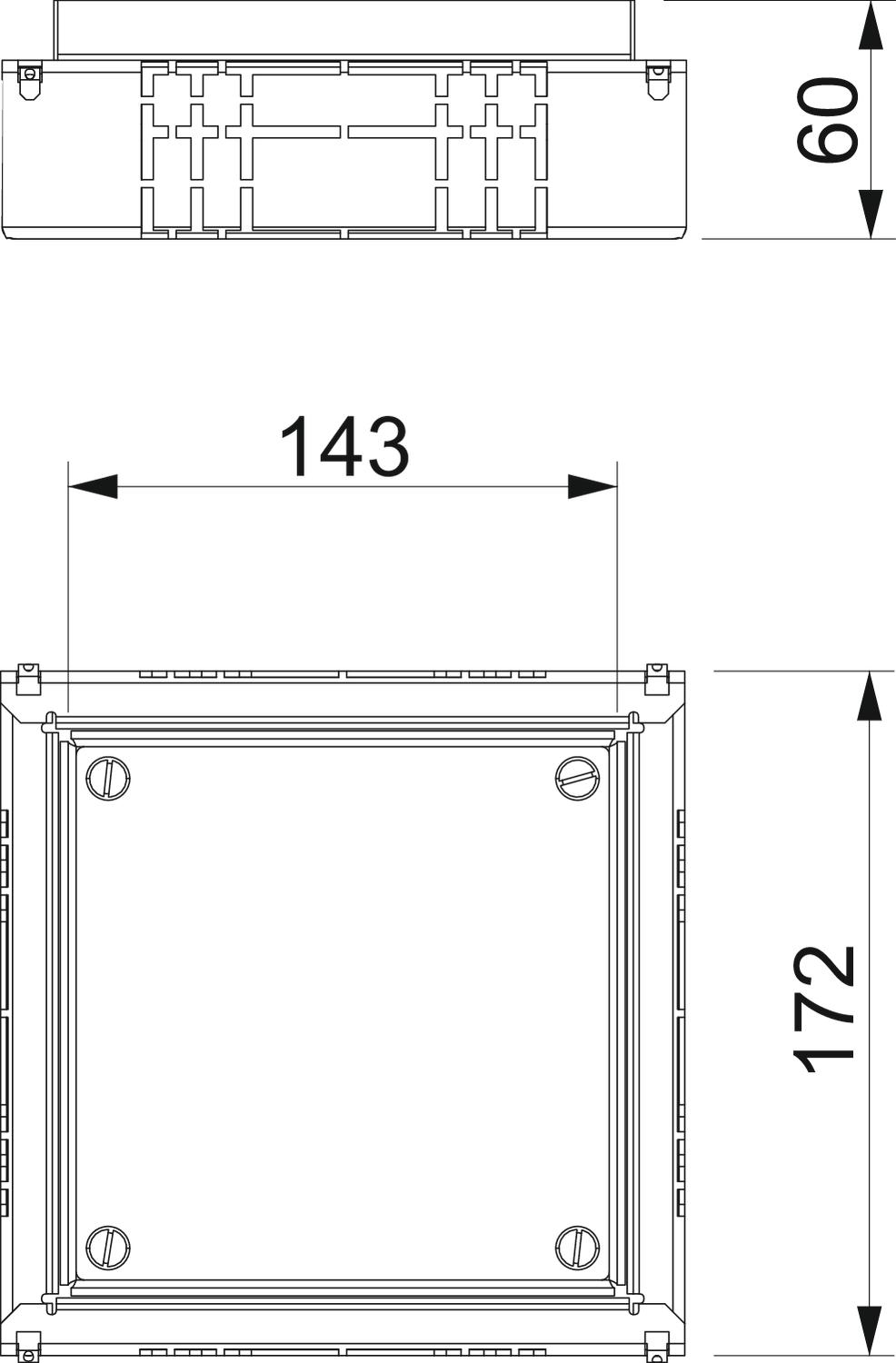

Dimensions
| Dimension A | 172 mm |
|---|---|
| Dimension B | 172 mm |
| Dimension b | 143 mm |
| Dimension a | 143 mm |
| Dimension h | 60 mm |
