JBF underfloor connection socket
Type JBF 10038
|Item no. 7490096
|EAN 4012196618514
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description
Underfloor connection socket for metal ducts in the heights 25 mm and 38 mm.
Technical data

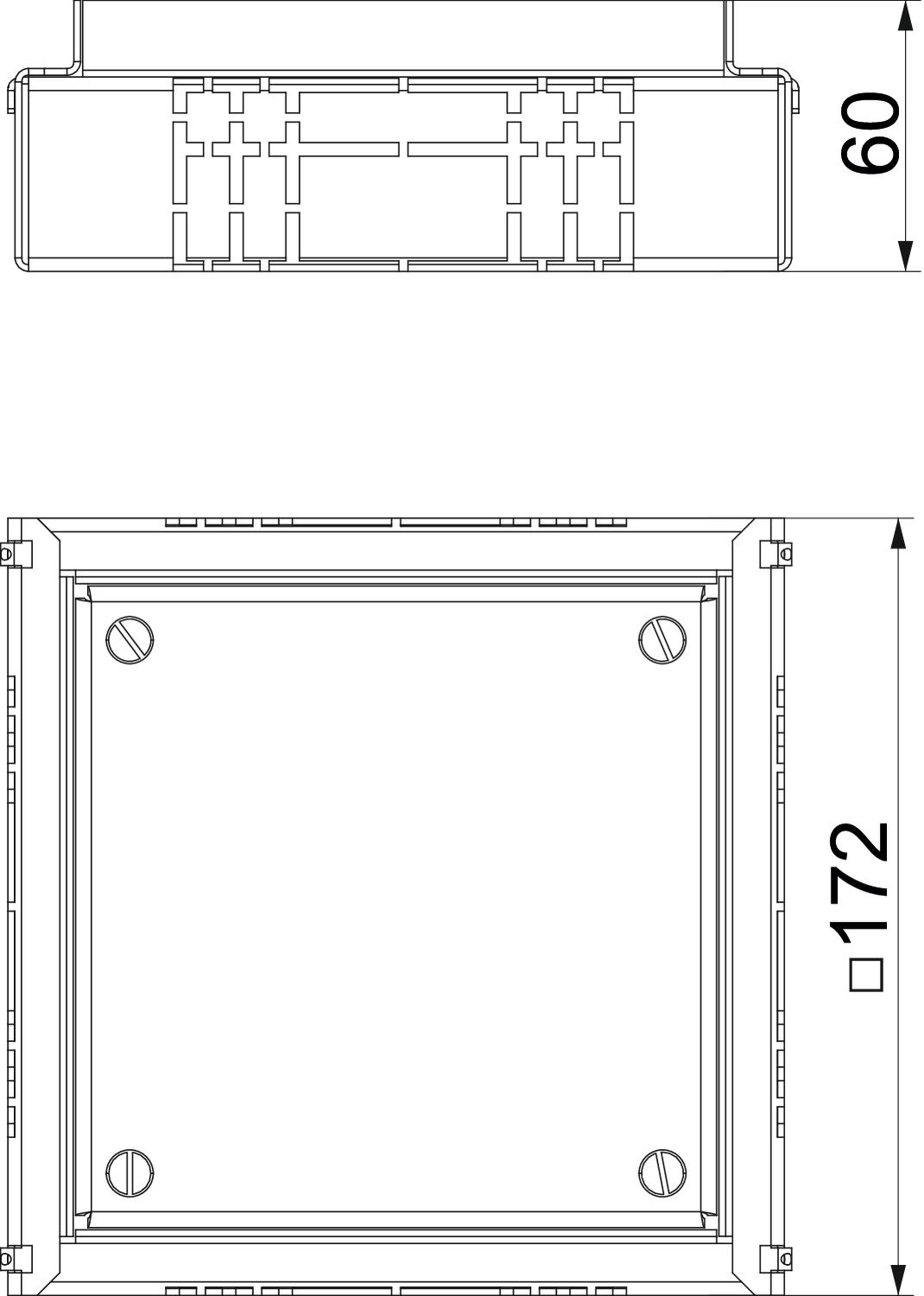

Dimensions
| Length | 172 mm |
|---|---|
| Width | 172 mm |
| Height | 60 mm |
| Dimension h | 60 mm |
Technical data
| Suitable for screed-covered underfloor ducts | yes |
|---|---|
| Trunking width, min. | 50 mm |
| Trunking width, max. | 100 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 38 mm |
| Dimension | 172x172x60 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Product images (2)
Tender specifications (1)
Variants
Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Item no.
JBF 10038
50
100
25
38
7490096
JBF 20038
50
200
25
38
7490097
JBF 30038
50
300
25
38
7490098
Trunking width, max.
JBF 10038
Item no.
7490096
Trunking width, min.
50
Trunking width, max.
100
Duct height, min.
25
Trunking height, max.
38
JBF 20038
Item no.
7490097
Trunking width, min.
50
Trunking width, max.
200
Duct height, min.
25
Trunking height, max.
38
JBF 30038
Item no.
7490098
Trunking width, min.
50
Trunking width, max.
300
Duct height, min.
25
Trunking height, max.
38
