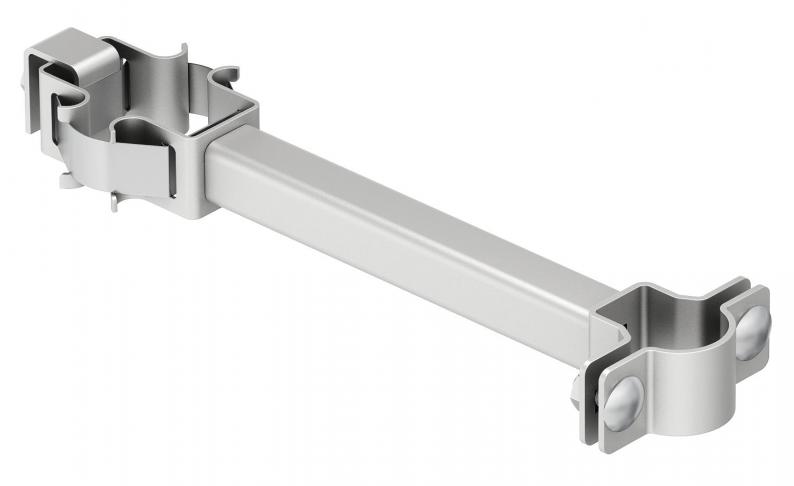

isFang support for spaced pipe mounting, ø 50−300 mm
Type isFang TR100 300
|Item no. 5408959
|EAN 4012195849407
Item no. / Type
5408959 / isFang TR100 300
Smallest selling unit: 2 piece
2piece
piece
Description
Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 50–300 mm.
Technical data

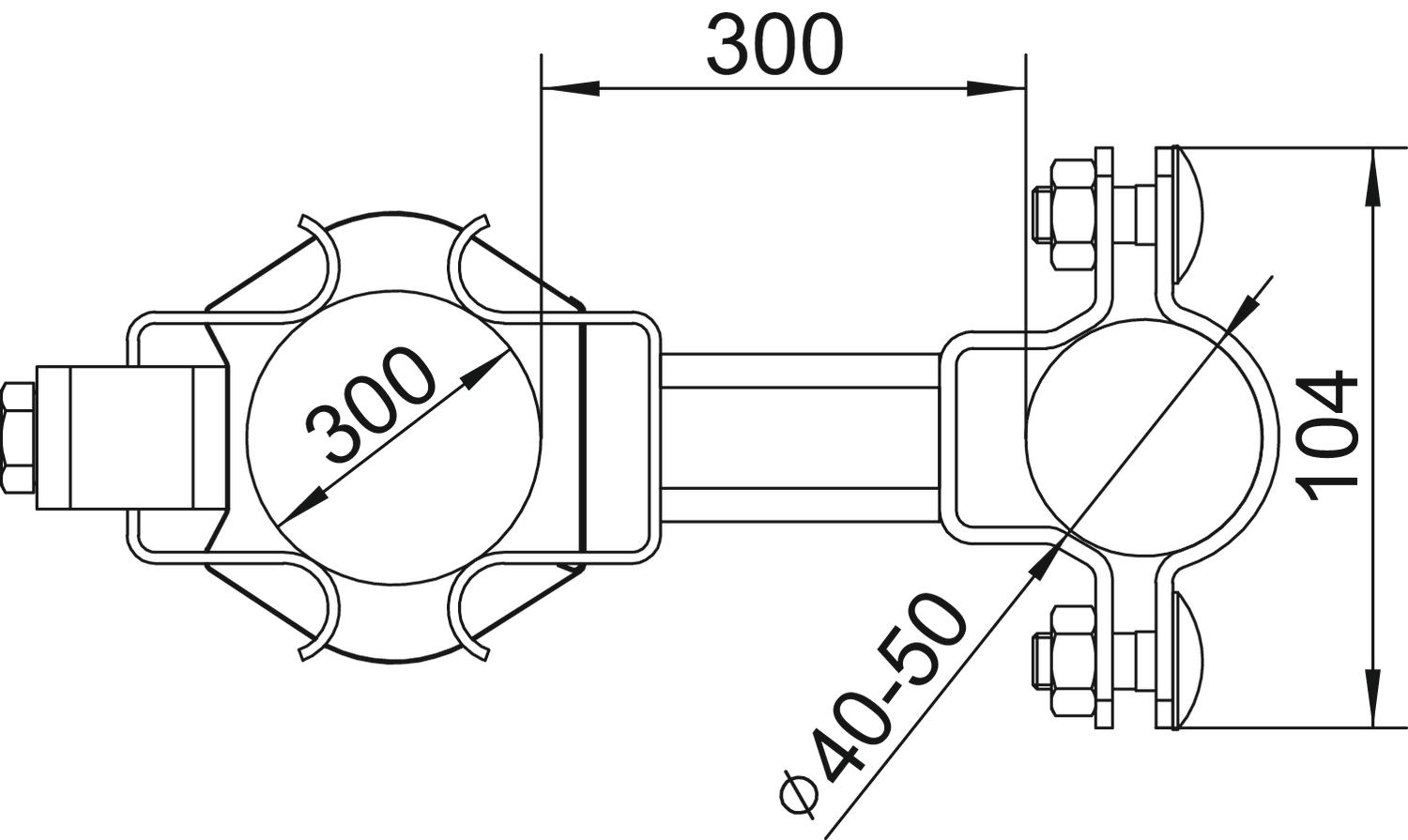

Dimensions
| Dimension L | 300 mm |
|---|---|
| Dimension d min. | 300 mm |
Technical data
| Fit | ø 50–300 mm |
|---|---|
| Dimension | Ø50-300mm |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Fit
Item no.
isFang TR100 300
300
ø 50–300
5408959
isFang TR100 300
Item no.
5408959
Dimension L
300
Fit
ø 50–300
