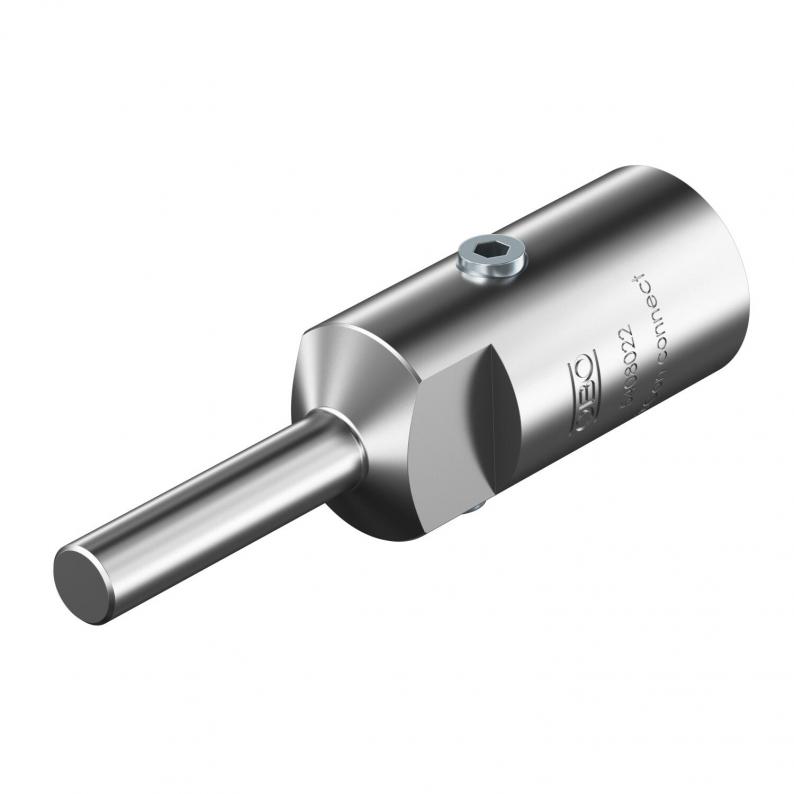

isCon® connection element
Type isCon connect
|Item no. 5408022
|EAN 4012195674689
Item no. / Type
Lightning current carrying capacity
Dimension d min.
Fit
Smallest selling unit: 2 piece
2piece
piece
Description
• Screw-on termination of the connection for the isCon® conductor
• Incl. heat-shrinkable sleeve, hexagonal and screw lock
• Tested up to 150 kA (lightning protection class II)
• Incl. heat-shrinkable sleeve, hexagonal and screw lock
• Tested up to 150 kA (lightning protection class II)
Technical data

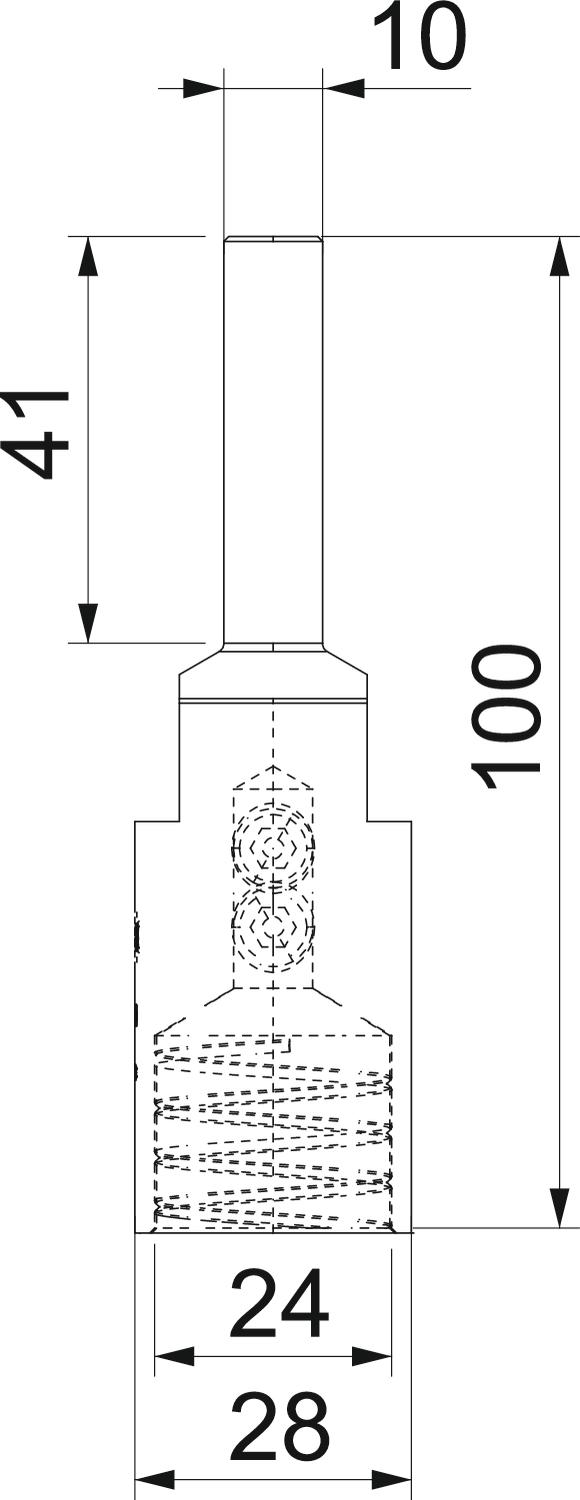

Dimensions
| Length | 28 mm |
|---|---|
| Dimension B | 28 mm |
| Dimension H | 101 mm |
| Dimension d min. | 28 mm |
Technical data
| Diameter | 28 mm |
|---|---|
| Lightning current carrying capacity | H1/150 kA |
| Fit | 23 mm |
| Dimension | Ø23mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 23 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0668 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon con 2
H1/150
28
20
5408021
isCon connect
H1/150
28
23
5408022
Fit
isCon con 2
Item no.
5408021
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
isCon connect
Item no.
5408022
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
23
