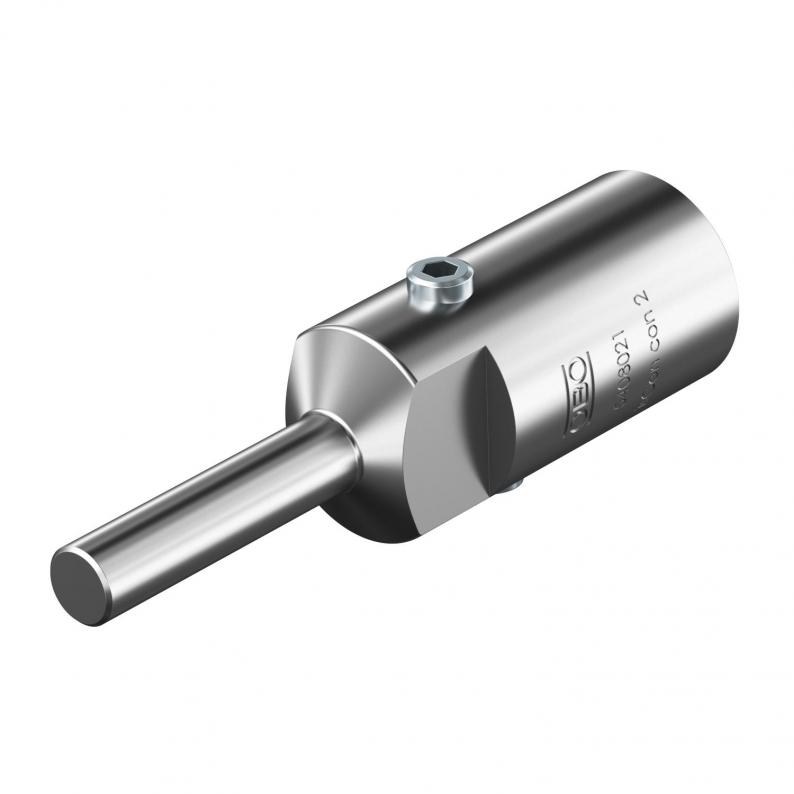

isCon® connection element
Type isCon con 2
|Item no. 5408021
|EAN 4012196591671
Item no. / Type
5408021 / isCon con 2
Smallest selling unit: 2 piece
2piece
piece
Description
• For the isCon® Basic and Professional cable
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 150 kA (lightning protection class II)
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 150 kA (lightning protection class II)
Technical data
Technical data
| Lightning current carrying capacity | H1/150 kA |
|---|---|
| Fit | 20 mm |
| Dimension | Ø20mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 20 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0668 kg CO2e / 1 Piece |

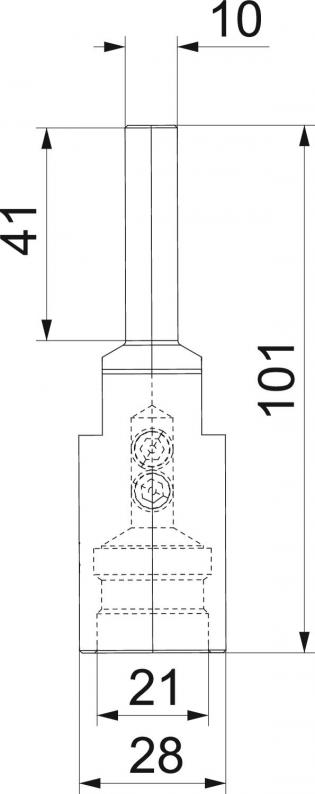

Dimensions
| Dimension d min. | 28 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon con 2
H1/150
28
20
5408021
isCon con 2
Item no.
5408021
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
