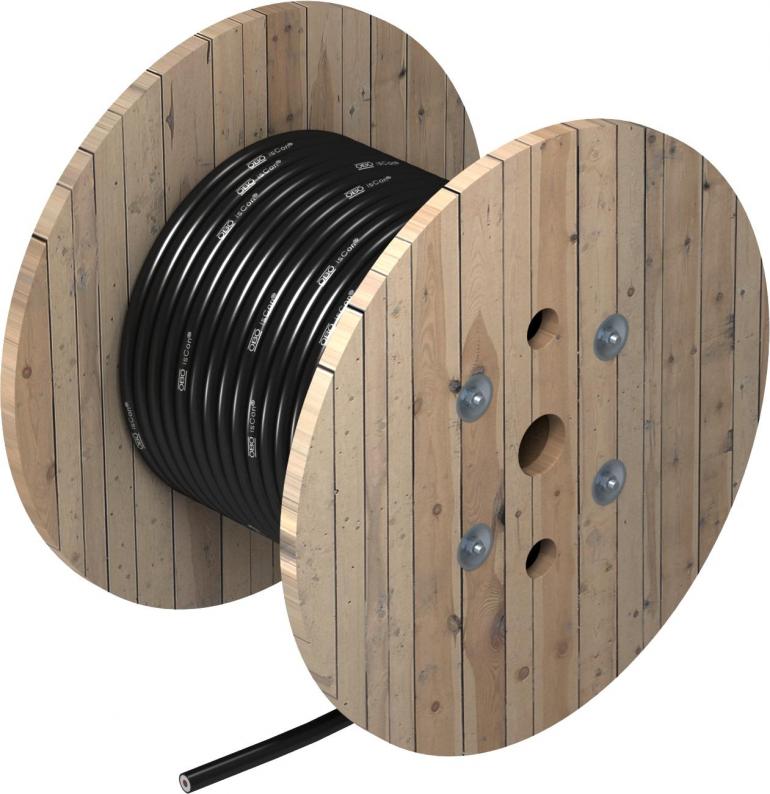

isCon® conductor, Professional black
Type isCon Pro 75 SW
|Item no. 5408008
|EAN 4012196591640
Item no. / Type
5408008 / isCon Pro 75 SW
Equivalent separating distance s(e)/m (in air)
0,75
Nomal ring (approx. m)
100
Smallest selling unit: 100 m
100m
m
Description
Please refer to the mounting instructions for information on routing the OBO isCon® Pro conductor.
• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m
• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m
Technical data
Technical data

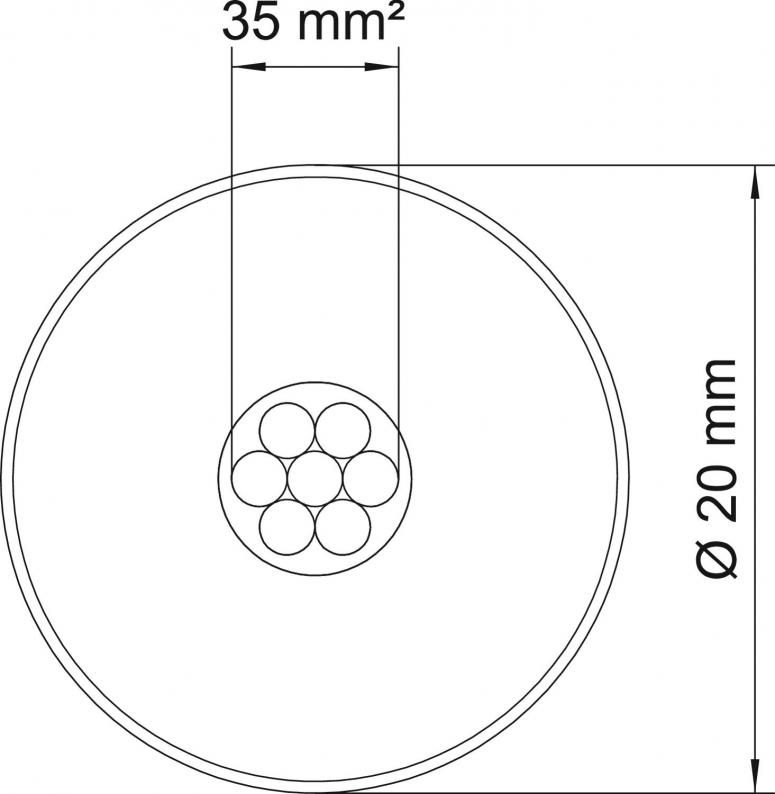

| Diameter | 20 mm |
|---|---|
| High voltage-resistant, insulated version | yes |
| Number of individual wires | 7 |
| Material property | Miscellaneous |
| Material jacket | EVA |
| Equivalent separating distance s(e)/m (in air) | 0,75 |
| Cross-section | 35 mm² |
| Nomal ring (approx. m) | 100 |
| Dimension | Ø20mm |
| Colour | Black |
| Length tolerance ± | 5 % |
