isCon® conductor, Premium black

isCon® conductor, Premium black

Type isCon PR 90 SW
|
Item no. 5408018
|
EAN 4012196591657
Show all variants
Item no. / Type
5408018 / isCon PR 90 SW
Equivalent separating distance s(e)/m (in air)
0,9
Nomal ring (approx. m)
100

Smallest selling unit: 100 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Please refer to the mounting instructions for information on routing the OBO isCon® Premium conductor.

• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 4.2 kWh/m



  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine

Technical data

Technical data

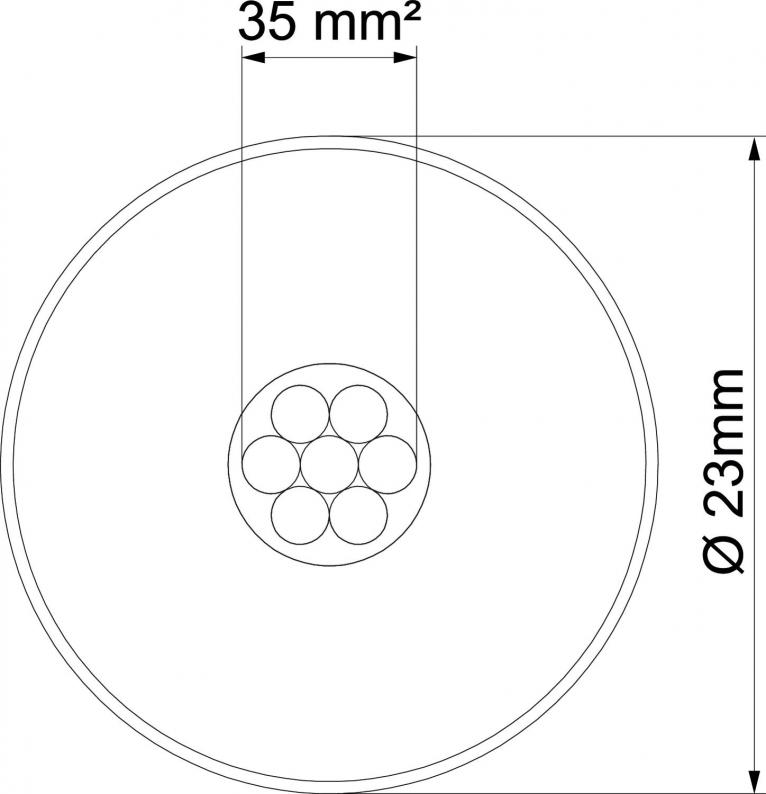

Diameter23 mm
High voltage-resistant, insulated versionyes
Number of individual wires7
Material propertyMiscellaneous
Material jacketEVA
Equivalent separating distance s(e)/m (in air)0,9
Cross-section35 mm²
Nomal ring (approx. m)100
DimensionØ23mm
ColourBlack
Length tolerance ±5 %

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Certificates (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Type
isCon IN con PRE

Smallest selling unit: 1 piece

piece

Item no. 5408036

Potential connection
Type
isCon PAE

Smallest selling unit: 2 piece

piece

Type
isCon H VA

Smallest selling unit: 50 piece

piece

Variants

isCon PR 90 SW
Item no.
5408018
Diameter
23
Equivalent separating distance s(e)/m (in air)
0,9
Cross-section
35
Nomal ring (approx. m)
100
