Hexagonal M6 F
Type SKS 6x20 F
|Item no. 3156516
|EAN 4012195255970
Item no. / Type
3156516 / SKS 6x20 F
Thread metric
6
WAF
10
Material
Steel
Smallest selling unit: 100 piece
100piece
piece
Description

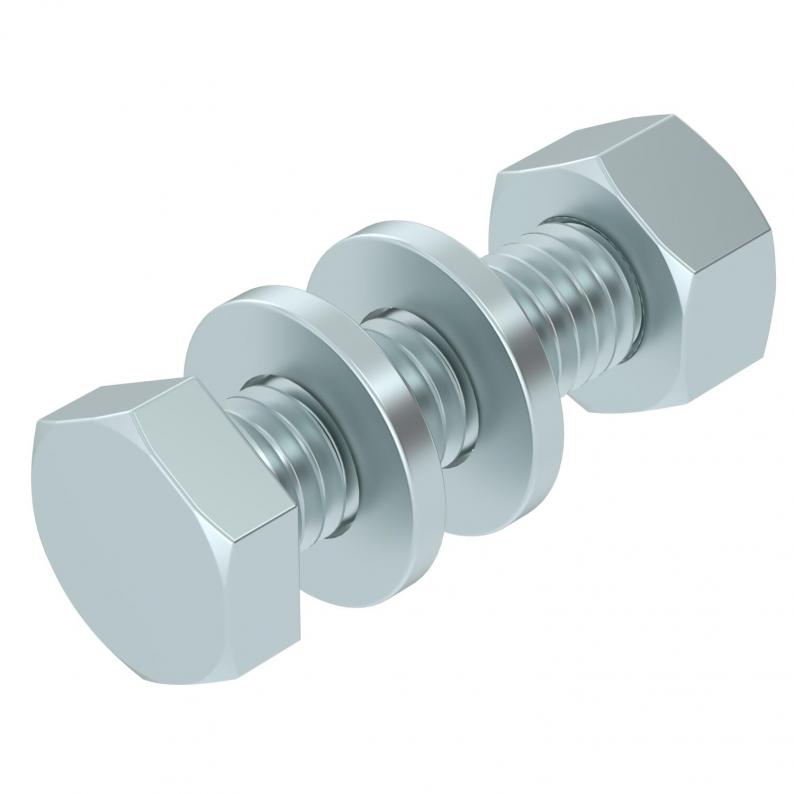

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
Technical data
Dimensions
| Length | 20 mm |
|---|---|
| Dimension L | 20 mm |
| Dimension d | 6 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M 6 x 20 |
| Resistance grade | 5.6 |
| With washer | yes |
| With nut | yes |
| Self-locking | no |
| Thread increase | 1 mm |
| With flange | no |
| WAF | 10 |
| Screw system | Hexagonal |
| Full thread | yes |
| Thread length | 20 mm |
| Thread type | Metric |
| Dimension | M6x20 |
| Surface | Hot galvanized |
| Material | Steel |
| Colour | zinc |
| Left thread | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0261 kg CO2e / 1 Piece |
