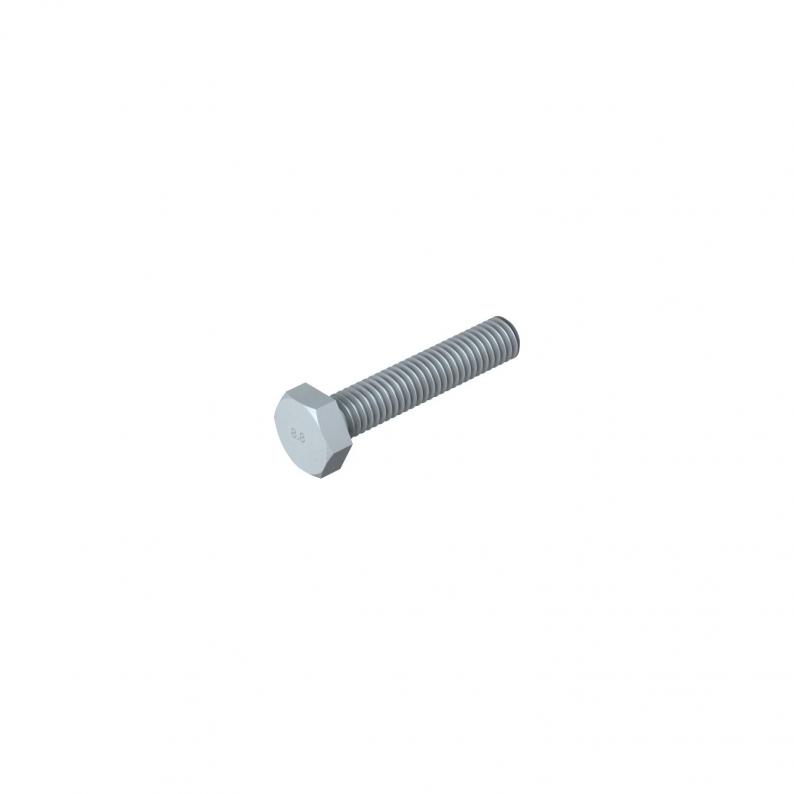

Hexagonal bolt DIN 933

Hexagonal bolt DIN 933

Type SKS M6x40 ZL
|
Item no. 3156712
|
EAN 4012196687367
Show all variants
Item no. / Type
Dimension L
Thread metric
Dimension d
WAF
Material
Steel

Smallest selling unit: 100 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Hexagonal bolt according to DIN 933 with metric thread. Resistance grade at least 8.8.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

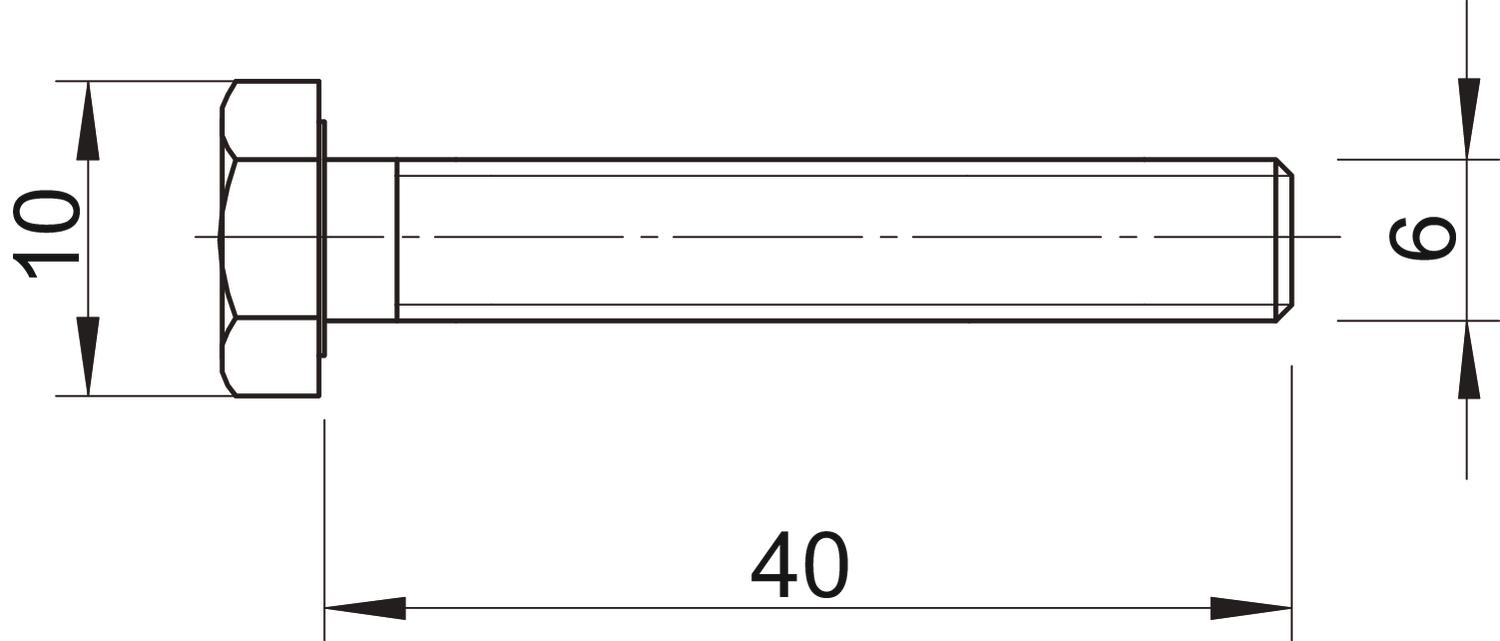

Dimensions

Length40 mm
Dimension L40 mm
Dimension d6 mm

Materials and Packaging

Packaging without plasticyes

Technical data

Thread metric6
ThreadM6
Resistance grade8.8
With washerno
With nutno
Self-lockingno
With flangeno
WAF10
Screw systemHexagonal
Full threadyes
Thread length40 mm
Thread typeMetric
DimensionM6x40
SurfaceZinc slat
MaterialSteel
Left threadno

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,0222 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Dimension L
Thread metric
Dimension d
WAF
SKS M6x16 ZL
Item no.
3156706
Dimension L
16
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M6x20 ZL
Item no.
3156708
Dimension L
20
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M6x30 ZL
Item no.
3156710
Dimension L
30
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M6x40 ZL
Item no.
3156712
Dimension L
40
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M6x55 ZL
Item no.
3156715
Dimension L
55
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M6x60 ZL
Item no.
3156716
Dimension L
60
Thread metric
6
Dimension d
6
WAF
10
Material
Steel
SKS M8x20 ZL
Item no.
3156728
Dimension L
20
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M8x30 ZL
Item no.
3156730
Dimension L
30
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M8x40 ZL
Item no.
3156732
Dimension L
40
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M8x50 ZL
Item no.
3156734
Dimension L
50
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M8x60 ZL
Item no.
3156736
Dimension L
60
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M8x80 ZL
Item no.
3156738
Dimension L
80
Thread metric
8
Dimension d
8
WAF
13
Material
Steel
SKS M10x20 ZL
Item no.
3156758
Dimension L
20
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x40 ZL
Item no.
3156762
Dimension L
40
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x50 ZL
Item no.
3156764
Dimension L
50
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x60 ZL
Item no.
3156766
Dimension L
60
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x70 ZL
Item no.
3156768
Dimension L
70
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x80 ZL
Item no.
3156770
Dimension L
80
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M10x100 ZL
Item no.
3156774
Dimension L
100
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS M12x30 ZL
Item no.
3156788
Dimension L
30
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
SKS M12x40 ZL
Item no.
3156790
Dimension L
40
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
SKS M12x50 ZL
Item no.
3156792
Dimension L
50
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
SKS M12x60 ZL
Item no.
3156794
Dimension L
60
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
SKS M12x80 ZL
Item no.
3156796
Dimension L
80
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
SKS M12x100 ZL
Item no.
3156799
Dimension L
100
Thread metric
12
Dimension d
12
WAF
19
Material
Steel
