Heavy-duty mesh cable tray SGR 155 G

Heavy-duty mesh cable tray SGR 155 G

Type SGR 155 200 G IN
Item no. 6003678
EAN 4012197463250
Show all variants
Item no. / Type
Length
Width
Height
Wire diameter

Smallest selling unit: 3 m

m

Description

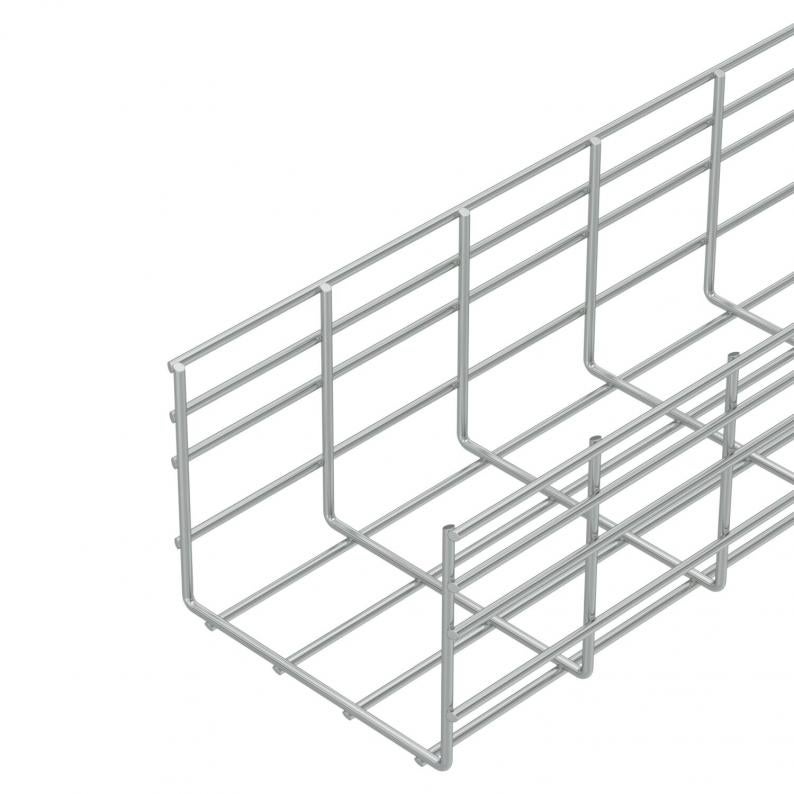

Mesh cable tray made of spot-welded steel wire of side height 155 mm.
Magnetic shield insulation, without cover 15 dB, with cover 25 dB.

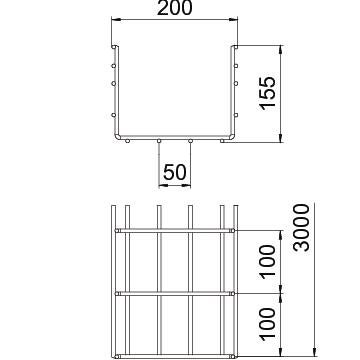

The grid dimension is 50 x 100 mm.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Length3000 mm
Width200 mm
Height155 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Integrated partitionWithout
Screwless connectorno
Profile shapeU-shaped
Wire diameter6 mm
Dimension155x200x3000
SurfaceElectrogalvanised
MaterialSteel

Loads

Support spacing 1.0 m3,1 kN/m
Support spacing 1.5 m1,8 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,9 kN/m
Support spacing 3.0 m0,7 kN/m
Support spacing 3.5 m0,6 kN/m
Support spacing 4.0 m0,5 kN/m

Downloads

0 selected

Data sheet (1)
Declarations (1)
Product images (2)
Tender specifications (1)

Variants

Width
Usable cross-section
SGR 155 200 G IN
Item no.
6003678
Length
3000
Width
200
Height
155
Maintain electrical functions
no
Wire diameter
6
SGR 155 300 G
Item no.
6003681
Length
3000
Width
300
Height
155
Maintain electrical functions
no
Usable cross-section
438
Wire diameter
6
SGR 155 450 G
Item no.
6003684
Length
3000
Width
450
Height
155
Maintain electrical functions
no
Usable cross-section
663
Wire diameter
6
SGR 155 500 G
Item no.
6003685
Length
3000
Width
500
Height
155
Maintain electrical functions
no
Usable cross-section
738
Wire diameter
6
SGR 155 600 G
Item no.
6003687
Length
3000
Width
600
Height
155
Maintain electrical functions
no
Usable cross-section
888
Wire diameter
6
