Head plate US 5 NOK FT
Type KUS 5 NOK FT
|Item no. 6348939
|EAN 4012196437771
Item no. / Type
6348939 / KUS 5 NOK FT
Smallest selling unit: 1 piece
1piece
piece
Description

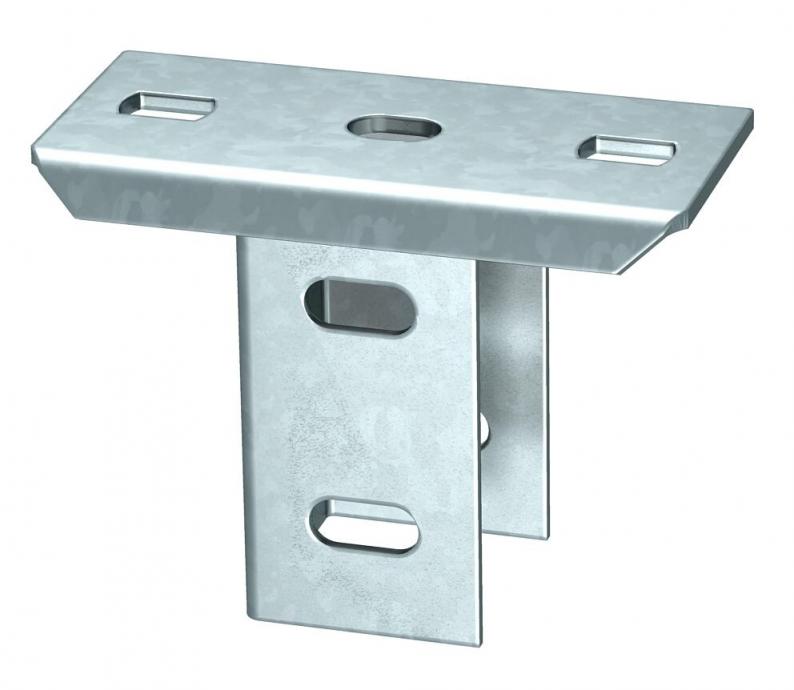

Head plate with U support mounting rotated 90°.
When installing the head plate, please use the spacer, type DSK 45.
Technical data

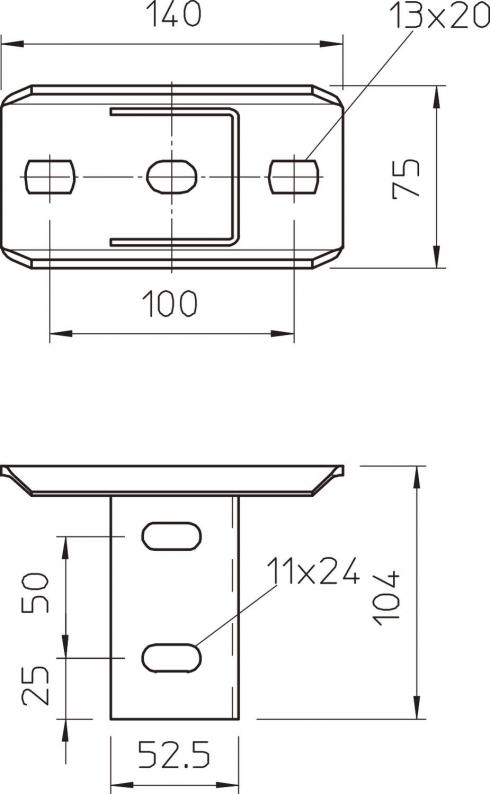

Dimensions
| Length | 140 mm |
|---|---|
| Width | 75 mm |
| Height | 104 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Dimension | 140x75x104 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4169 kg CO2e / 1 Piece |
