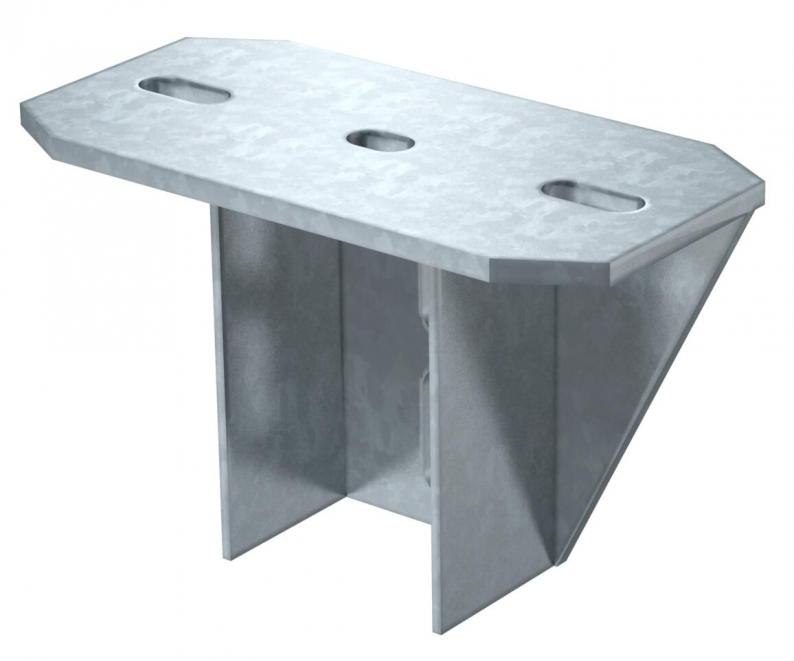

Head plate, heavy duty FT
Type KU 7 NOX FT
|Item no. 6349056
|EAN 4012196191352
Item no. / Type
6349056 / KU 7 NOX FT
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy duty head plate for installation in US 7 support.
Please order fastening material (two truss-head bolts FRS 12 x 25) separately.
Technical data

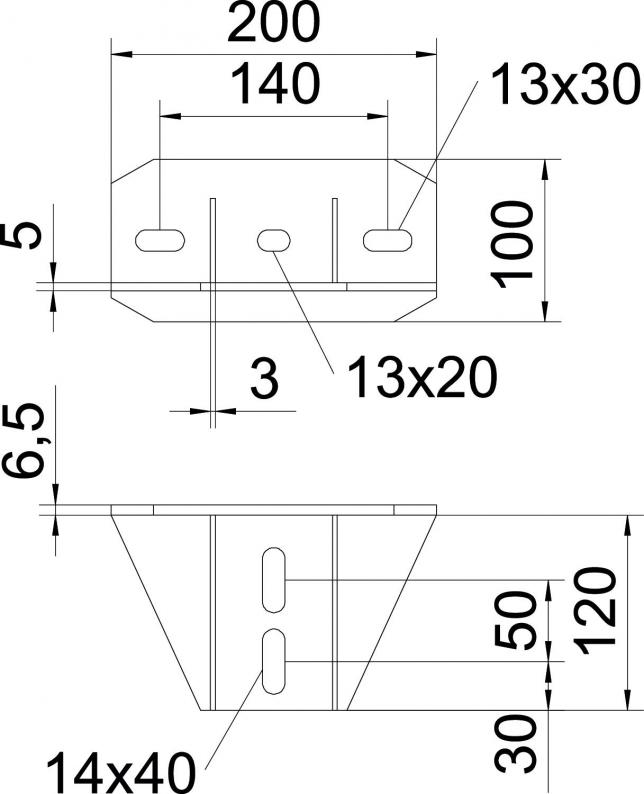

Dimensions
| Length | 200 mm |
|---|---|
| Width | 100 mm |
| Height | 126,5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Dimension | 200x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
4,1354 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,1354 kg CO2e / 1 Piece |
|---|
