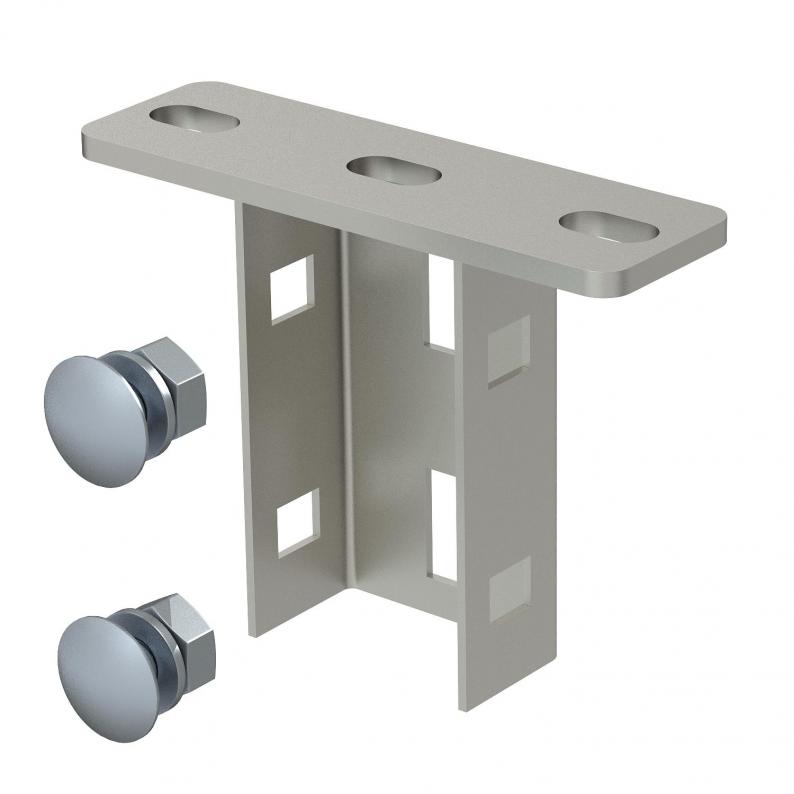

Head plate A2
Type KU 3 A2
|Item no. 6348876
|EAN 4012195706014
Item no. / Type
6348876 / KU 3 A2
Smallest selling unit: 1 piece
1piece
piece
Description
Head plate for mounting on US 3 supports.
The head plate can be mounted to fixed lengths of the U support, type US 3.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 130 mm |
|---|---|
| Width | 40 mm |
| Height | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Dimension | 130x40x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,4608 kg CO2e / 1 Piece |
