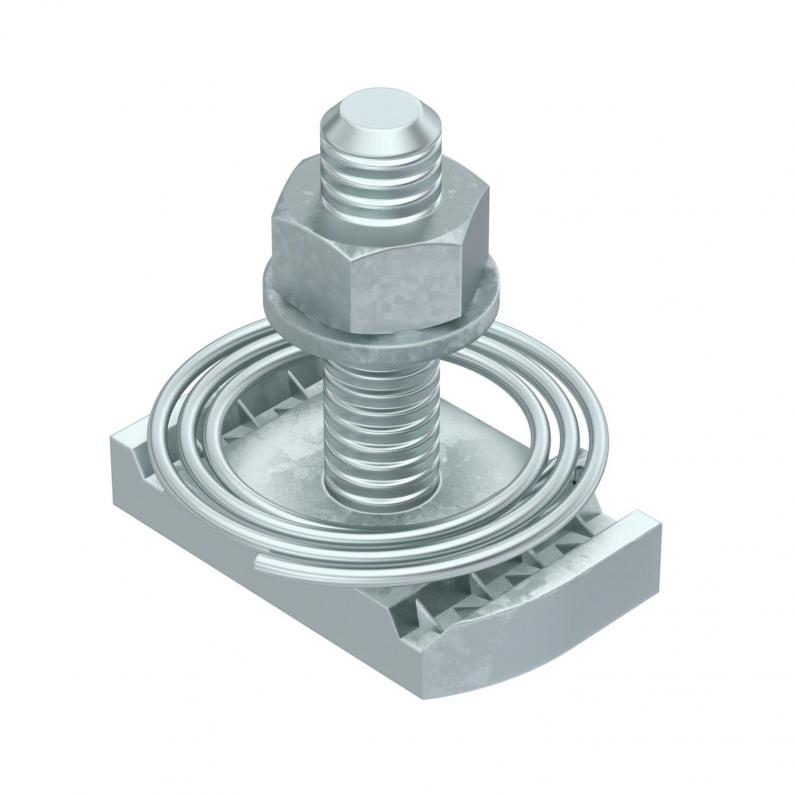

Hammer-head bolt with spring ZL
Type MS41HBF M8x30 ZL
|Item no. 1148352
|EAN 4012197431020
Item no. / Type
1148352 / MS41HBF M8x30 ZL
Thread
M8x30
Smallest selling unit: 50 piece
50piece
piece
Description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails.
Technical data
Dimensions
| Length | 36 mm |
|---|---|
| Width | 35 mm |
| Height | 20 mm |
| Dimension L | 30 mm |
| Dimension H | 6 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Washer Ø | 10 mm |
| Thread | M8x30 |
| Suitable for mounting rail | yes |
| Torque | 8 Nm |
| Dimension | M8x30mm |
| Surface | Zinc slat |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1432 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Thread
Item no.
MS41HBF M8x30 ZL
36
35
20
M8x30
1148352
MS41HBF M8x30 ZL
Item no.
1148352
Length
36
Width
35
Height
20
Thread
M8x30
