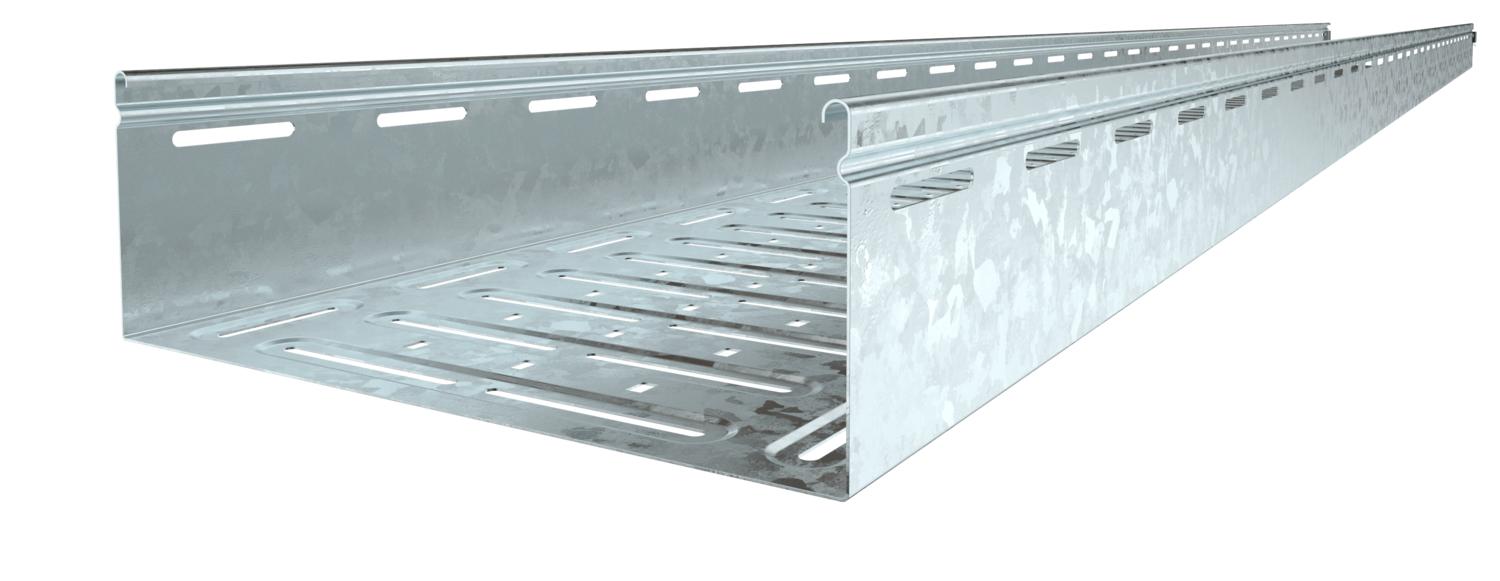

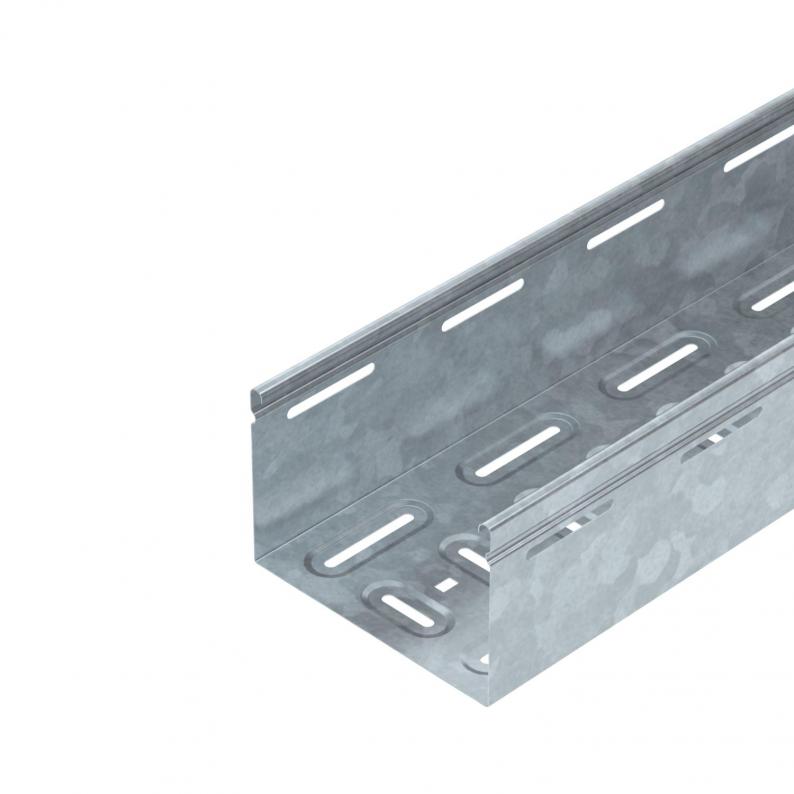

GX cable tray, perforated, FT
Type GKS GX 115 FT
|Item no. 6483052
|EAN 4012195506638
Item no. / Type
Length
Width
Plate thickness
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
GKS 100 GX = perforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data

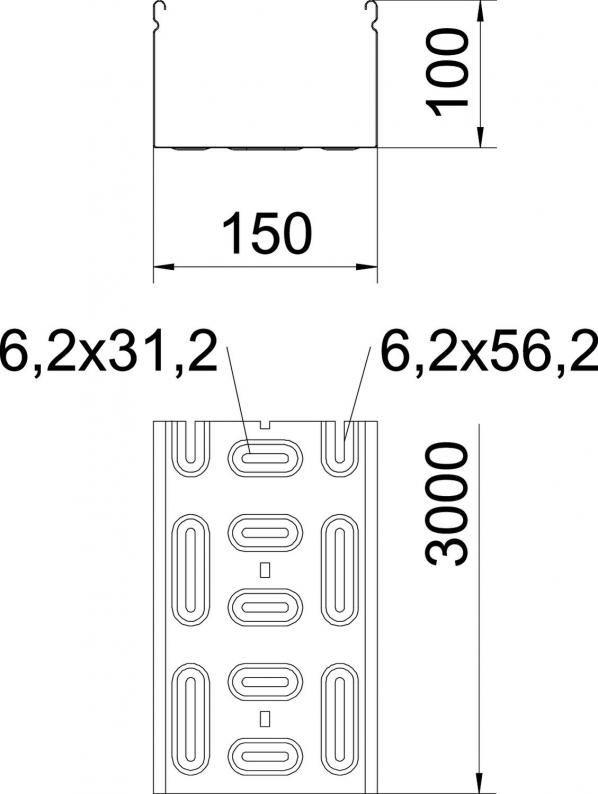

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 100 mm |
| Dimension L | 3000 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
| Dimension D | 25 mm |
Technical data
| Side perforation | yes |
|---|---|
| Wide-span version | no |
| Usable cross-section | 148 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,9 mm |
| Mounting perforation in base | yes |
| Usable cross-section | 14800 mm² |
| With cover | no |
| Dimension | 100x150x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 1,1 kN/m |
|---|---|
| Support spacing 2.5 m | 0,7 kN/m |
| Support spacing 1.0 m | 1,9 kN/m |
| Support spacing 1.5 m | 1,2 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Ab der Breite 100 mm mit Stoßstellenleiste geprüft
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Plate thickness
Surface
Material
Item no.
GKS GX 115 FT
3000
150
0,9
Hot-dip galvanised
Steel
6483052
GKS GX 120 FT
3000
200
0,9
Hot-dip galvanised
Steel
6483053
GKS GX 130 FT
3000
300
1
Hot-dip galvanised
Steel
6483054
GKS GX 140 FT
3000
400
1,2
Hot-dip galvanised
Steel
6483055
GKS GX 150 FT
3000
500
1,2
Hot-dip galvanised
Steel
6483056
