GKS GX 60 FT cable tray
Type GKS GX 605 FT
|Item no. 6483030
|EAN 4012197520335
Item no. / Type
Length
Width
Plate thickness
Smallest selling unit: 3 m
3m
m
Description

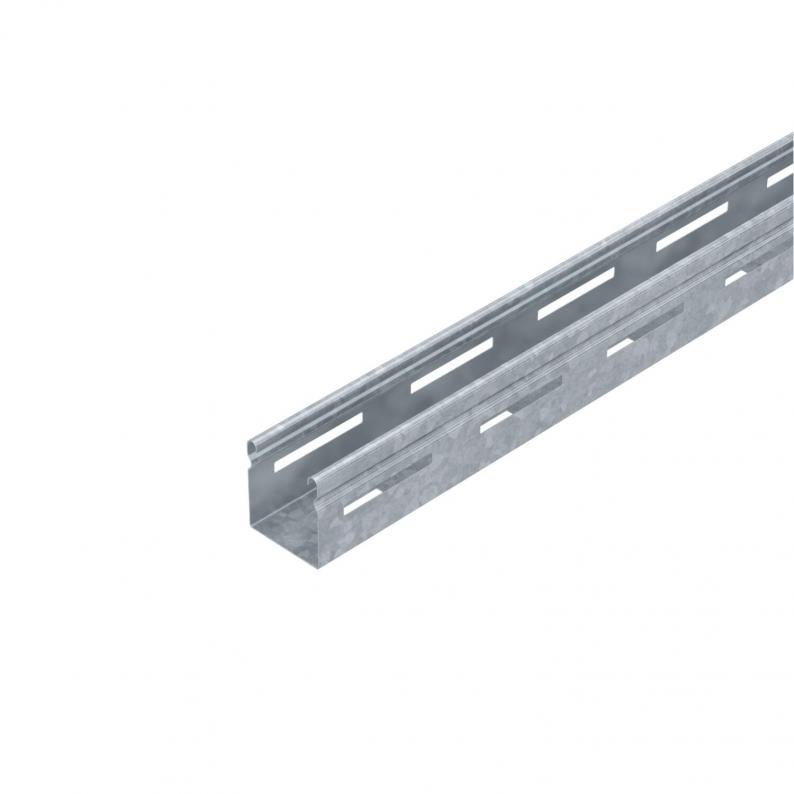

GKS 60 GX = perforated cable tray system with 60 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data

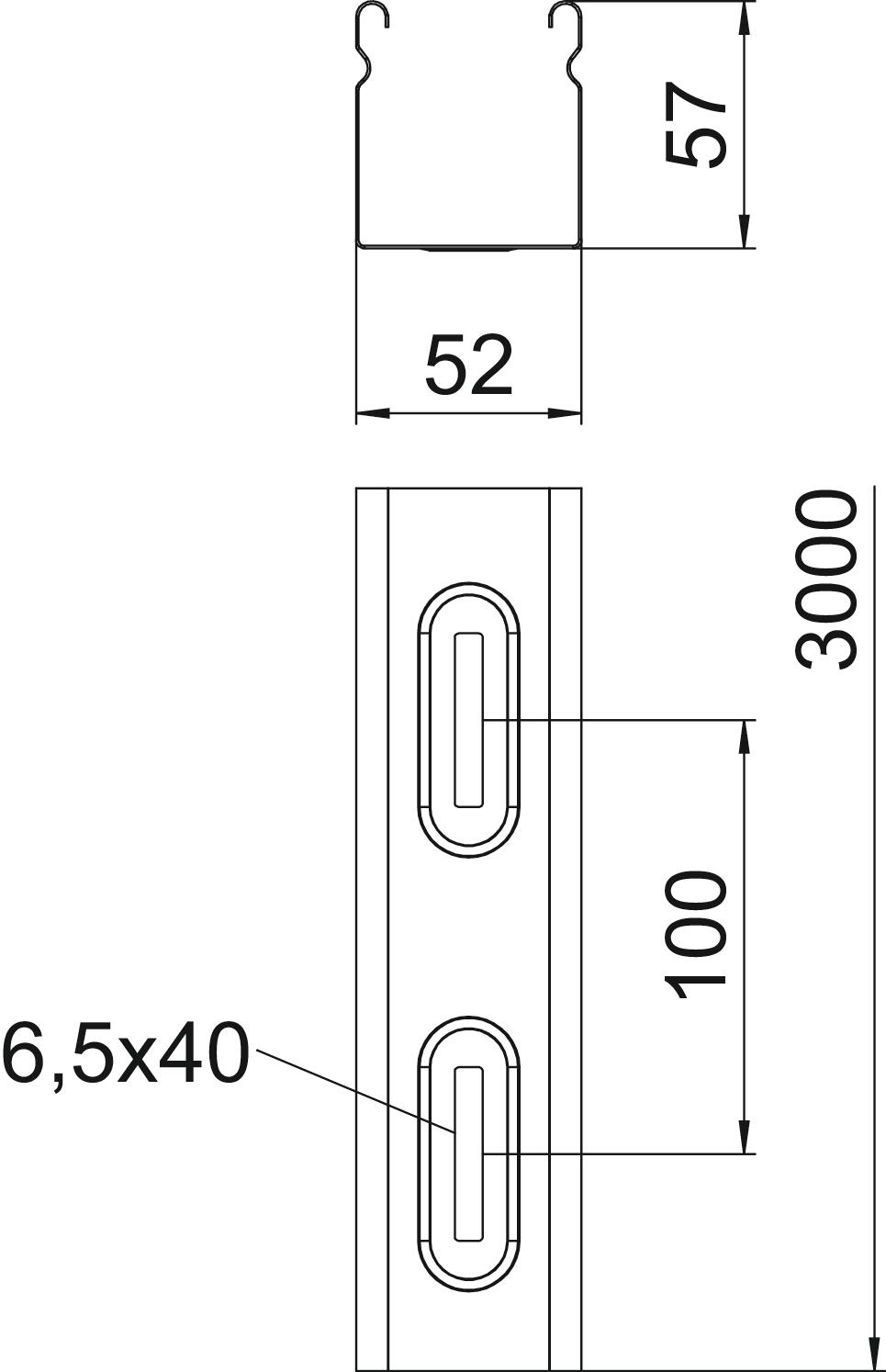

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 29 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,6 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 2900 mm² |
| ROHS-conformant | yes |
| Dimension | 60x50x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Loads
| Support spacing 1.0 m | 1,2 kN/m |
|---|---|
| Support spacing 1.5 m | 0,6 kN/m |
| Support spacing 2.0 m | 0,5 kN/m |
| Support spacing 2.5 m | 0,3 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
From a 100 mm width checked with joint plate
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
GKS GX 605 FT
3000
50
no
0,6
Hot-dip galvanised
Steel
6483030
GKS GX 610 FT
3000
100
no
0,6
Hot-dip galvanised
Steel
6483031
GKS GX 615 FT
3000
150
no
0,7
Hot-dip galvanised
Steel
6483032
GKS GX 620 FT
3000
200
no
0,7
Hot-dip galvanised
Steel
6483033
GKS GX 630 FT
3000
300
no
1
Hot-dip galvanised
Steel
6483034
GKS GX 640 FT
3000
400
no
1,2
Hot-dip galvanised
Steel
6483035
GKS GX 650 FT
3000
500
no
1,2
Hot-dip galvanised
Steel
6483036
