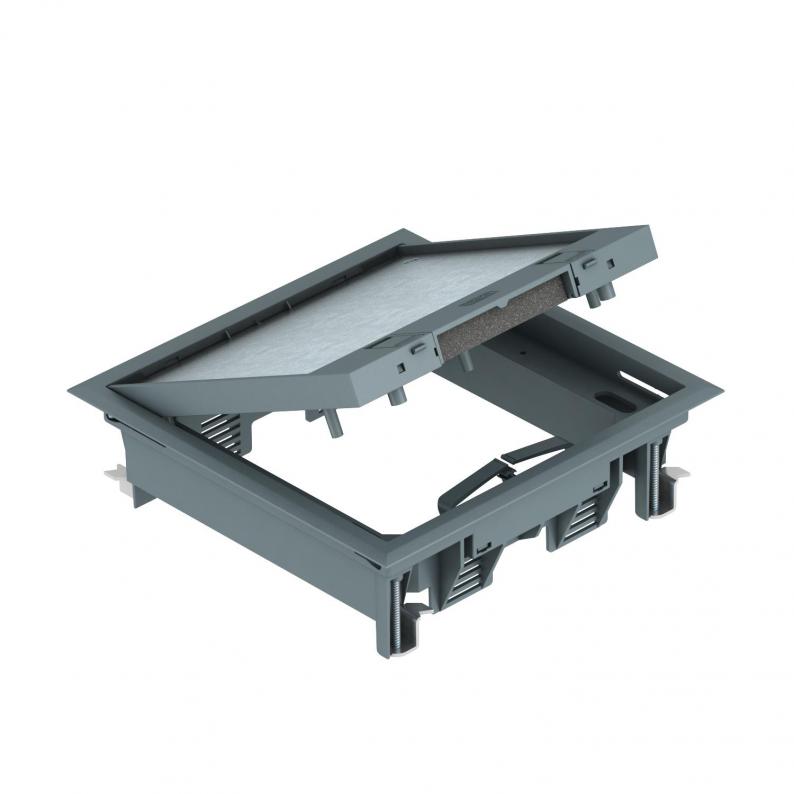

GES4 service outlet with locking slider
Type GES4-2U10T 7011
|Item no. 7405145
|EAN 4012195890645
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
4
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with locking slider for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in trunking systems and system floors in indoor areas.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Service outlet with locking slider, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Service outlet with locking slider, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Up to 4 installation devices can be used with 50 mm central plate.
Technical data

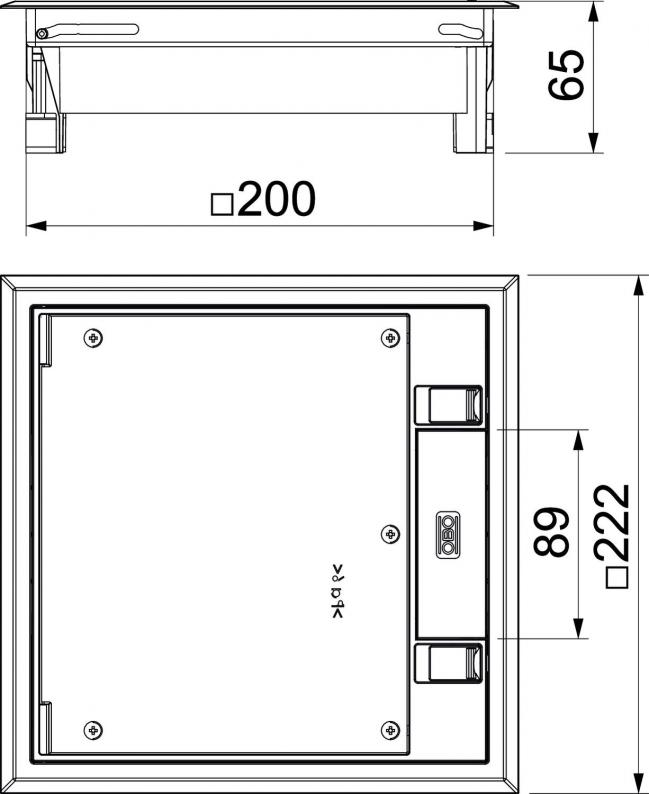

Dimensions
| Length | 222 mm |
|---|---|
| Width | 222 mm |
| Height | 65 mm |
Technical data
| Screed height, min. | 73 mm |
|---|---|
| Floor height, min. | 73 mm |
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 6 |
| Seal installation option | no |
| Length of installation dimensions | 201 mm |
| Wide installation dimensions | 201 mm |
| Length of external dimensions | 222 mm |
| Wide external dimensions | 222 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 2 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | UT3 |
| Heavy-duty version | no |
| Nominal size for device installation units | 4 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 2,000 N |
| Vertical load, large area | to 3,000 N |
| Version for | Square |
| Opening mechanism | Locking slider |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 75 mm |
| Dimension | 222x222x65 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6425 kg CO2e / 1 Piece |
| Floor covering thickness max. | 10 mm |
