GES4 service outlet with handle clamp
Type GES4 U 7011
|Item no. 7405196
|EAN 4012195102588
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
4
Smallest selling unit: 1 piece
1piece
piece
Description

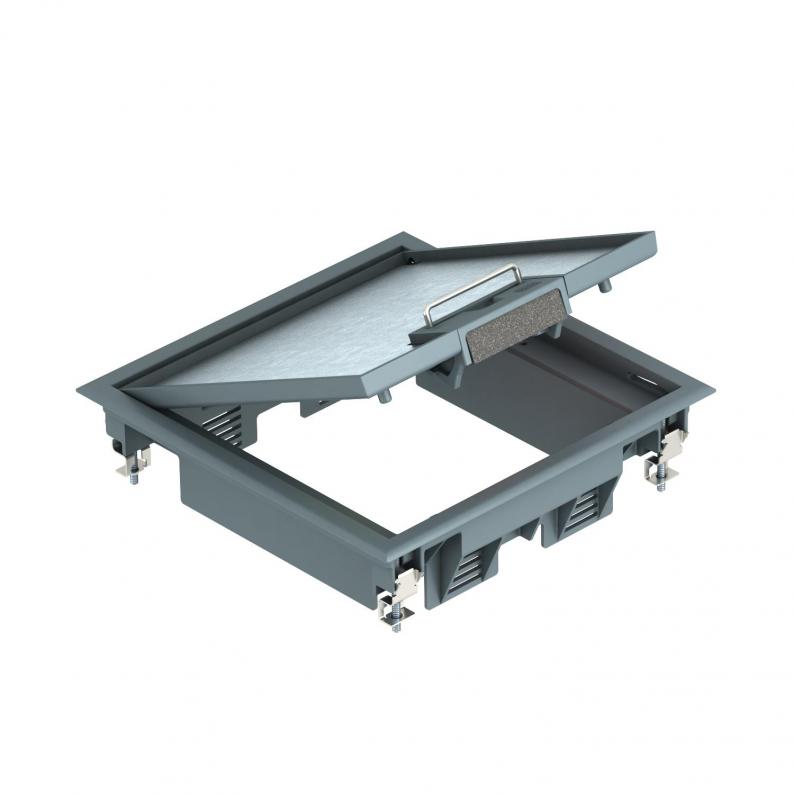

Service outlet with handle clamp for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in duct systems and system floors for indoor use.
Service outlet with handle clamp, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.
Service outlet with handle clamp, 2-compartment, for the installation of MT4 mounting support. Two type APMT2 cover plates can be installed.
Up to 4 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 72 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 6 |
| Seal installation option | no |
| Length of installation dimensions | 200 mm |
| Wide installation dimensions | 200 mm |
| Length of external dimensions | 217 mm |
| Wide external dimensions | 217 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 2 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | MT3 / GB2 |
| Heavy-duty version | no |
| Nominal size for device installation units | 4 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 2,000 N |
| Vertical load, large area | to 3,000 N |
| Version for | Square |
| Opening mechanism | Handle |
| Clamping range D, min. | 9 mm |
| Clamping range D, max. | 32 mm |

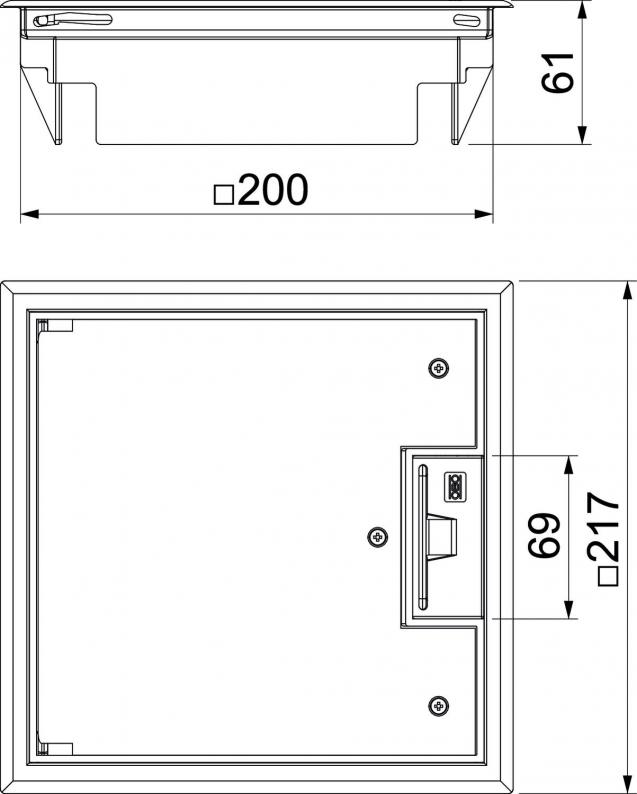

| Dimension | 217x217x61 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7939 kg CO2e / 1 Piece |
Dimensions
| Dimension h | 73 mm |
|---|
