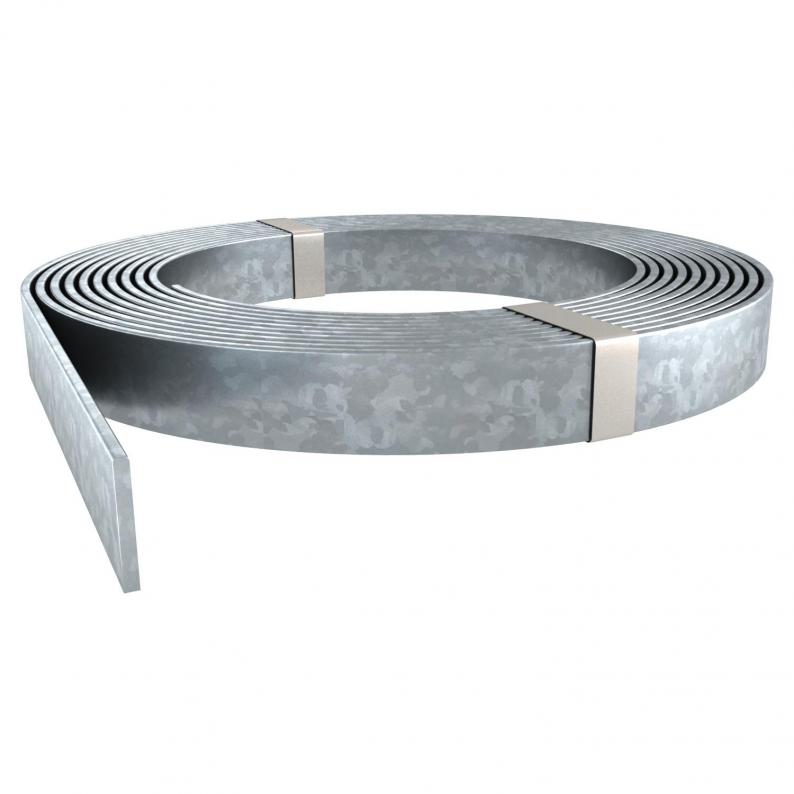

Galvanised steel flat conductor for earth
Type 5052 25x3 GI
Item no. 5450430
EAN 4012197007959
Item no. / Type
Smallest selling unit: 50 m
50m
m
Description
• According to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
Technical data
Technical data
| ROHS-conformant | yes |
|---|---|

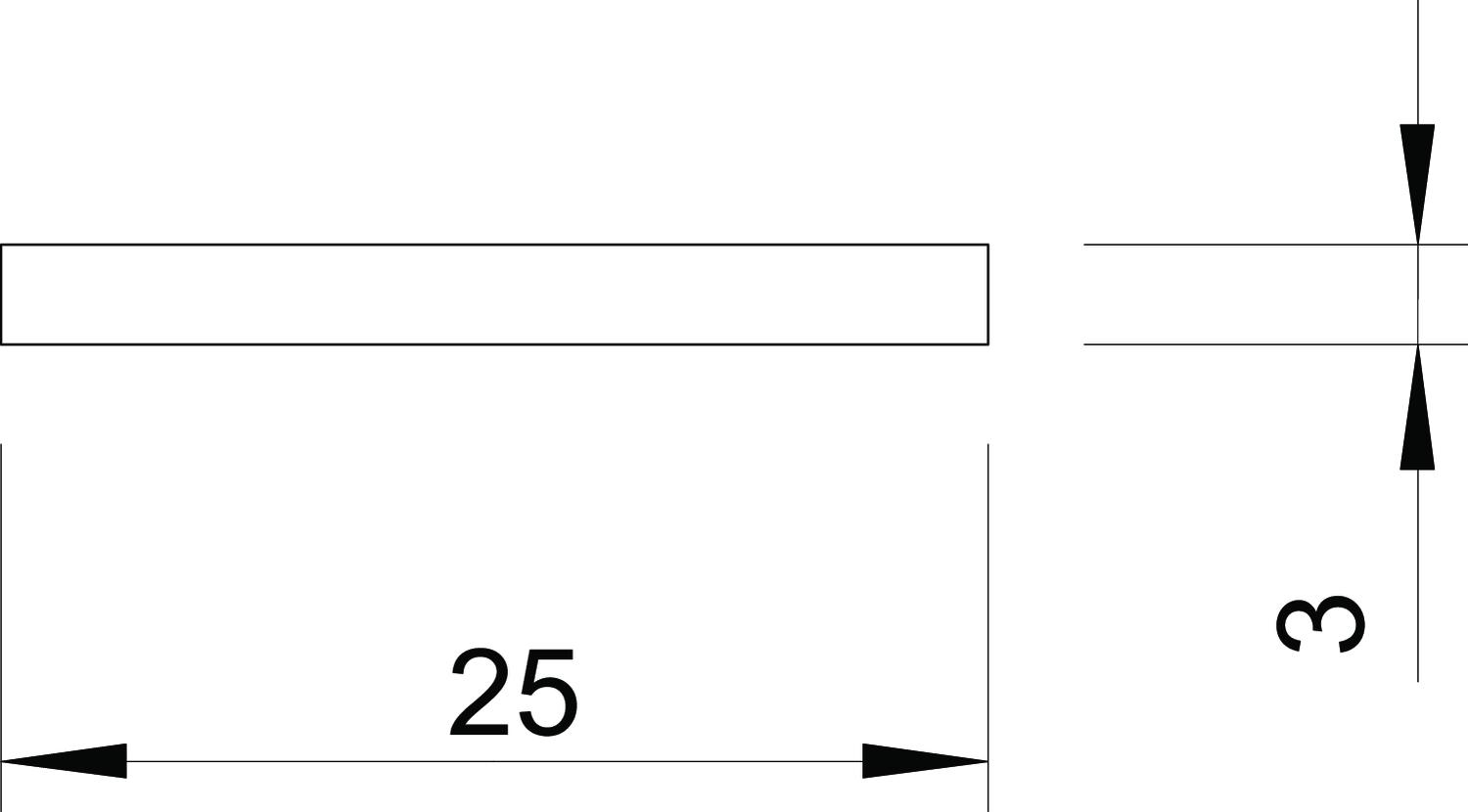

| Dimension | 25x3mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
5052 25x3 GI
5450430
5052 25x6 GI
5450431
5052 40x5 GI
40
5
5450439
5052 50x3 GI
5450443
5052 50x6 GI
5450444
5052 25x3 GI
Item no.
5450430
5052 25x6 GI
Item no.
5450431
5052 40x5 GI
Item no.
5450439
Width
40
Height
5
5052 50x3 GI
Item no.
5450443
5052 50x6 GI
Item no.
5450444
