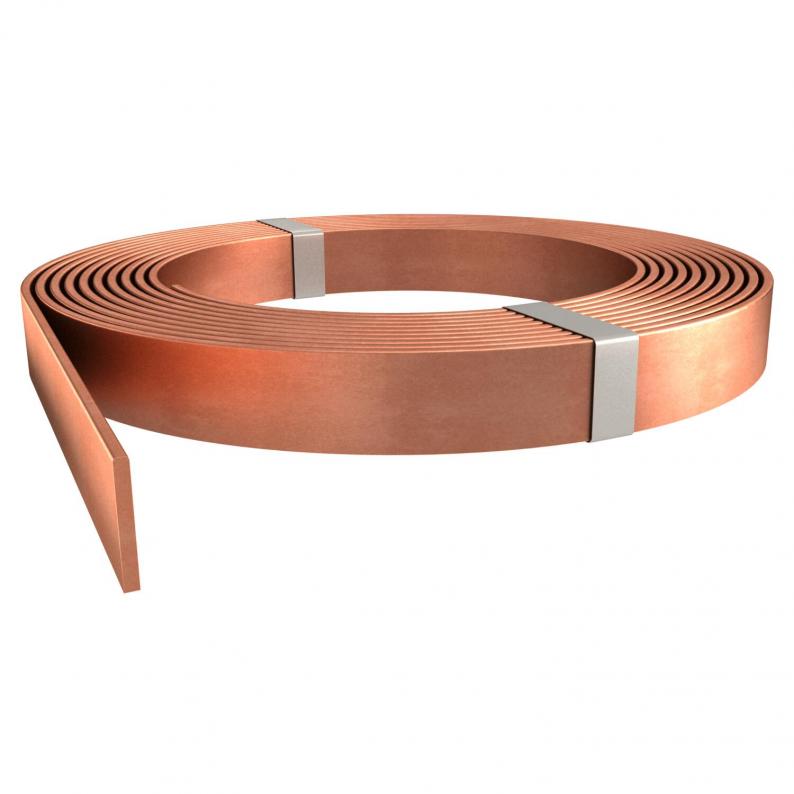

Flat conductor, copper
Type FL 25-CU PVC SW
|Item no. 5450460
|EAN 4012196880973
Item no. / Type
Smallest selling unit: 50 m
50m
m
Description
• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• For lightning protection, earthing systems and ring equipotential bonding
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• For lightning protection, earthing systems and ring equipotential bonding
Technical data

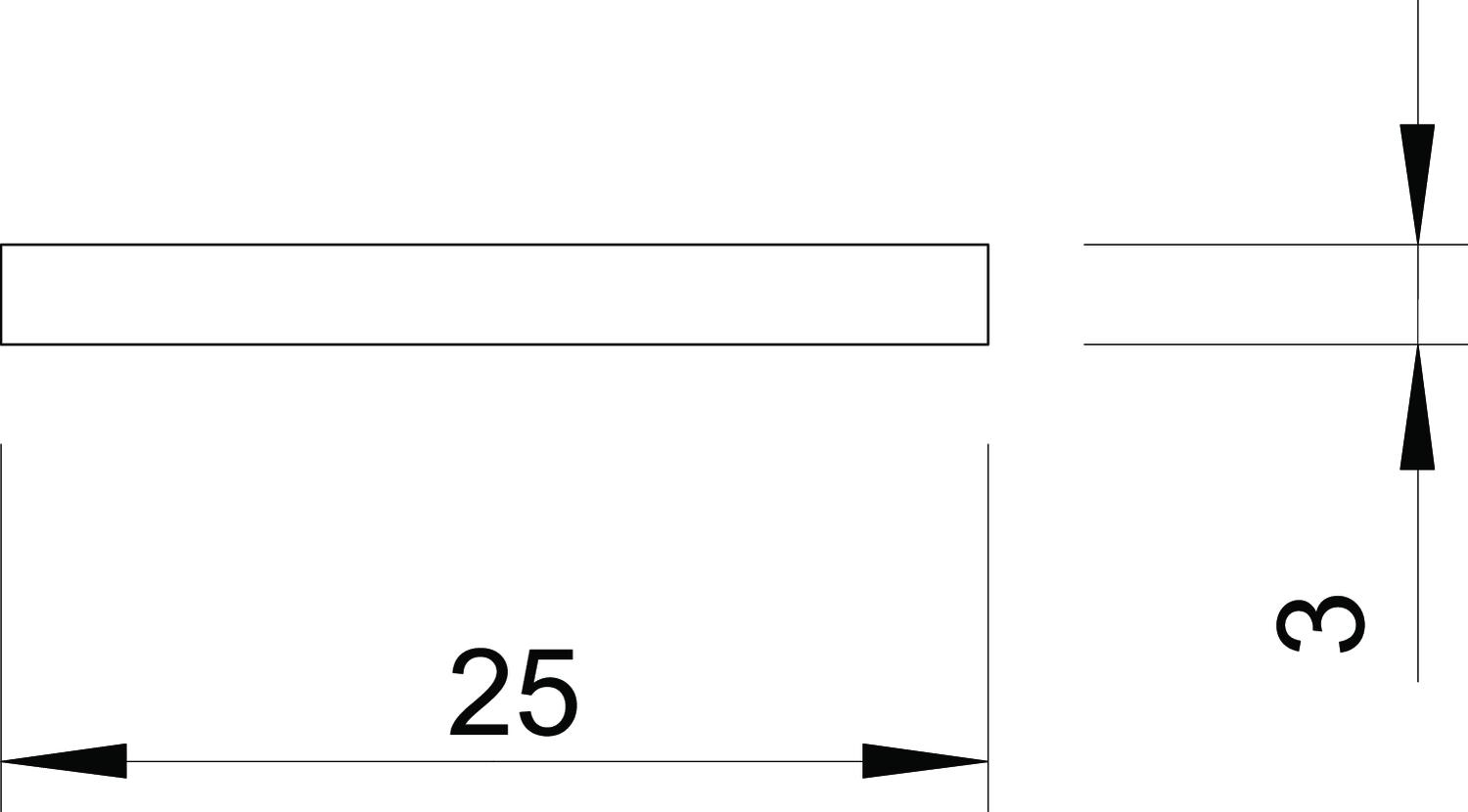

Dimensions
| Dimension B | 25 mm |
|---|---|
| Dimension H | 3 mm |
Technical data
| Cross-section | 75 mm² |
|---|---|
| Dimension | 25x3 mm |
| Material | Copper |
| Colour | Black |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Item no.
FL 25-CU PVC SW
5450460
FL 25-CU PVC BR
5450462
FL 25-CU PVC GN
5450464
FL 25-CU PVC GR
5450466
FL 25-CU PVC STG
5450468
FL 25-CU PVC WS
5450470
