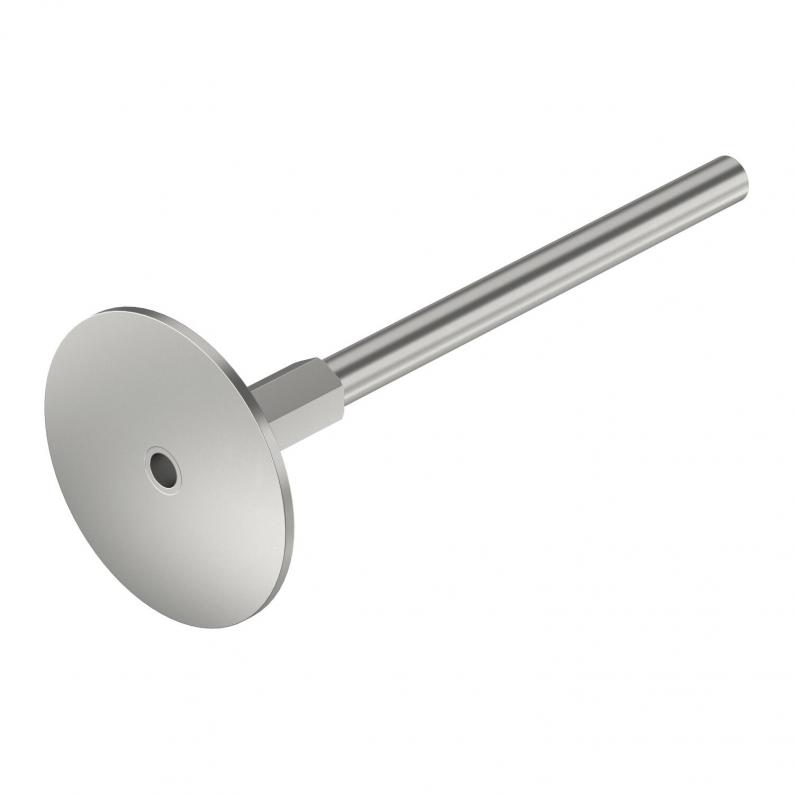

Fixed earthing terminal with axis and internal thread
Type 205 1M12 V4A
|Item no. 5450264
|EAN 4012197463984
Item no. / Type
Material of the connection bolt
Stainless steel, rustproof (V4A)
Smallest selling unit: 1 piece
1piece
piece
Description
• For connecting to earthing systems, conductors and reinforcements
• Contact plate: Ø 80 mm from stainless steel, rustproof (V4A)
• With M10 internal thread
• With connection bolt 203 mm (V4A)
• Contact plate: Ø 80 mm from stainless steel, rustproof (V4A)
• With M10 internal thread
• With connection bolt 203 mm (V4A)
Technical data

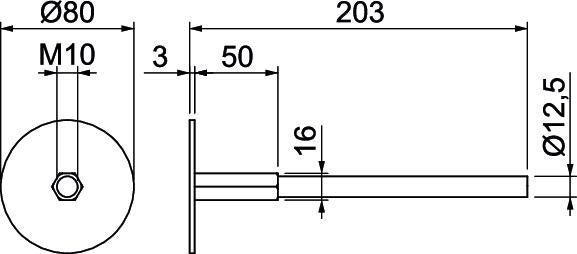

Dimensions
| Length | 203 mm |
|---|---|
| Diameter of the contact plate | 80 mm |
Technical data
| Thread | M10 |
|---|---|
| Diameter of the connection bolt | 203 mm |
| Material of the connection bolt | Stainless steel, rustproof (V4A) |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 5 kA |
| Dimension | M10 |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Type
Material of the connection bolt
Item no.
205 1M12 V4A
Stainless steel, rustproof (V4A)
5450264
205 1M16 V4A
Stainless steel, rustproof (V4A)
5450265
205 1M12 V4A-CU
Stainless steel, rustproof (V4A)
5450266
205 1M12 V4A
Item no.
5450264
Material of the connection bolt
Stainless steel, rustproof (V4A)
205 1M16 V4A
Item no.
5450265
Material of the connection bolt
Stainless steel, rustproof (V4A)
205 1M12 V4A-CU
Item no.
5450266
Material of the connection bolt
Stainless steel, rustproof (V4A)
