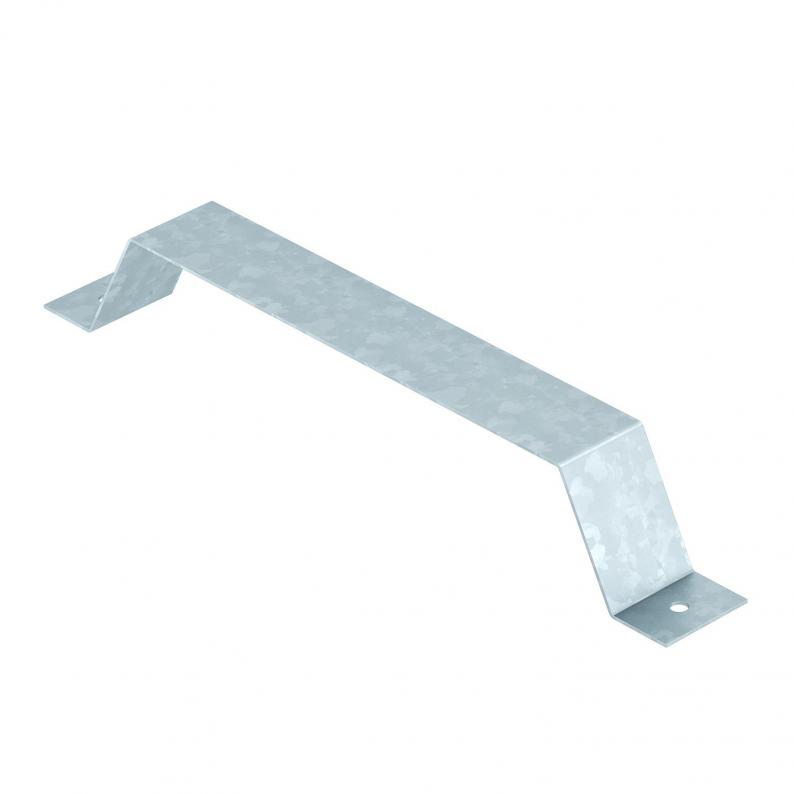

Fastening clamp for 2x PVC system, duct height 35 mm
Type DC2 9035
Item no. 7490172
EAN 4012196511440
Item no. / Type
7490172 / DC2 9035
Smallest selling unit: 20 piece
20piece
piece
Description
Fastening strap for 2 adjacent 1-compartment PVC trunking lengths of width 90 mm.
Technical data

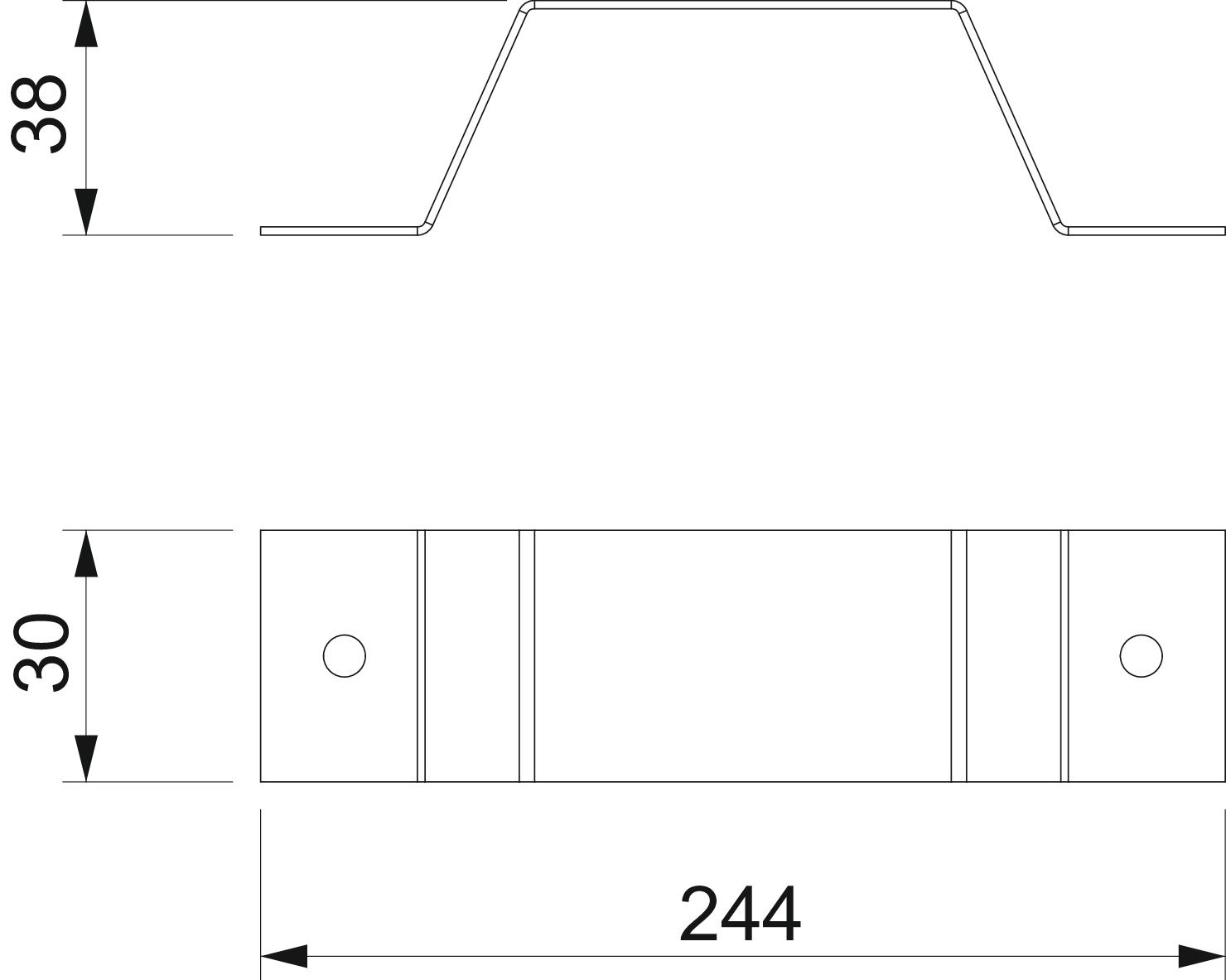

Dimensions
| Length | 245 mm |
|---|---|
| Width | 30 mm |
| Height | 38 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Trunking width, min. | 90 mm |
| Version for | Strap |
| ROHS-conformant | yes |
| Duct height, min. | 35 mm |
| Dimension | 244x30x38 |
| Surface | Strip galvanised |
| Material | Steel |
