Fastening clamp for 1x PVC system, duct height 35 mm
Type DC1 9035
Item no. 7490170
EAN 4012196511433
Item no. / Type
7490170 / DC1 9035
Smallest selling unit: 20 piece
20piece
piece
Description
Fastening strap for laid 1-compartment PVC duct of width 90 mm.
Technical data

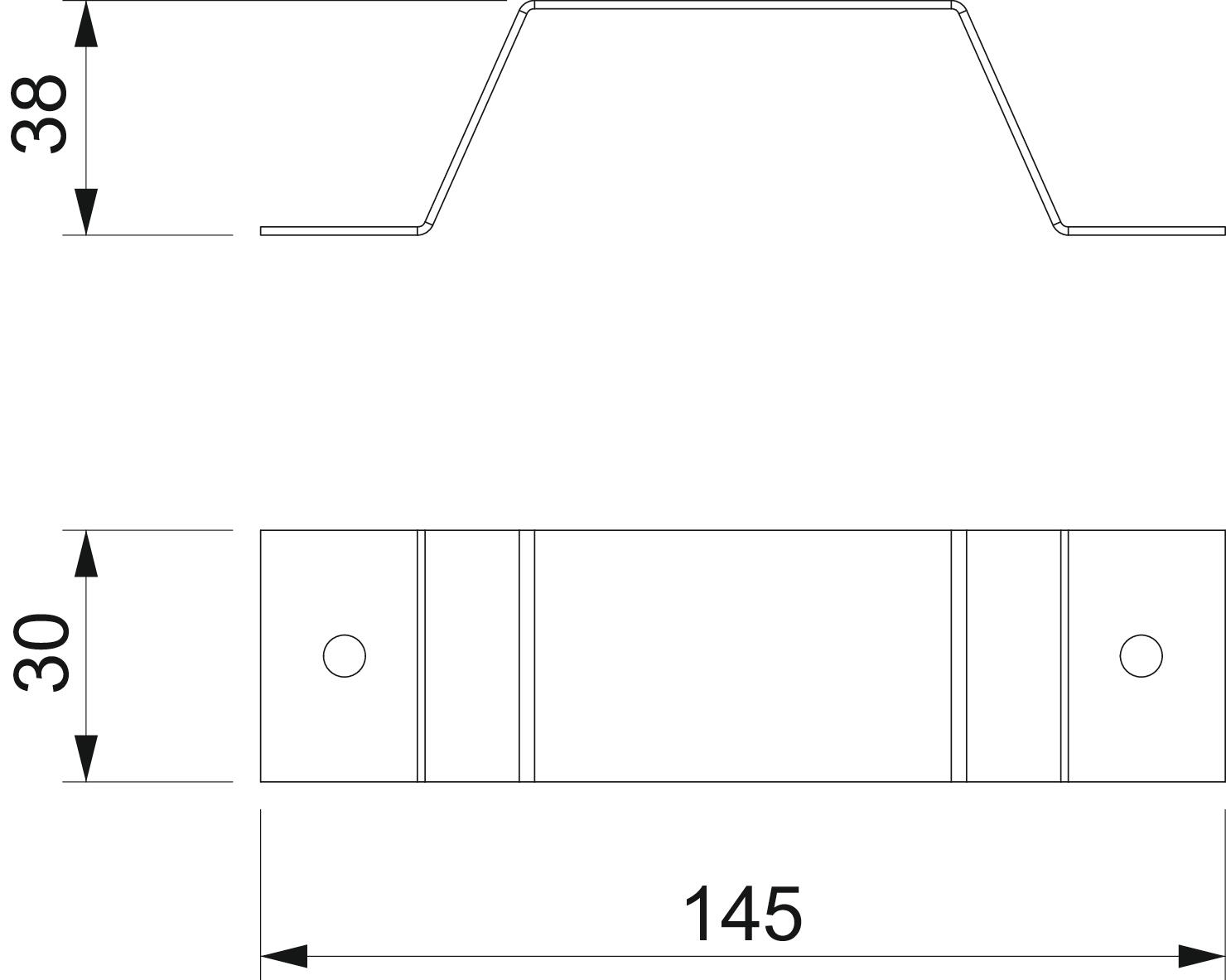

Dimensions
| Length | 145 mm |
|---|---|
| Width | 30 mm |
| Height | 38 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Trunking width, min. | 90 mm |
| Version for | Strap |
| ROHS-conformant | yes |
| Duct height, min. | 35 mm |
| Dimension | 145x30x38 |
| Surface | Strip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (2)
Product images (2)
Tender specifications (1)
