Fastening clamp for 1x PVC system, duct height 25 mm
Type DC1 6025
Item no. 7490160
EAN 4012196511419
Item no. / Type
7490160 / DC1 6025
Smallest selling unit: 20 piece
20piece
piece
Description

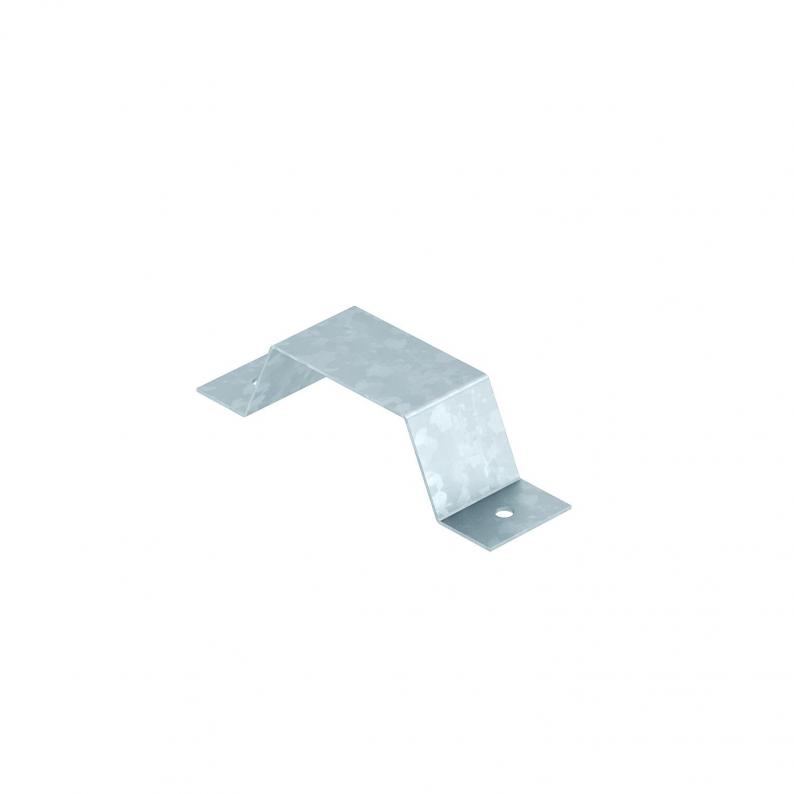

Fastening strap for laid 1-compartment PVC duct of width 60 mm.
Technical data

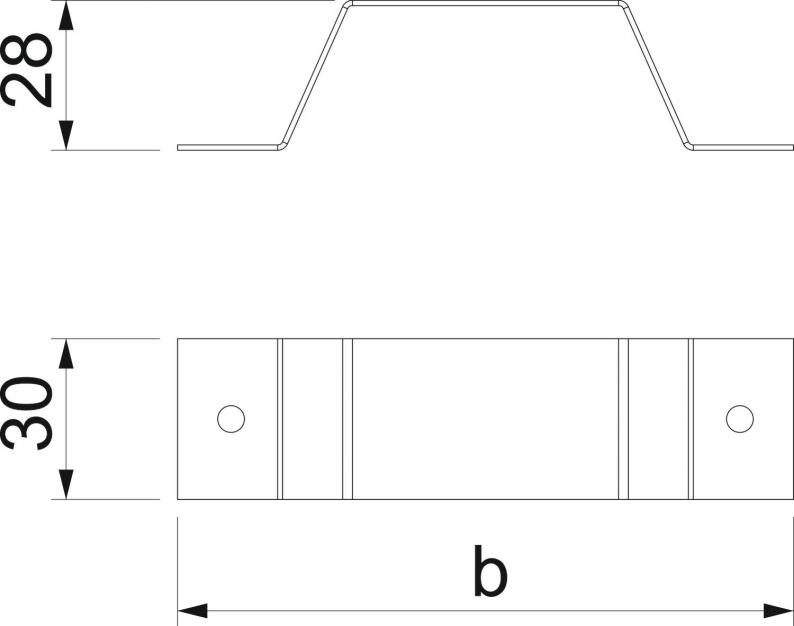

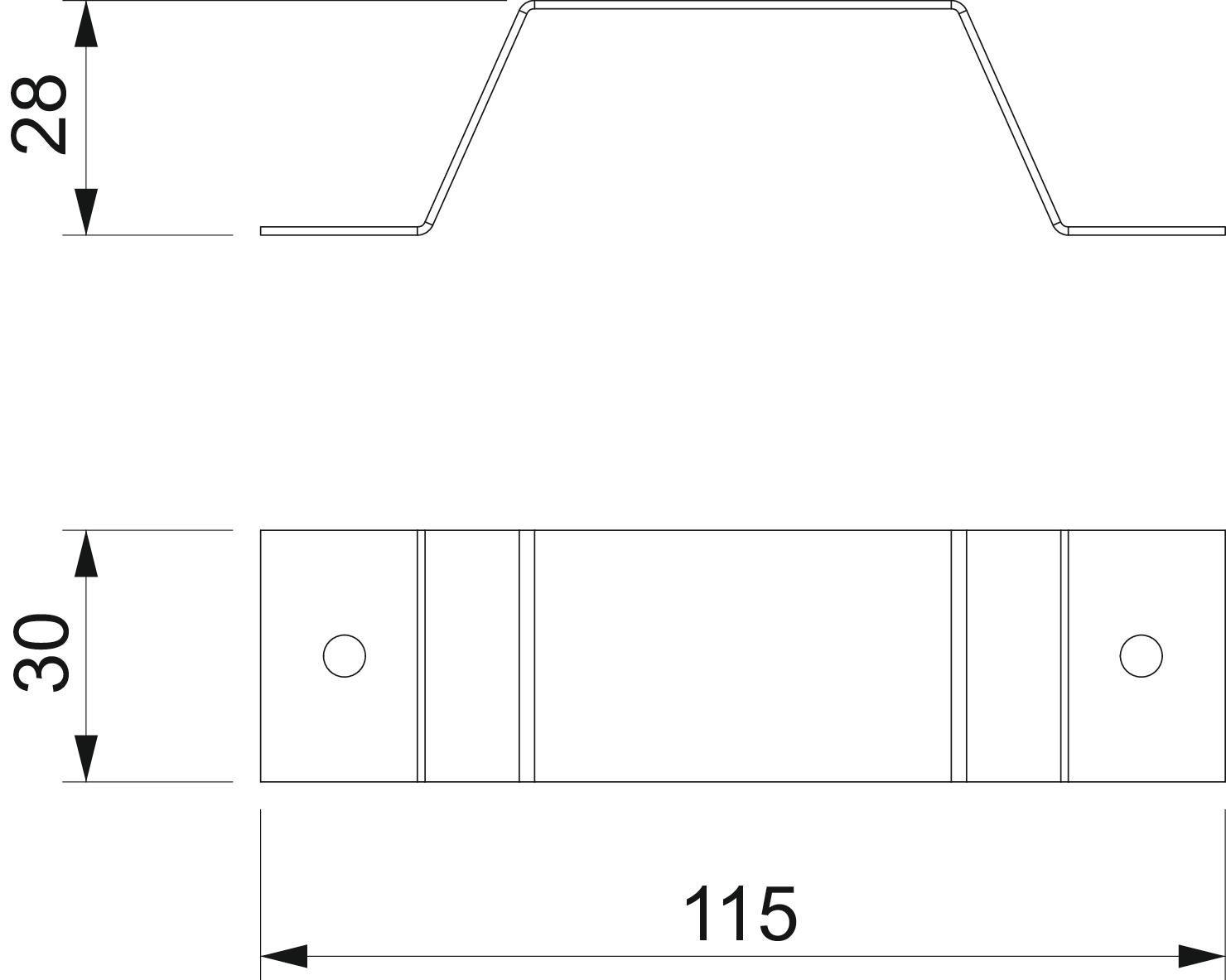

Dimensions
| Length | 115 mm |
|---|---|
| Width | 30 mm |
| Height | 28 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Trunking width, min. | 60 mm |
| Version for | Strap |
| ROHS-conformant | yes |
| Duct height, min. | 25 mm |
| Dimension | 115x30x28 |
| Surface | Strip galvanised |
| Material | Steel |
