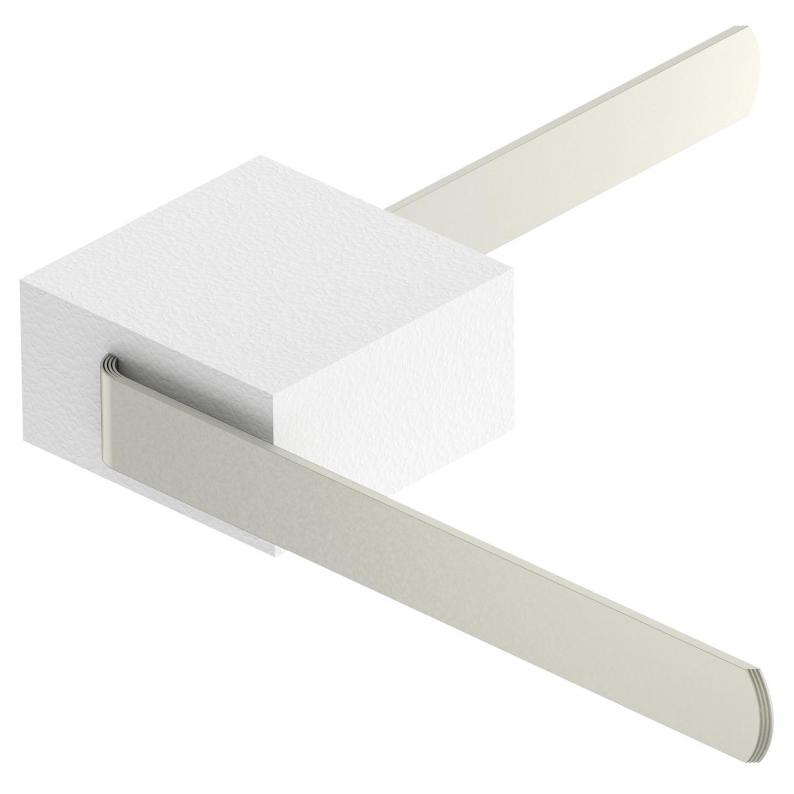

Expansion strip for foundation earth electrode systems
Type 1807 DB
|Item no. 5016160
|EAN 4012196561063
Item no. / Type
5016160 / 1807 DB
Smallest selling unit: 1 piece
1piece
piece
Description
• Expansion strip according to VDE 0185-561-2 (IEC 62561-2)
• With styrofoam block
• To pass the foundation earth electrode through movement joints
• With styrofoam block
• To pass the foundation earth electrode through movement joints
Technical data
Dimensions
| Length | 300 mm |
|---|---|
| Width | 300 mm |
| Height | 50 mm |
Technical data
| Connection | Flat conductor |
|---|---|
| Cross-section | 105 mm² |
| Fit | 30x3,5 mm |
| Dimension | 30x3,5mm |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9674 kg CO2e / 1 Piece |
