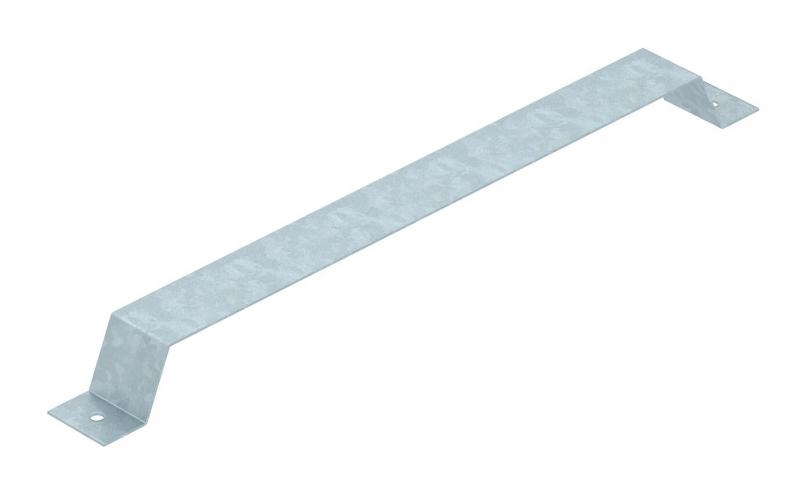

EÜK fastening clamp

EÜK fastening clamp

Type DC6025
Item no. 7428342
EAN 4012195298786
Show all variants
Item no. / Type
7428342 / DC6025

This item is a discontinued product!

Smallest selling unit: 10 piece

piece

Description

Fixing strap for three neighbouring 1-compartment PVC duct lengths of width 60 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • gas-/battery-actuated setting tool

Technical data

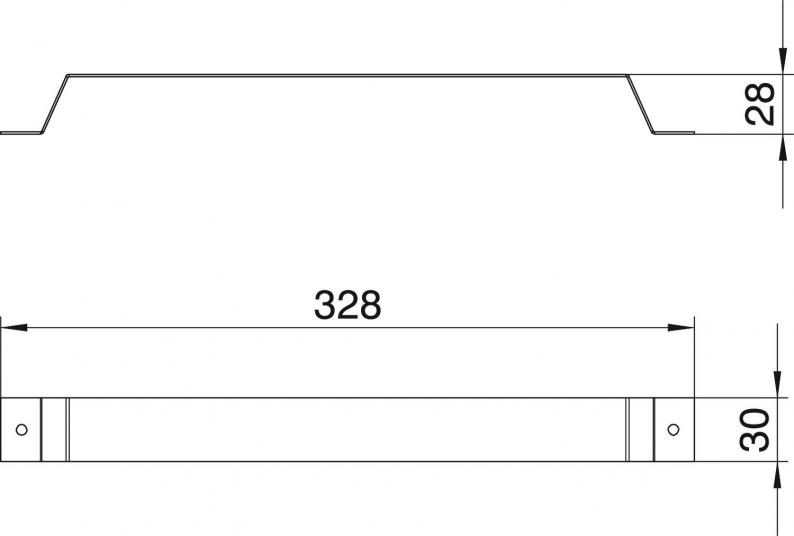

Dimensions

Length328 mm
Width30 mm
Height28 mm

Technical data

Material thickness1 mm
Trunking width, min.60 mm
Version forClamp
ROHS-conformantyes
Duct height, min.25 mm
SurfaceStrip galvanised
MaterialSteel
