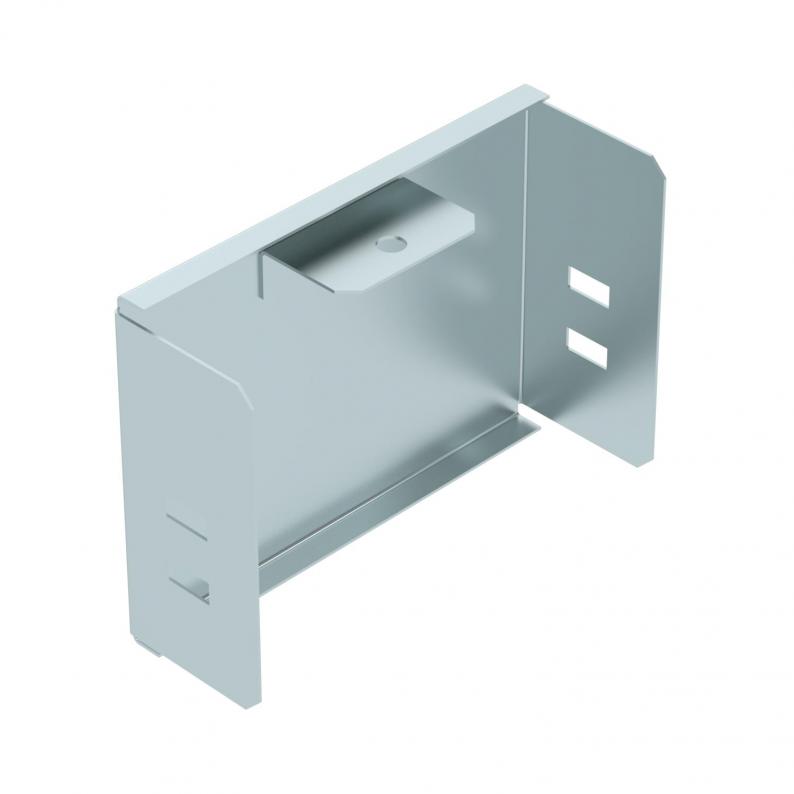

End closure plate 100 FS
Type GKS TC 115 FS
Item no. 6481295
EAN 4012195494645
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Stop-end to close cable trays of type GKS with side height 100 mm.
Including appropriate fastening material.
Technical data

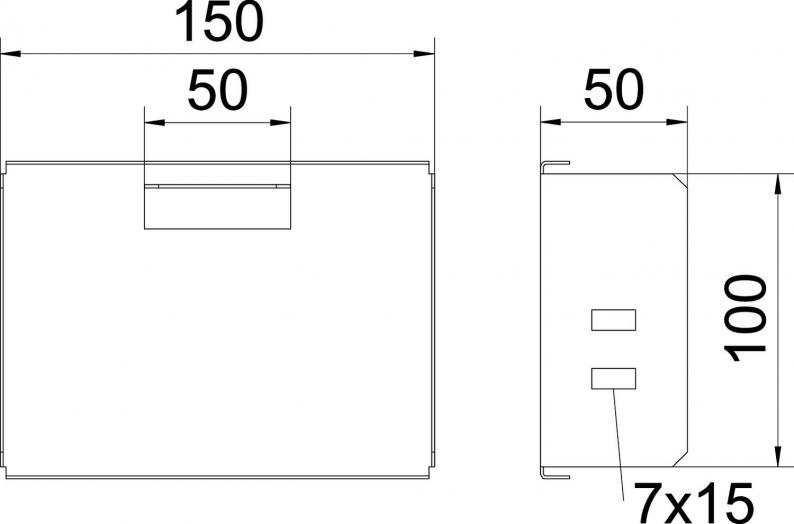

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| ROHS-conformant | yes |
| Dimension | 100x150 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Width
Item no.
GKS TC 115 FS
150
6481295
GKS TC 120 FS
200
6481297
GKS TC 130 FS
300
6481299
GKS TC 140 FS
400
6481301
GKS TC 150 FS
500
6481303
Width
GKS TC 115 FS
Item no.
6481295
Width
150
GKS TC 120 FS
Item no.
6481297
Width
200
GKS TC 130 FS
Item no.
6481299
Width
300
GKS TC 140 FS
Item no.
6481301
Width
400
GKS TC 150 FS
Item no.
6481303
Width
500
