End closure piece, duct height 25 mm
Type EC 5025
Item no. 7490200
EAN 4012196511471
Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description

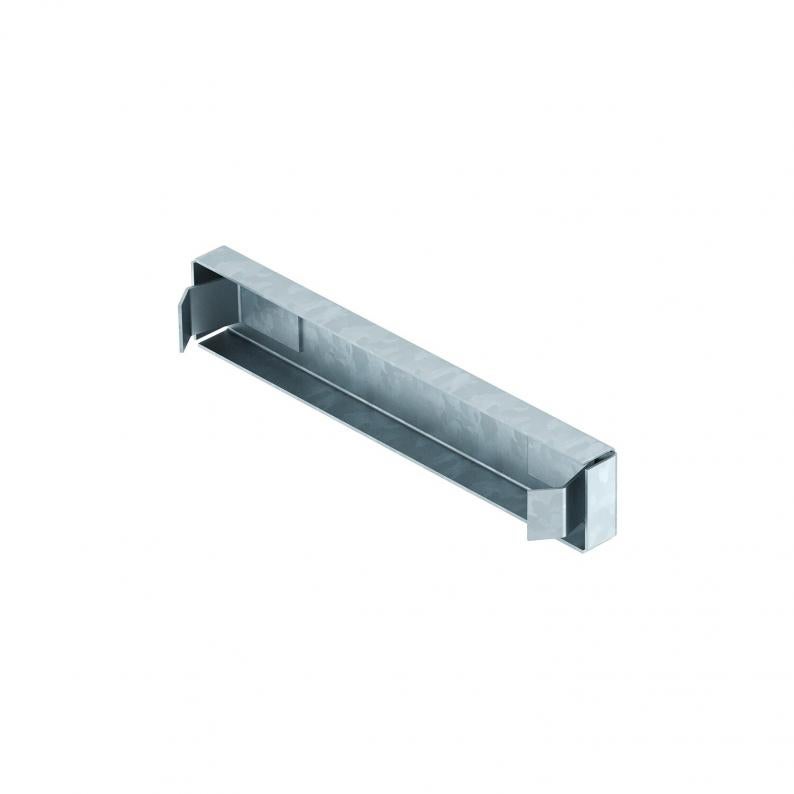

End closure for screed-covered underfloor installation ducts.
Technical data

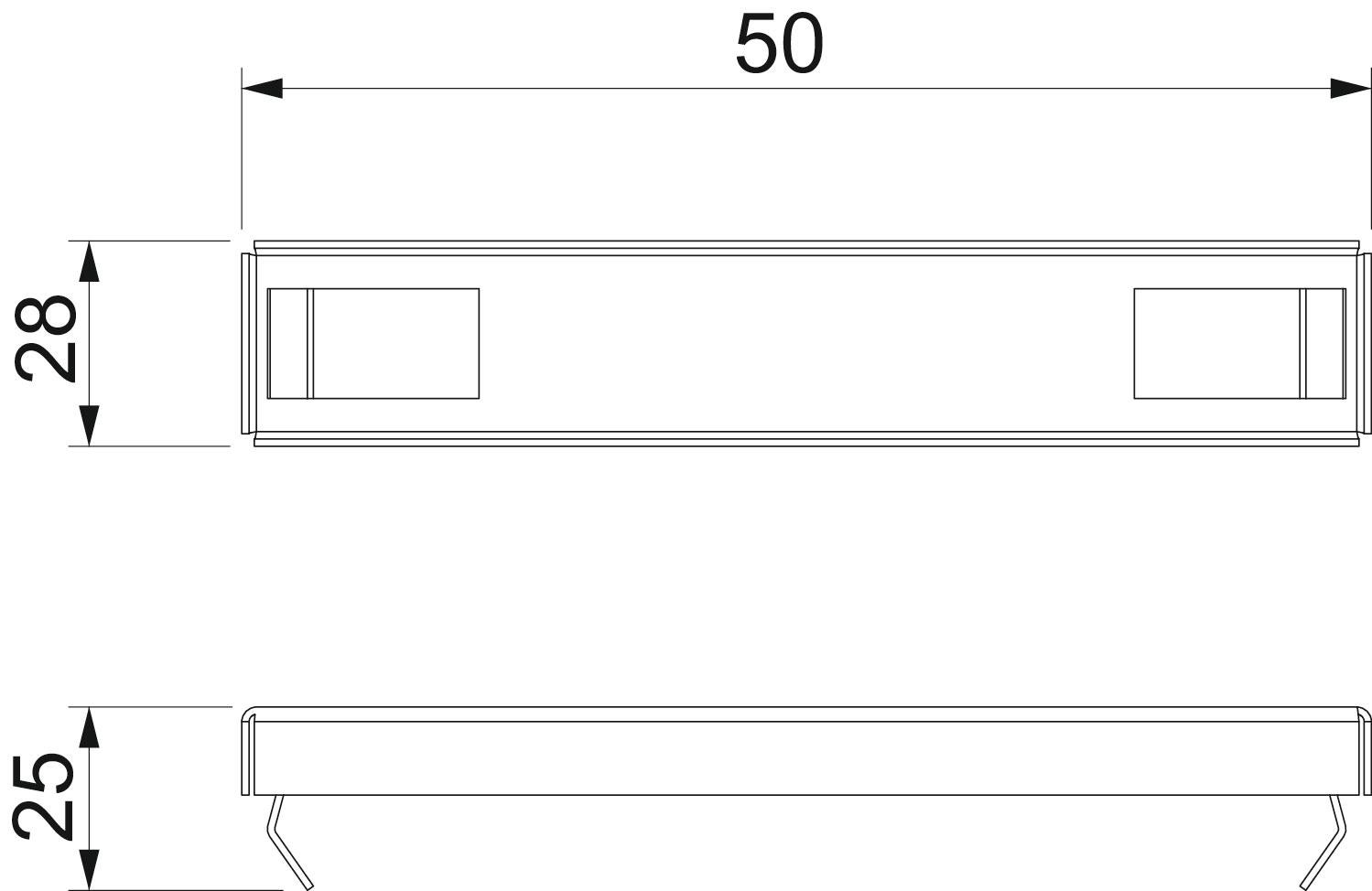

Dimensions
| Width | 50 mm |
|---|---|
| Height | 28 mm |
| Dimension h | 28 mm |
Technical data
| Trunking width, min. | 50 mm |
|---|---|
| ROHS-conformant | yes |
| Dimension | 54x28 |
| Surface | Strip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Product images (3)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
EC 5025
50
28
7490200
EC 7525
75
28
7490202
EC 10025
100
28
7490204
EC 15025
150
28
7490206
EC 20025
200
28
7490208
EC 22525
225
28
7490210
EC 25025
250
28
7490212
EC 30025
300
28
7490214
Width
EC 5025
Item no.
7490200
Width
50
Height
28
EC 7525
Item no.
7490202
Width
75
Height
28
EC 10025
Item no.
7490204
Width
100
Height
28
EC 15025
Item no.
7490206
Width
150
Height
28
EC 20025
Item no.
7490208
Width
200
Height
28
EC 22525
Item no.
7490210
Width
225
Height
28
EC 25025
Item no.
7490212
Width
250
Height
28
EC 30025
Item no.
7490214
Width
300
Height
28
