Empty housing X 06

Empty housing X 06

Type X06C SW
|
Item no. 2005602
|
EAN 4012196580712
Show all variants
Item no. / Type
Clear internal dimensions
Colour
Protection rating
IP67

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

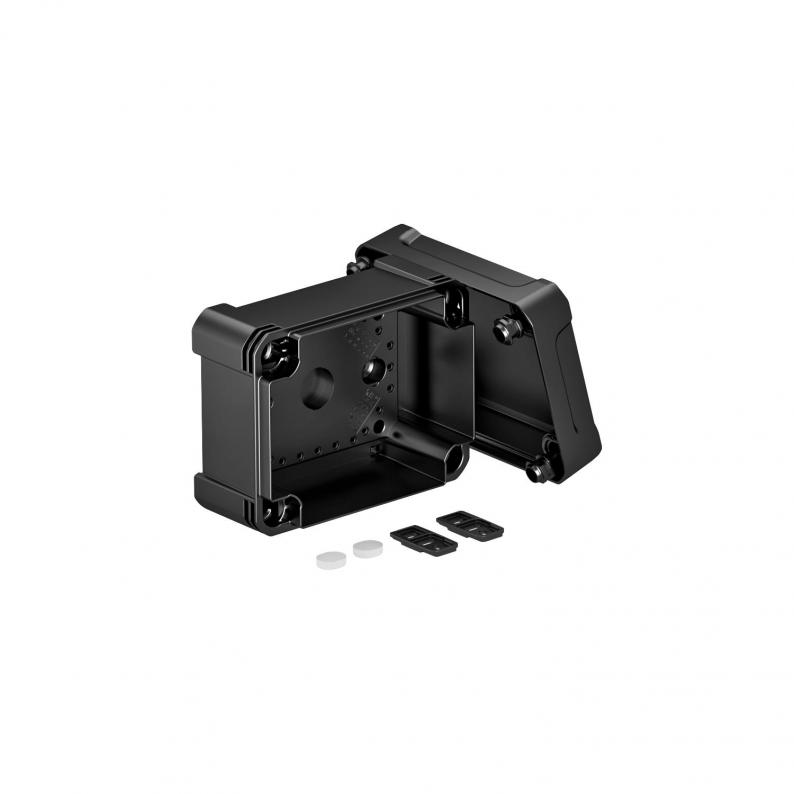

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Österreichischer Verband für Elektrotechnik, Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • CO₂ footprint (PCF)

Technical data

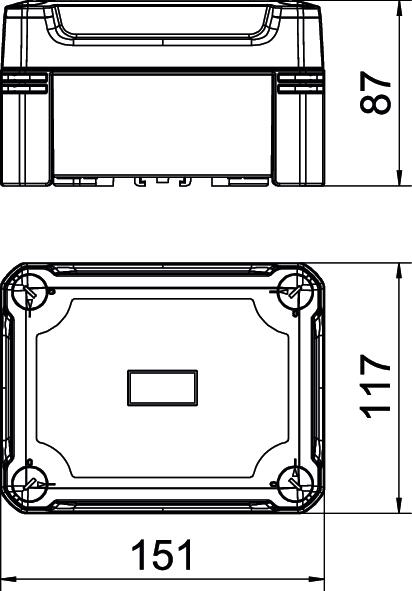

Dimensions

Length151 mm
Width117 mm
Height86 mm
Clear internal dimensions137x105x68 mm

Technical data

Protection ratingIP67
with lidyes
Extension optionno
Cover fasteningScrewed
ShapeRectangular
Weatherproofyes
Protection rating IK codeIK09
Suitable for outdoor useyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension150x116x86
MaterialPolycarbonate
ColourGraphite black; RAL 9011

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate1,3201 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
X06C LGR
Item no.
2005462
Clear internal dimensions
137x105x68
Protection rating
IP67
Colour
Light grey; RAL 7035
X06C LGR-TR
Item no.
2005532
Clear internal dimensions
137x105x68
Protection rating
IP67
Colour
grey / transparent
X06C SW
Item no.
2005602
Clear internal dimensions
137x105x68
Protection rating
IP67
Colour
Graphite black; RAL 9011
