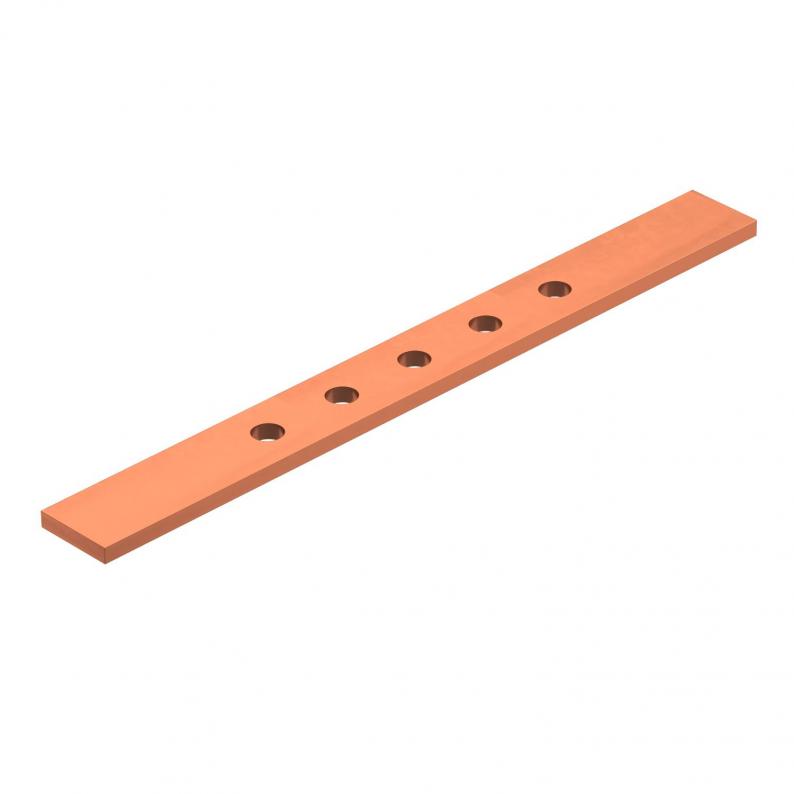

Earthing rail for UF separation point
Type 5700 CIP SM EB 5
Item no. 5106052
EAN 4012196686759
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm
• With 5 connection holes
• Diameter of drill hole 11 mm
Technical data

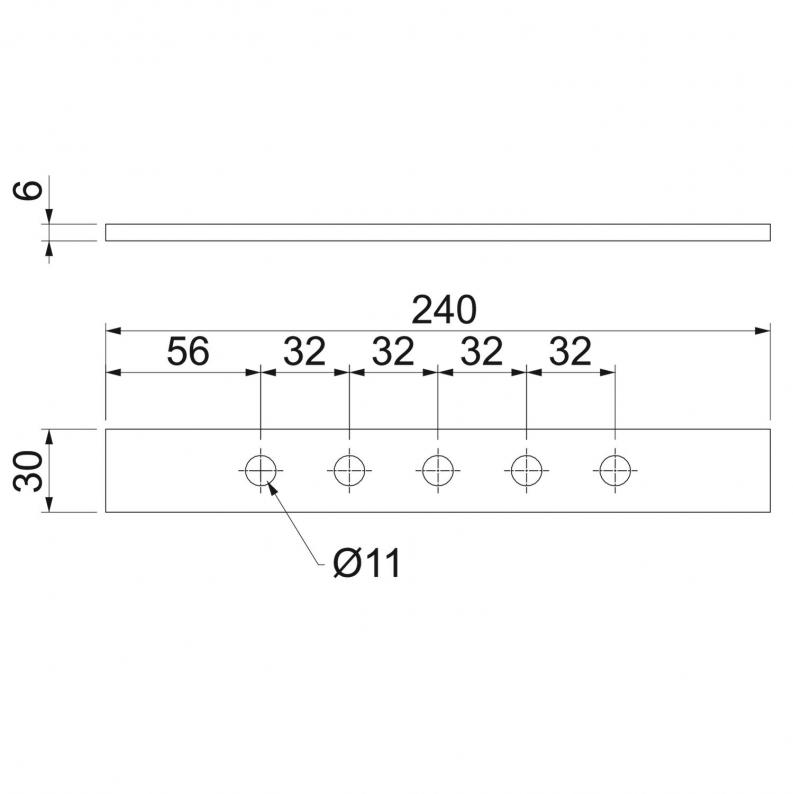

Dimensions
| Width | 30 mm |
|---|---|
| Height | 6 mm |
Technical data
| ROHS-conformant | yes |
|---|---|
| Fit | M10 mm |
| Dimension | 25x3x285 |
| Material | Copper |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Material
Item no.
5700 CIP SM EB 5
Copper
5106052
5700 PIP SM EB 7
Copper
5106053
5700 PIP SM EB 5
Copper
5106072
5700 CIP SM EB 7
Copper
5106073
5700 CIP SM EB 5
Item no.
5106052
Material
Copper
5700 PIP SM EB 7
Item no.
5106053
Material
Copper
5700 PIP SM EB 5
Item no.
5106072
Material
Copper
5700 CIP SM EB 7
Item no.
5106073
Material
Copper
