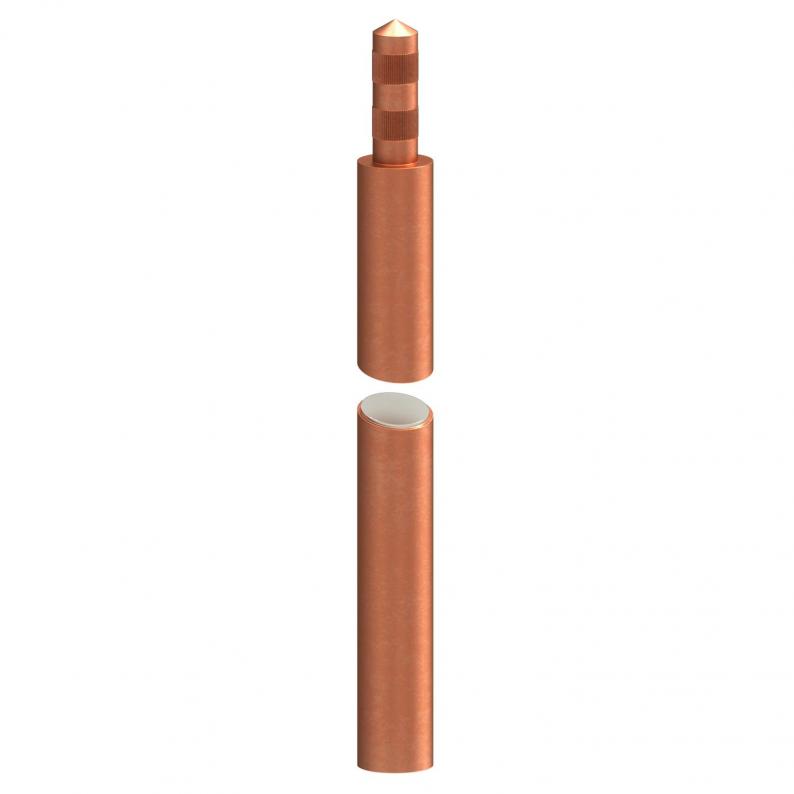

Earth rod for standard applications, copper-coated
Type 219 20 CU
|Item no. 5450020
|EAN 4012196497485
Item no. / Type
5450020 / 219 20 CU
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description
• High corrosion resistance
• Copper coating thickness: Min. 250 μm
• With peg and bore for linking together
• Round pegs with two knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA
• Copper coating thickness: Min. 250 μm
• With peg and bore for linking together
• Round pegs with two knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA
Technical data

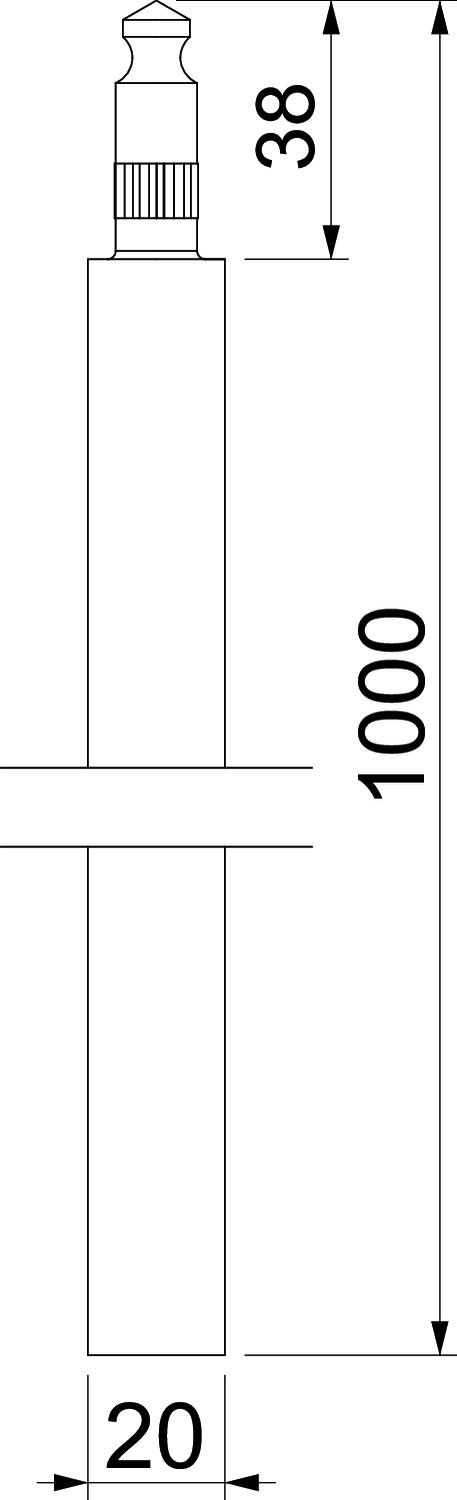

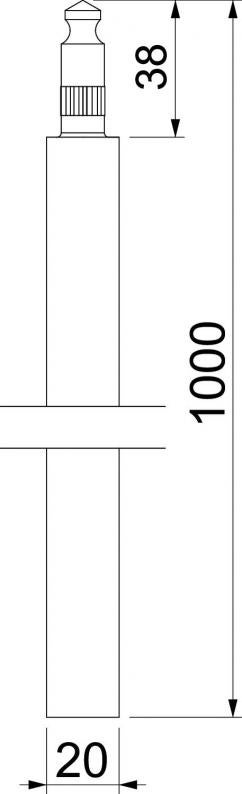

Dimensions
| Length | 1000 mm |
|---|
Technical data
| Profile type | Round D=20 mm |
|---|---|
| External diameter | 20 mm |
| Lightning current carrying capacity | H/100 kA |
| Dimension | 1m |
| Surface | Copper-plated |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
External diameter
Material
Item no.
219 20 CU
1000
20
Steel
5450020
219 20 CU
Item no.
5450020
Length
1000
External diameter
20
Material
Steel
