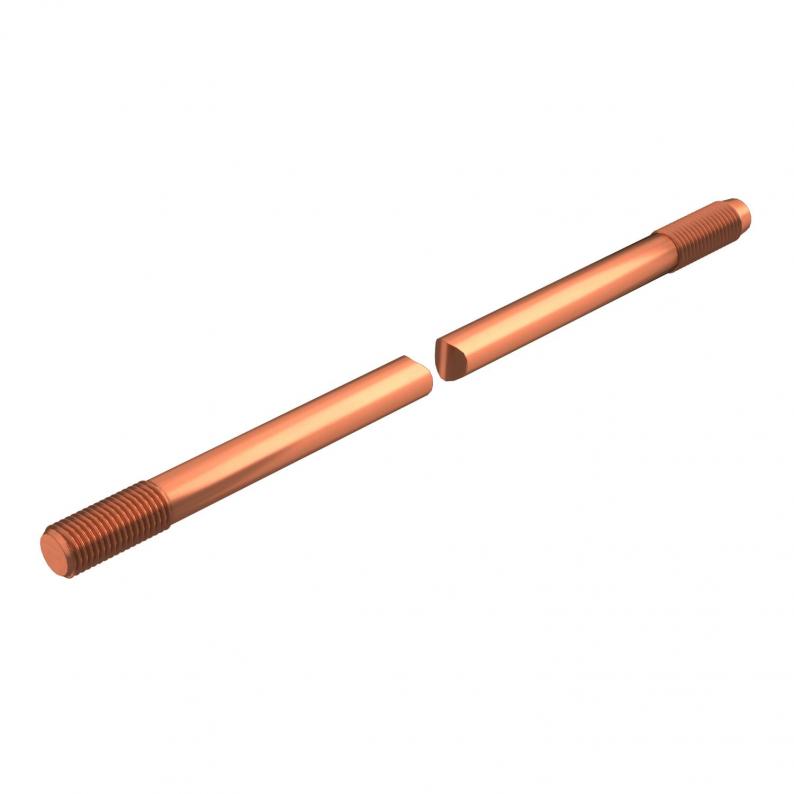

Earth rod BS with copper sheath
Type 17 1200 CCER
|Item no. 5450011
|EAN 4012196879434
Item no. / Type
Length
External diameter
Material
Smallest selling unit: 1 piece
1piece
piece
Description
• Made of steel with a copper jacket of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data

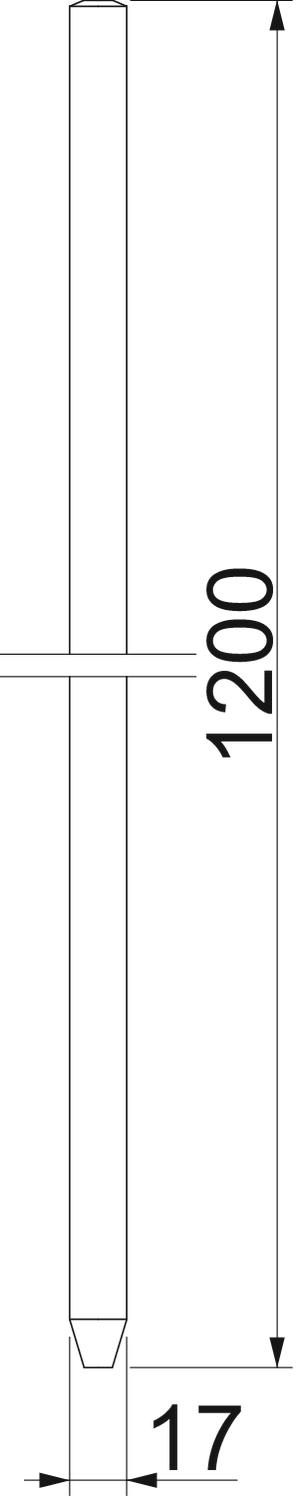

Dimensions
| Length | 1200 mm |
|---|---|
| Dimension D | 17 mm |
Technical data
| Profile type | Miscellaneous |
|---|---|
| External diameter | 17 mm |
| Dimension | 3/4" 17.5mm dia |
| Surface | Copper-plated |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
External diameter
Material
Item no.
16 1200 CBER
1200
16
Steel
5450150
16 1500 CBER
1500
16
Steel
5450152
16 1800 CBER
1800
16
Steel
5450154
16 3000 CBER
3000
16
Steel
5450156
20 1200 CBER
1200
20
Steel
5450160
20 1500 CBER
1500
20
Steel
5450162
20 1800 CBER
1800
20
Steel
5450164
20 3000 CBER
3000
20
Steel
5450166
16 1200 SER
1200
16
Copper
5450180
16 1500 SER
1500
16
Copper
5450182
16 1800 SER
1800
16
Copper
5450184
16 3000 SER
3000
16
Copper
5450186
20 1200 SER
1200
20
Copper
5450190
20 1500 SER
1500
20
Copper
5450192
20 1800 SER
1800
20
Copper
5450194
20 3000 SER
3000
20
Copper
5450196
25 3000 CBER
3000
25
Steel
5450168
17 1200 CCER
1200
17
Steel
5450011
25 2000 CCER
2000
25
Steel
5450026
14 3000 SS316
3000
14,2
Stainless steel
5450200
17 3000 SS316
3000
17
Stainless steel
5450202
20 3000 SS316
3000
20
Stainless steel
5450204
25 3000 SS316
3000
25
Stainless steel
5450206
14 3000 CBER 250
3000
14,2
Steel
5450210
17 3000 CBER 250
3000
17
Steel
5450212
20 3000 CBER 250
3000
20
Steel
5450214
