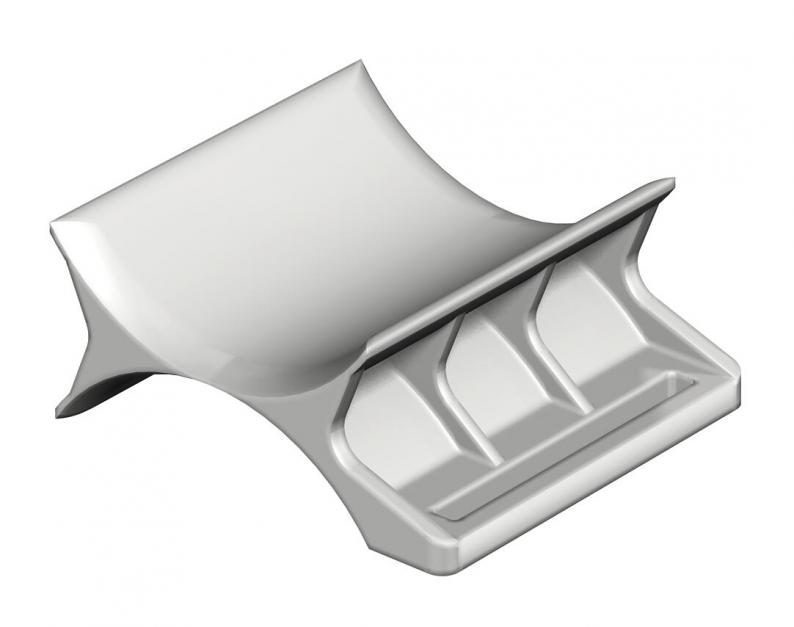

Double trough, plastic
Type 2058 2 16 LGR
|Item no. 1196162
|EAN 4012195082637
Item no. / Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Clamp clips allows both cables and pipes to be fastened to profile rails. The clamp clips are hooked into the appropriate slot widths of the profile rails and the component to be fastened is pressed onto the profile rail with the pressure trough of the clamp clip and held in place.
Technical data

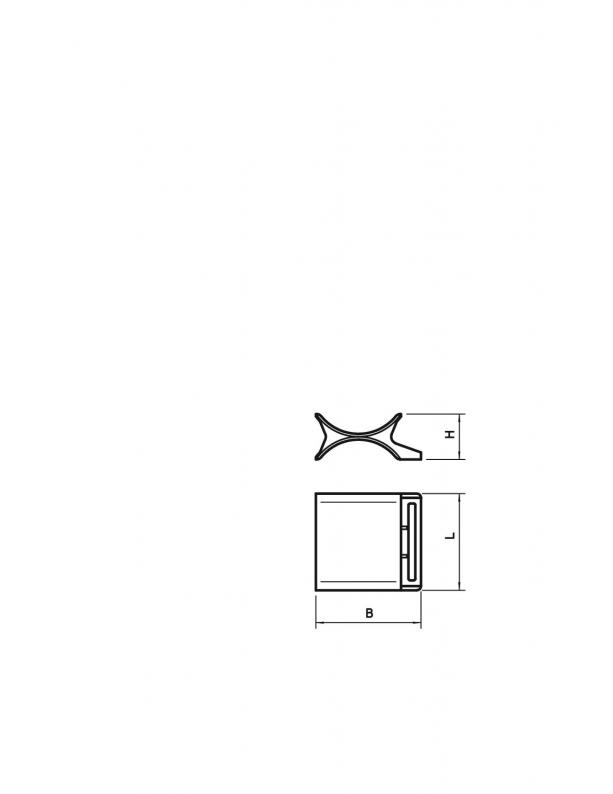

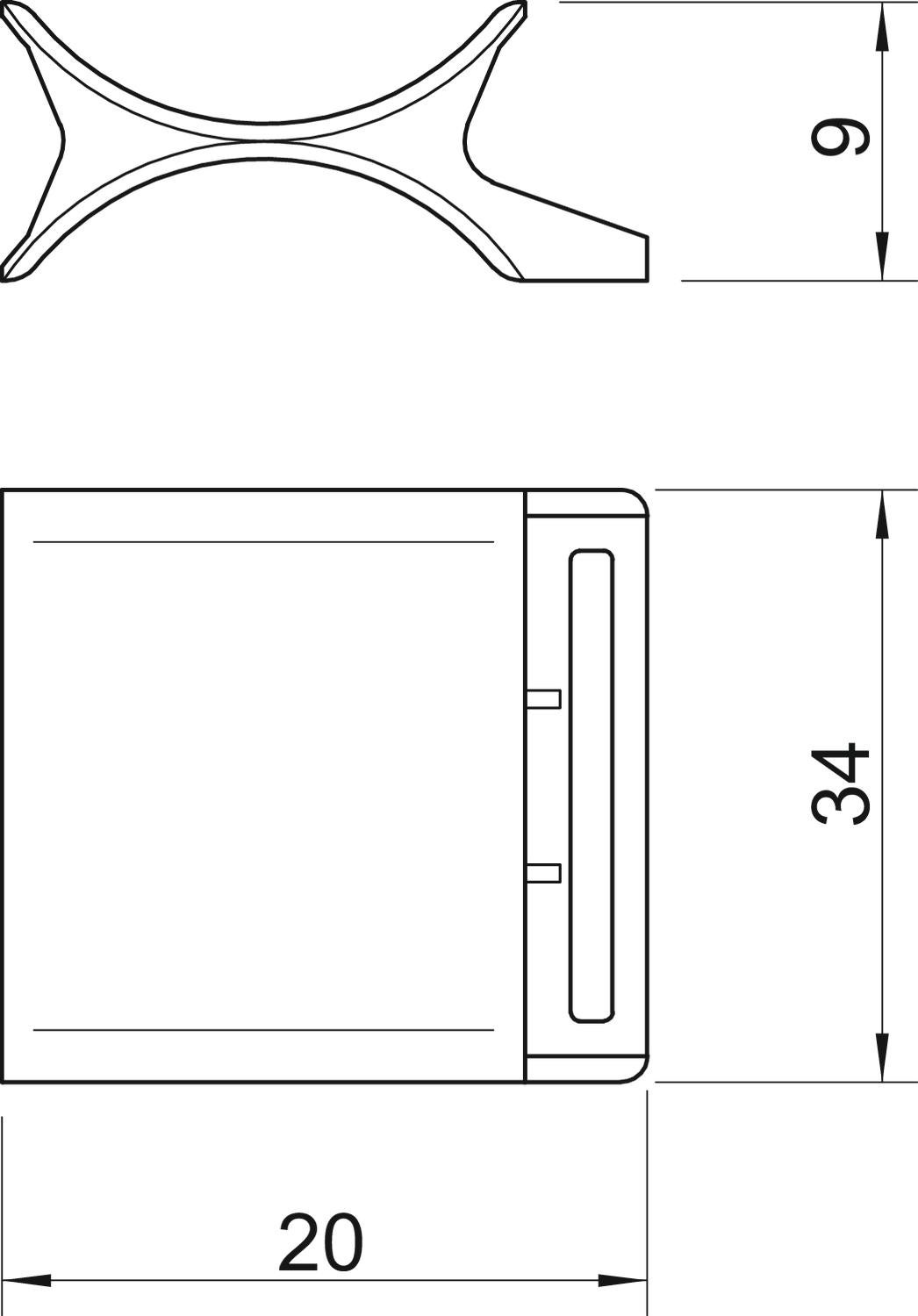

Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension B | 20 mm |
| Dimension H | 9 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Counter-trough/clip version | Double trough |
| Suitable for max. cable diameter | 16 mm |
| Clamping range D, min. | 12 mm |
| Clamping range D, max. | 16 mm |
| Dimension | 12-16mm |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0074 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
Item no.
2058 2 16 LGR
34
20
9
12
16
1196162
2058 2 34 LGR
34
37
16
28
34
1196340
2058 2 40 LGR
34
42
18
34
40
1196405
2058 2 46 LGR
40
47,5
20
40
46
1196464
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
2058 2 16 LGR
Item no.
1196162
Dimension L
34
Dimension B
20
Dimension H
9
Clamping range D, min.
12
Clamping range D, max.
16
2058 2 34 LGR
Item no.
1196340
Dimension L
34
Dimension B
37
Dimension H
16
Clamping range D, min.
28
Clamping range D, max.
34
2058 2 40 LGR
Item no.
1196405
Dimension L
34
Dimension B
42
Dimension H
18
Clamping range D, min.
34
Clamping range D, max.
40
2058 2 46 LGR
Item no.
1196464
Dimension L
40
Dimension B
47,5
Dimension H
20
Clamping range D, min.
40
Clamping range D, max.
46
