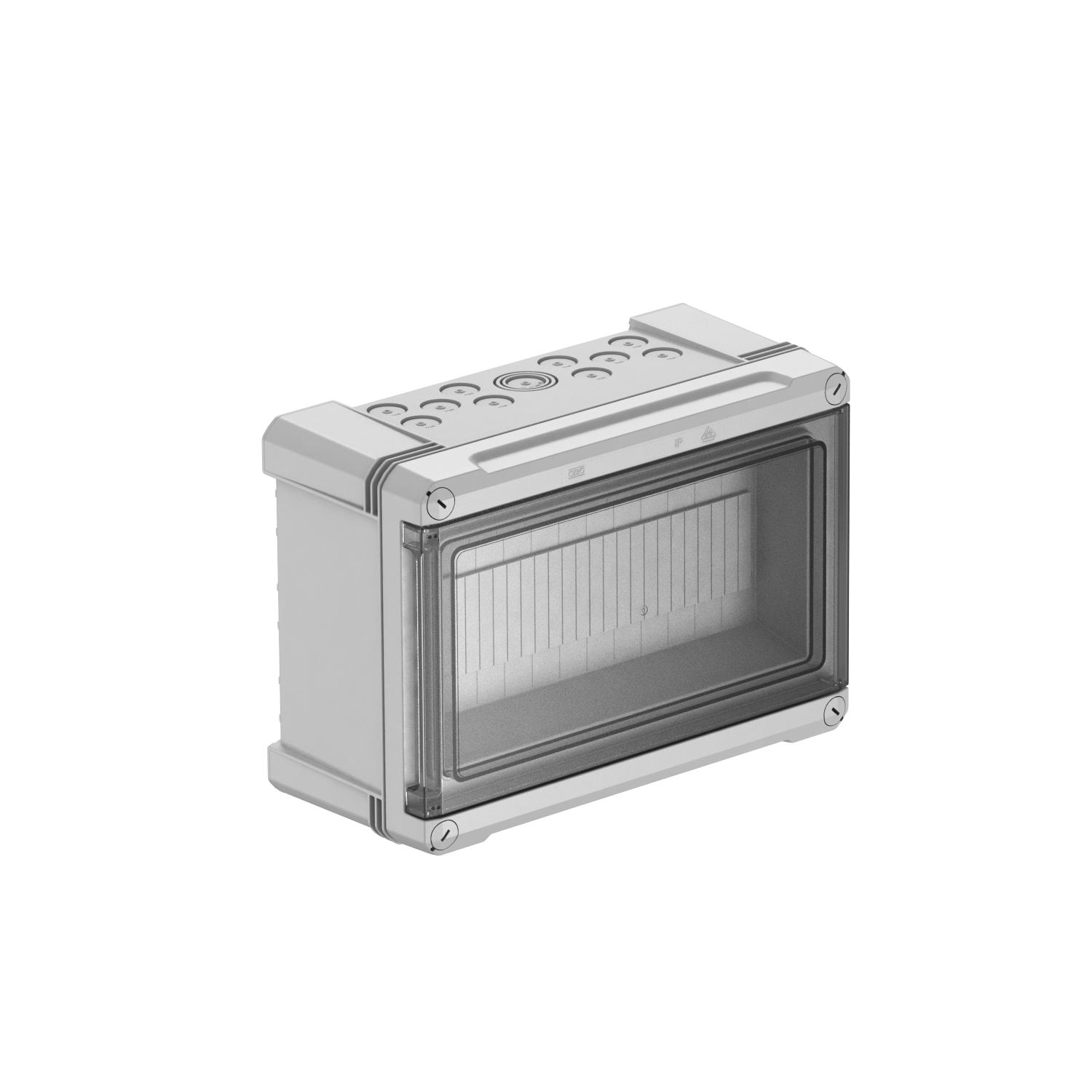

Distribution box, 12 division units, empty, polycarbonate

Distribution box, 12 division units, empty, polycarbonate

Type SDB 12L PC
|
Item no. 2008872
|
EAN 4012196465811
Show all variants
Item no. / Type
2008872 / SDB 12L PC

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

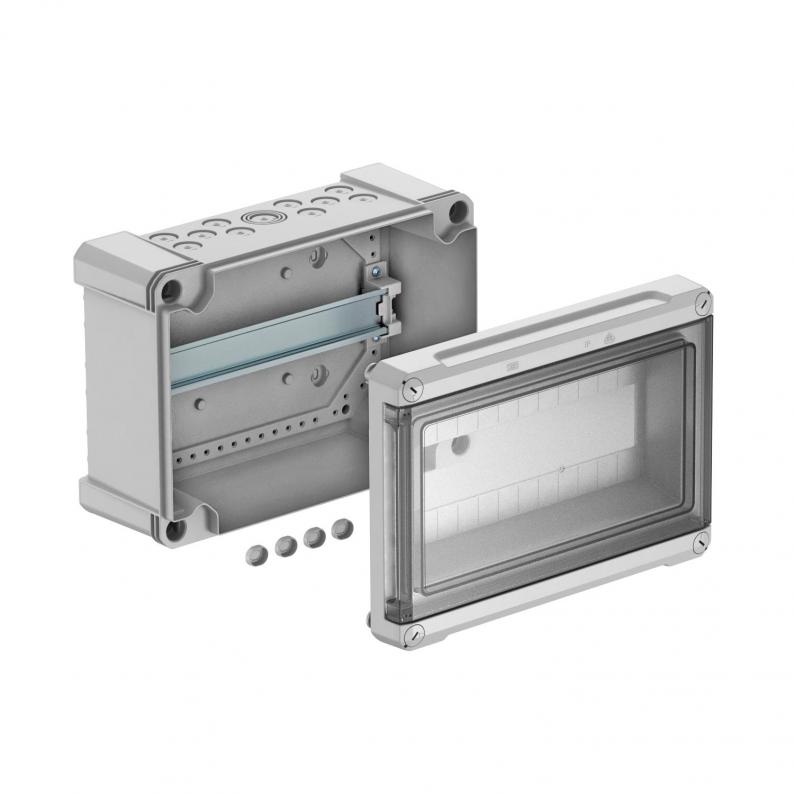

Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.

- Protection-insulated for a maximum of 12 division units

- 11 break-out openings each of Ø 20 mm at the top and bottom

- 1 combination break-out opening each of Ø 20/25/32 mm at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 25.1 W
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • UV-resistant
  • Flame resistant 850 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M20 entry
  • M25 entry
  • M32 entry
  • Thread metric
  • Nominal voltage 400 V
  • IK Code 08
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

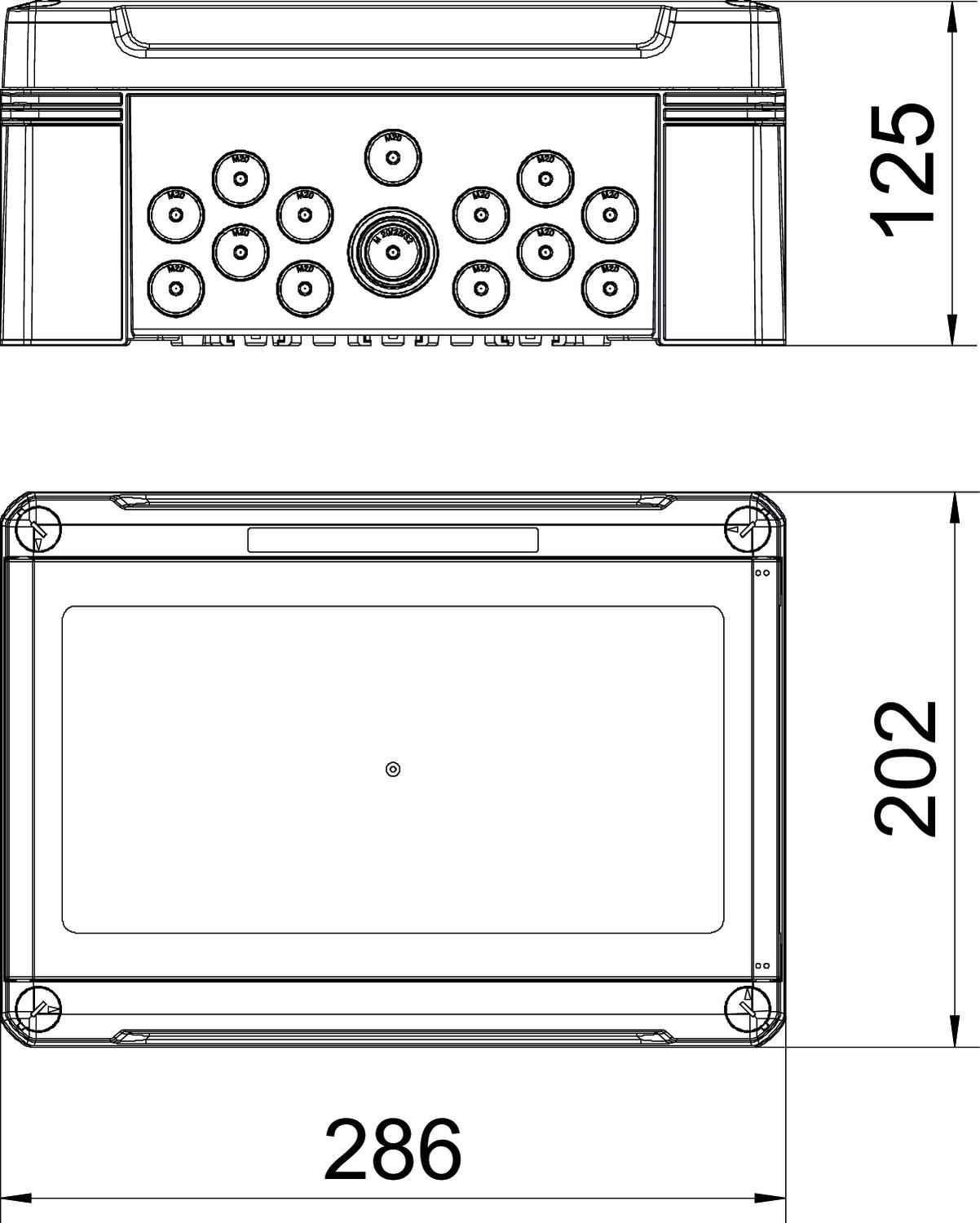

Dimensions

Length286 mm
Width202 mm
Height126 mm

Technical data

Number of rows1
Transparent lidyes
DIN railyes
With mounting plateno
Width in divisional units12
Protection ratingIP66
Nominal current63 A
Nominal voltage400 V
Extension optionyes
EMC versionno
Protection rating IK codeIK08
With lockno
Mounting type, consumer unitsStructure
Cover typeCover
Version, small distributor coverWith cut-out
Dimension286x202x125
MaterialPolycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate4,8499 kg CO2e / 1 Piece
